Eskina Frame 75 – Double Spot Path Light – 240v IP65 -Anthracite Aluminium 3000k/4000k 27w 1100 – 1200 Lm
Original price was: $306.96.$96.99Current price is: $96.99.
- Free and fast shipping worldwide
- Experience the Best Quality
- Online assistance, always at your service.
- Shop with confidence, we guarantee quality.
Eskina Frame 75 – Double Spot Path Light – 240v IP65 -Anthracite Aluminium 3000k/4000k 27w 1100 – 1200 lm

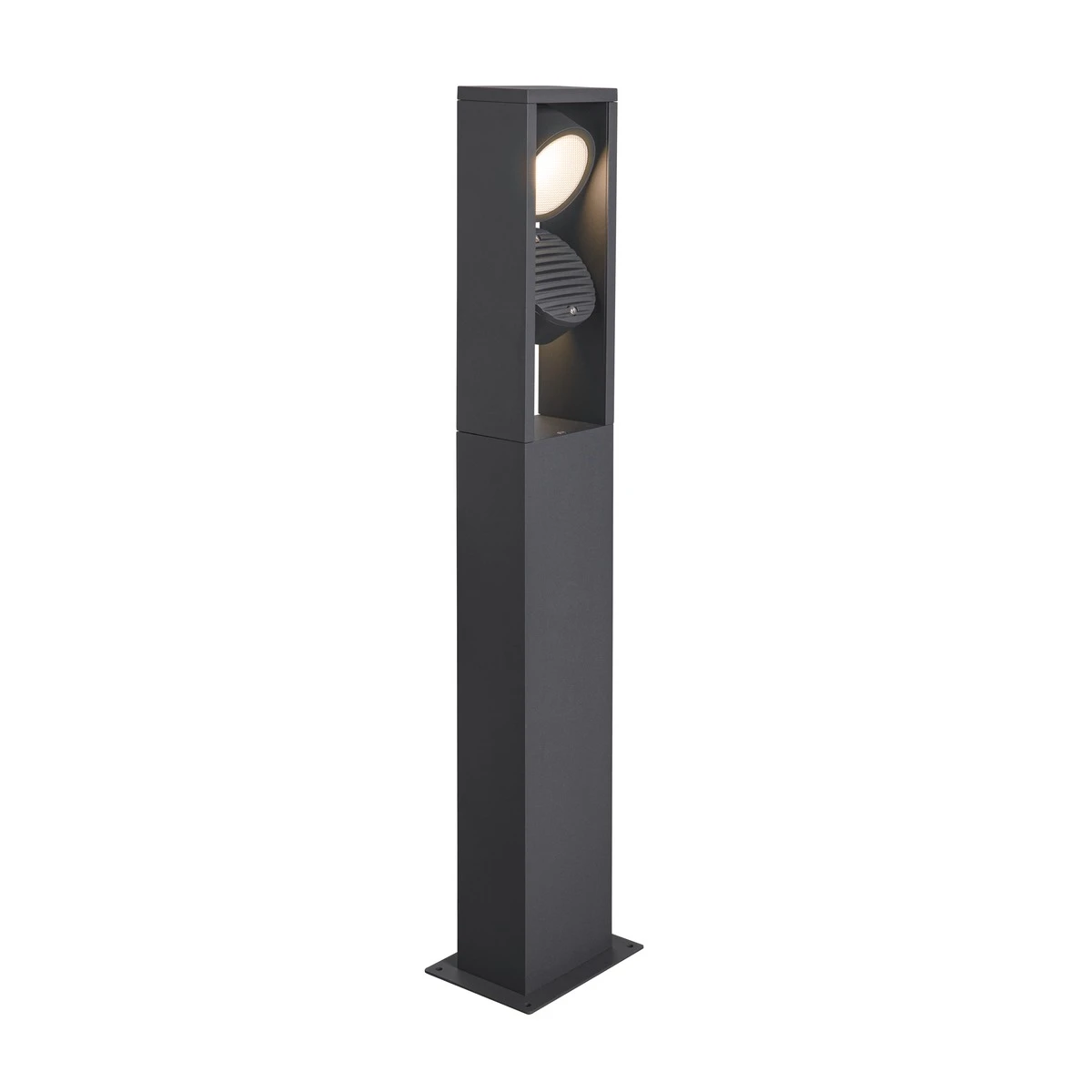

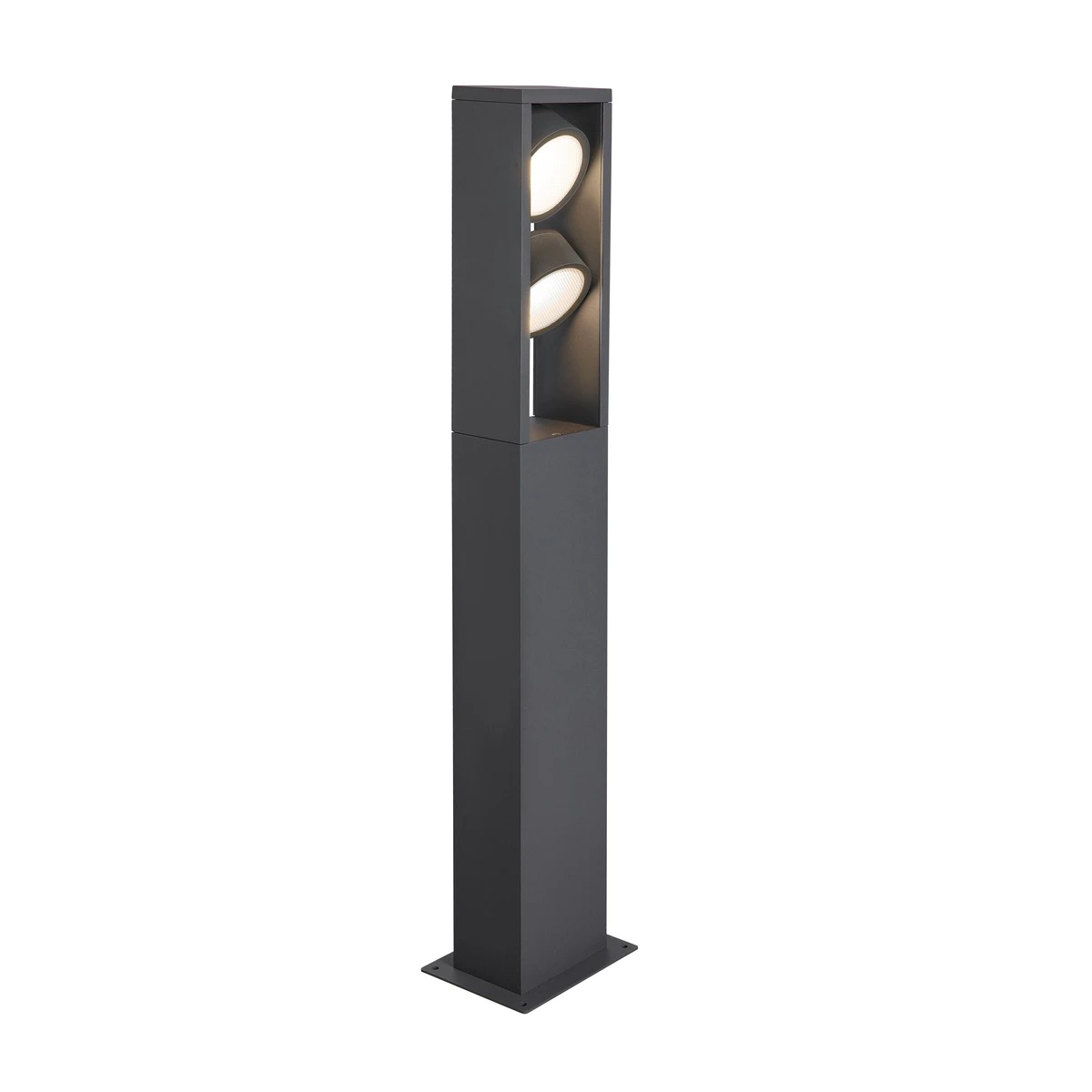

Just added to our range of What’s New is this delightful twin spotlight adjustable bollard in Matt Anthracite. There are two other Eskina bollards and they are codes 1002907 and 1002906. It is rated as IP65 So complete
protection against ingress of dust and projection against low pressure water jets from any angle.
It comes with a 5 year warranty and the fitting is fitted with a sealed 27w switchable warm white 3000k to 4000k cool white
LED module which gives out between 1100 to 1200 lumens depending upon the colour temperature setting you choose during
installation.. So approximately a 30w incandescent bulb in each direction.

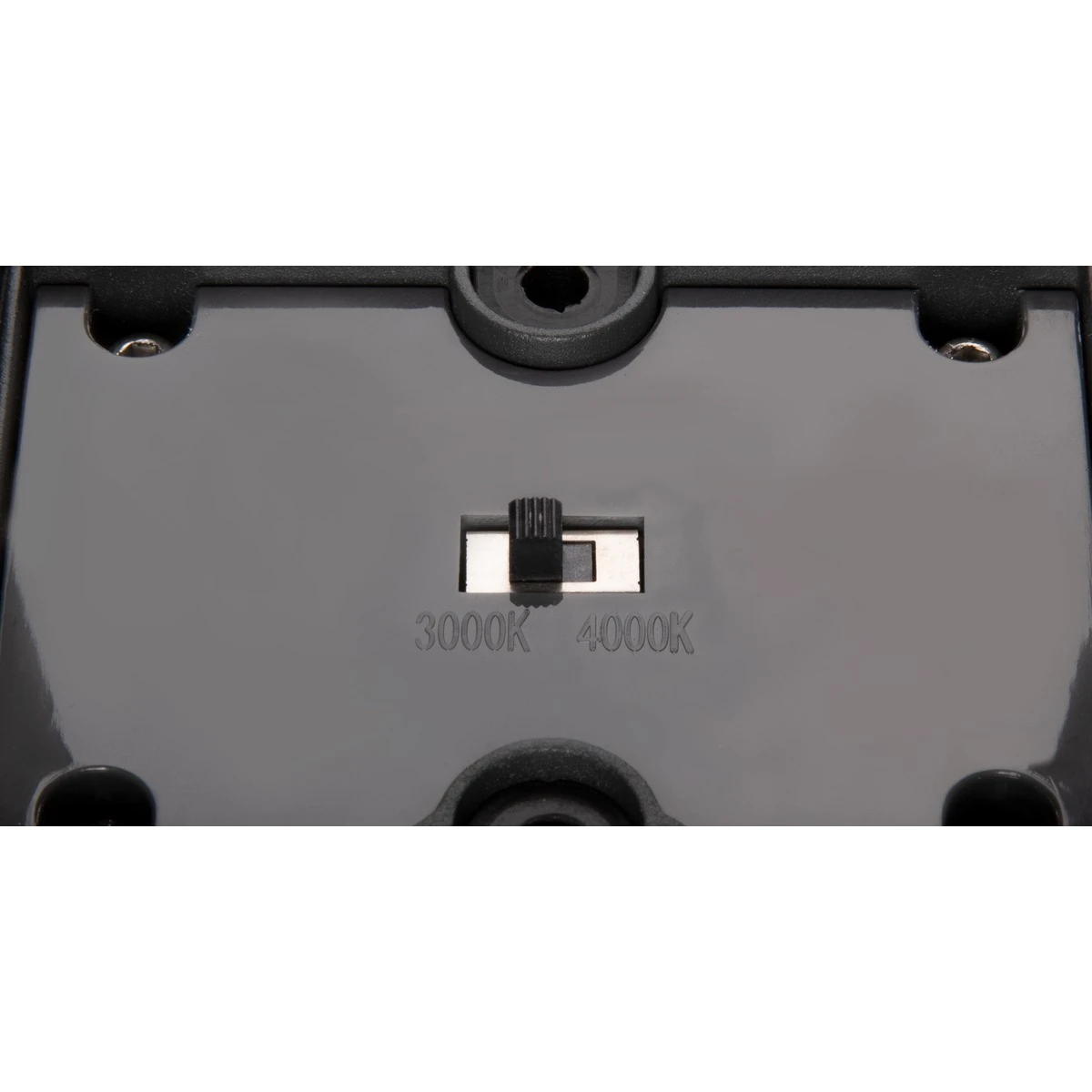

The beauty of this fitting is that the fitting gives you a choice of colour temperature to suit your outside lighting colour
temperature requirements and 320 ° tilt and a 100° beam angle which allows you to point each of the spots where you want them and to give wide coverage.
The voltage on this fitting is from 220-240v 50/60Hz with internal LED 700mA.
Lamp colour (Kelvins)
2,700 kelvins or 2700k which is in the warm colour spectrum and a lamp with 5,000 kelvins or 5000k would be at the
very cold white spectrum.
Installation – See attached Instructions & Data Sheets
and diagram supplied.
section but in simple terms the IP rating is appropriate to each light fitting and its intended application
and is therefore fit for purpose. Water ingress is the enemy for outdoor lighting and the products supplied are only
as good as the installation as the weakest point is always cable joints. All joints must be made 100% water tight
and this can be done using IP68 inline connectors, waterproof junction boxes which are then filled with a resin or
gel mix.
All exterior lights must be installed by a certified NIC EIC electrician and should be signed off by an electrician with
Part P certification. all cable joints must be 100% watertight. There are a selection of waterproof jointing kits
and boxes available on this web site although your electrician will probably supply these.
H07RN-F H07 3 Core Rubber Sheathed Mains Cable 1.5mm is recommended but do not use PVC flex cable as this can cause poor connections for the cable glands/joints and will lead to capillary action.

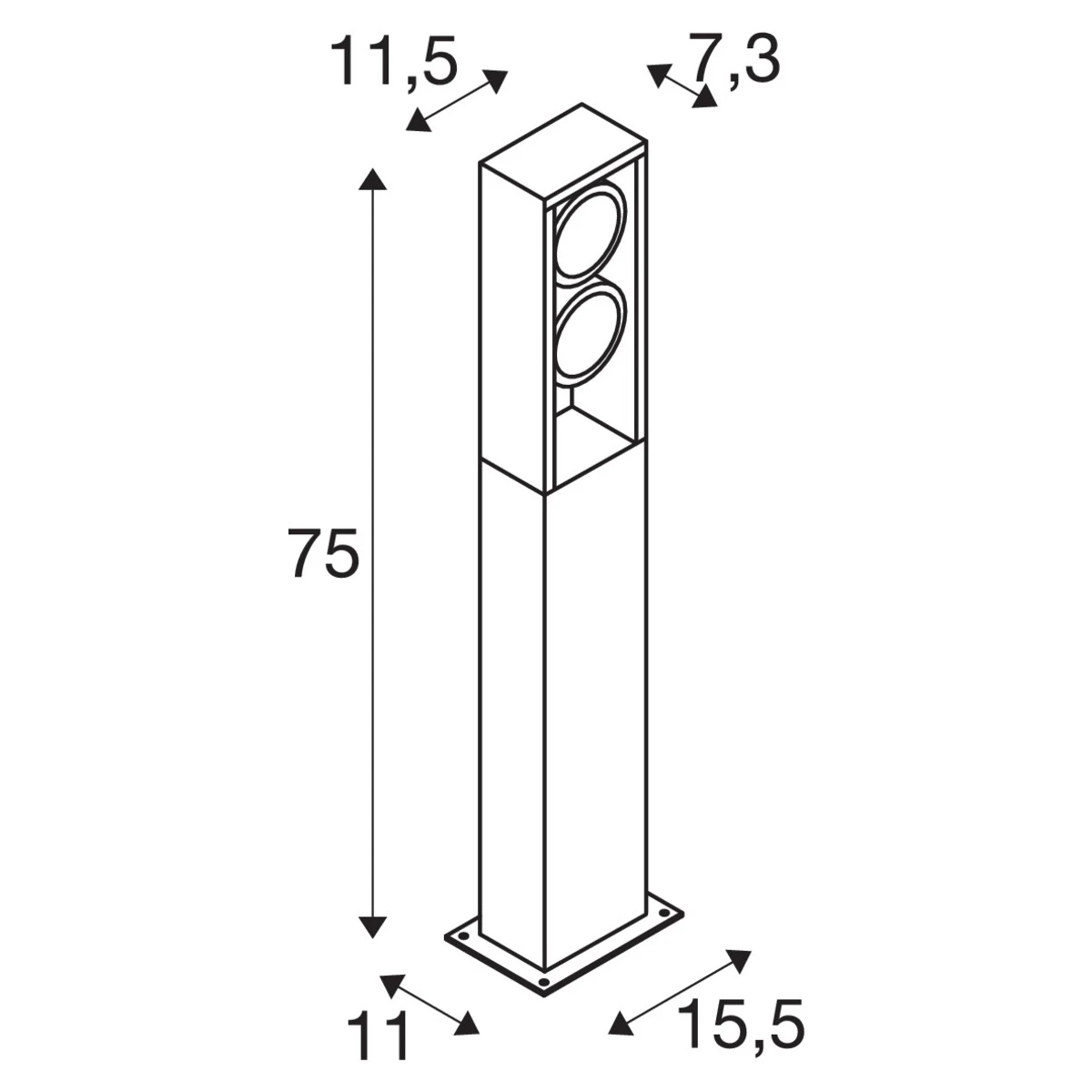

| base length | 15.5 cm |
|---|---|
| Bollard Height | 750mm |
| Bulb Type Bulb type used for fittings | Integral LED |
| Colour Colour of fitting | Anthracite |
| Depth | 11 cm |
| Height | 75 cm |
| IP Rating Ingress Protection - a two digit code representing water resistance. | IP65 |
| Colour Temperature | 3000k – 4000k |
| Lumens | 1200 lm |
| Materials | Aluminium |
| Voltage Voltage of fitting, Light Bulb or Transformer | 240v |
| Warranty | 5 Years |
| Watts | 27W |
| Width | 11.5 cm |
