Duomarka – Outdoor Recessed Light – 12v Natural Copper MR16 IP67 – 180 Degree

The DuoMarka is a contemporary and elegant recessed light suitable for illuminating steps and outlining other areas in
the garden, mounted in the ground, walls or decking. It is made from Natural Copper.

This fitting is available in Stainless Steel and Brass too in both 12v and 240v along with the 240v version in Copper.
Codes, LLDUOCP-240v , LLDUOBR-12P, LLDUOBR-240v,  LLDUOSS3-240V,  and LLDUOSS-12P3.

This VERSA plug & play 12v recessed light couldn’t be simpler to install. The 3m cable supplied is capped with a 2 pin
plug which simply plugs directly into a transformer (or splitter if multiple fittings are installed), the transformer
plugs into a mains socket and it is ready to go.

Please note: This fitting must be installed with the mounting sleeve and additional rubber seal. If the sleeving and seal is not used, the Guarantee will be void. Not for use in areas prone to water-logging or flooding.

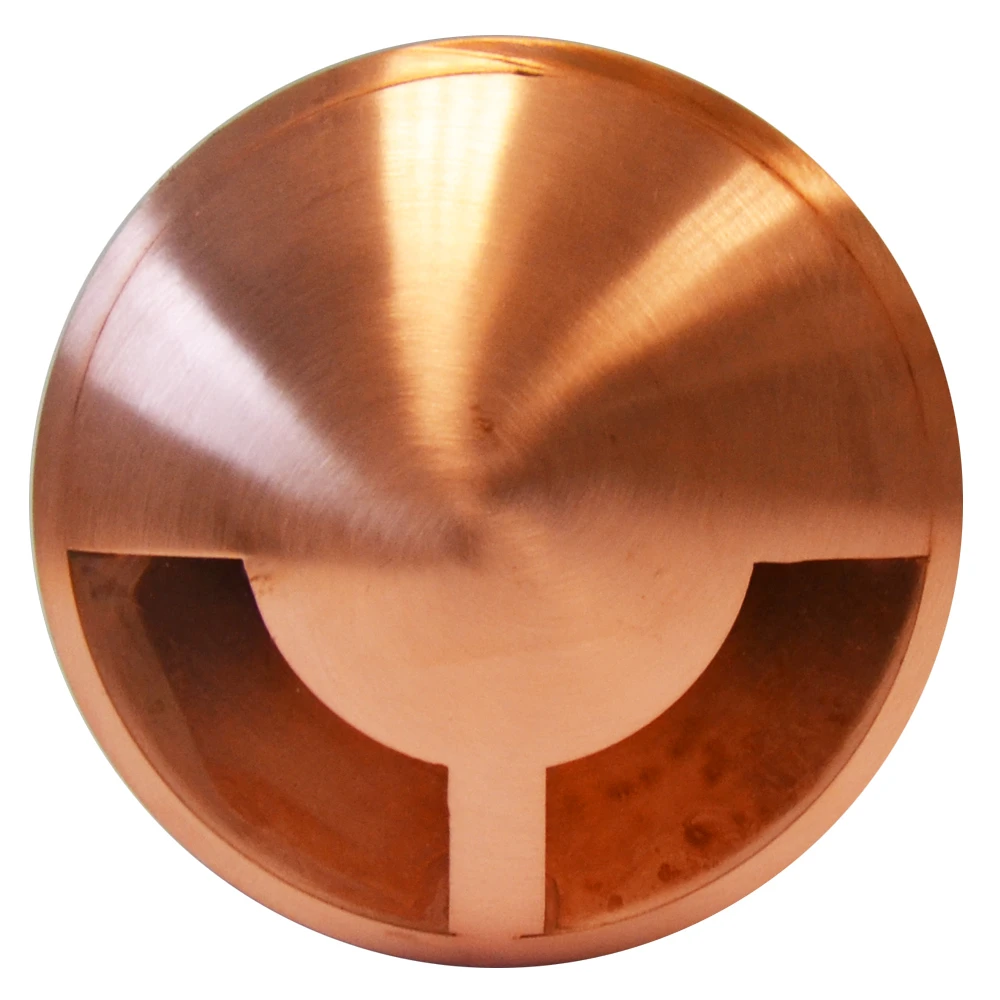

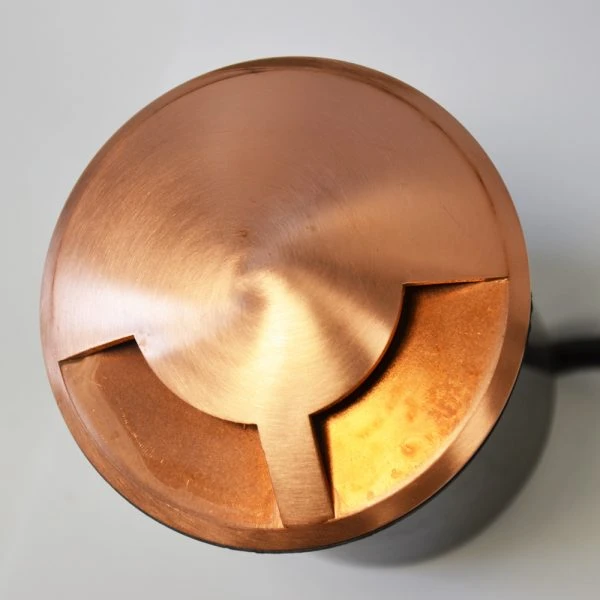

The DuoMarka has two conical sections on one side of the top of the fitting, which allows a 180º diffusion of light through
a clear lens, without glare. The slightly domed surface makes this the ideal shape for mounting on decking, a patio or
any other areas where a walk over facility is required. The front bezel is threaded, and attaches to a copper body by
screwing together with no external screws or fixings which results in a neater overall finish. This also means no tools
are required to change the MR16 lamp (LED recommended).

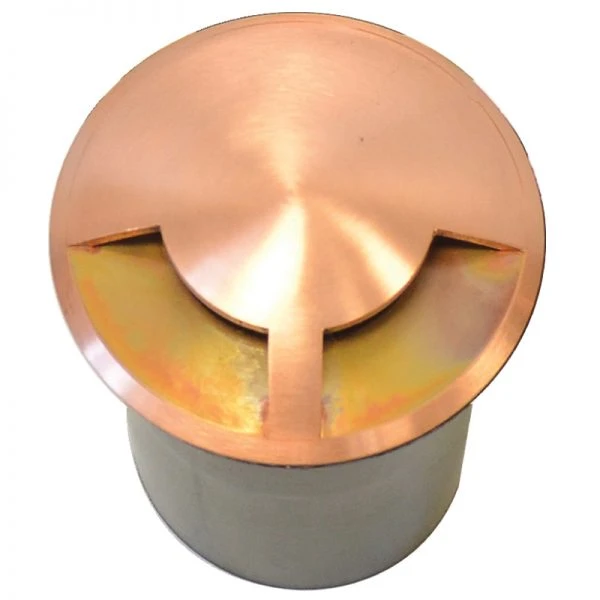

The robust black plastic sleeve is supplied to protect the copper and assist with installation. The sleeving should be built
into the wall during construction or retrofitted into a drilled out hole. The main part of the light then pushes into
the tube, where it is held firmly in place, leaving only the streamline front dome on show.

Installation 12v

Choosing the style of a product is only part of the equation you must also think of where that product will be used and how
it will be installed. All exterior lighting products on our web site have an IP rating appropriate to each light fitting
and its intended application and is therefore fit for purpose. Water ingress is the enemy for outdoor lighting and the
products supplied are only as good as the installation. The weakest point is always cable joints. All joints must be
made 100% watertight and this can be done using IP68 cable connectors and/or waterproof junction boxes which are then
filled with a re-enterable liquid gel mix.
