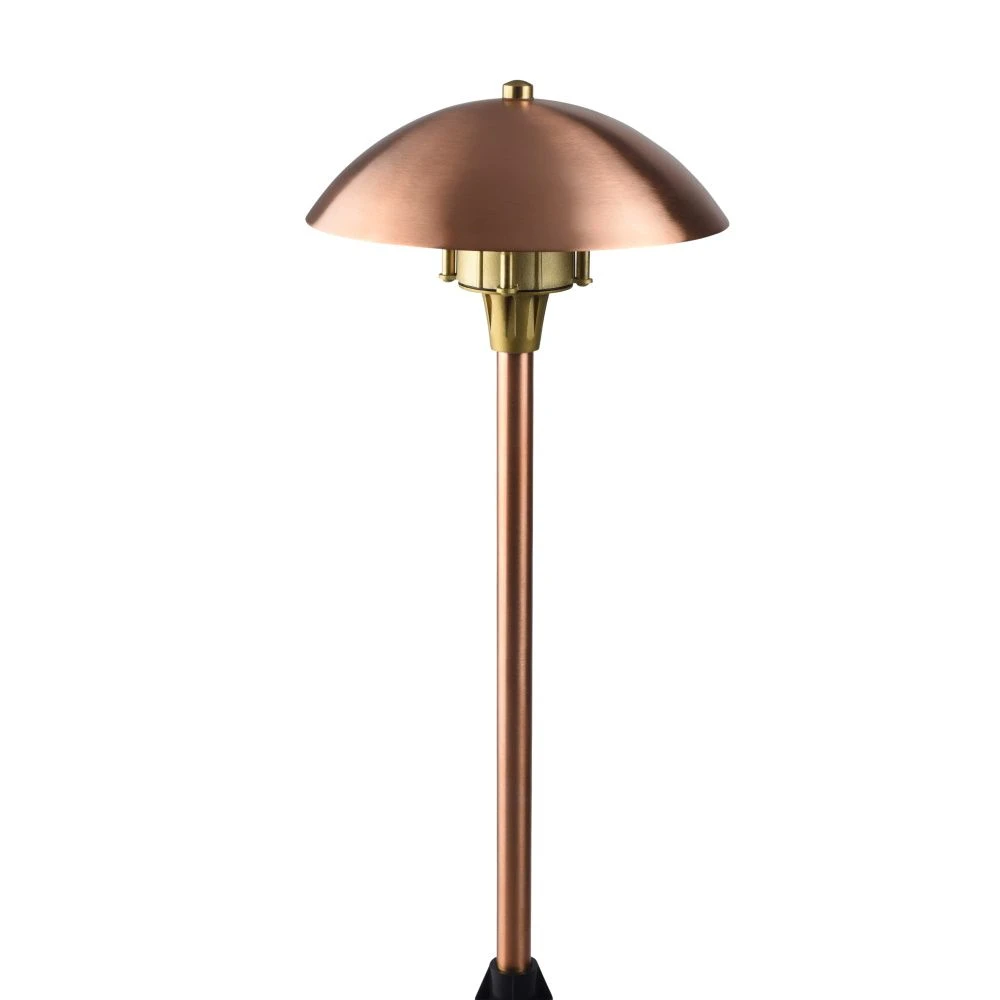

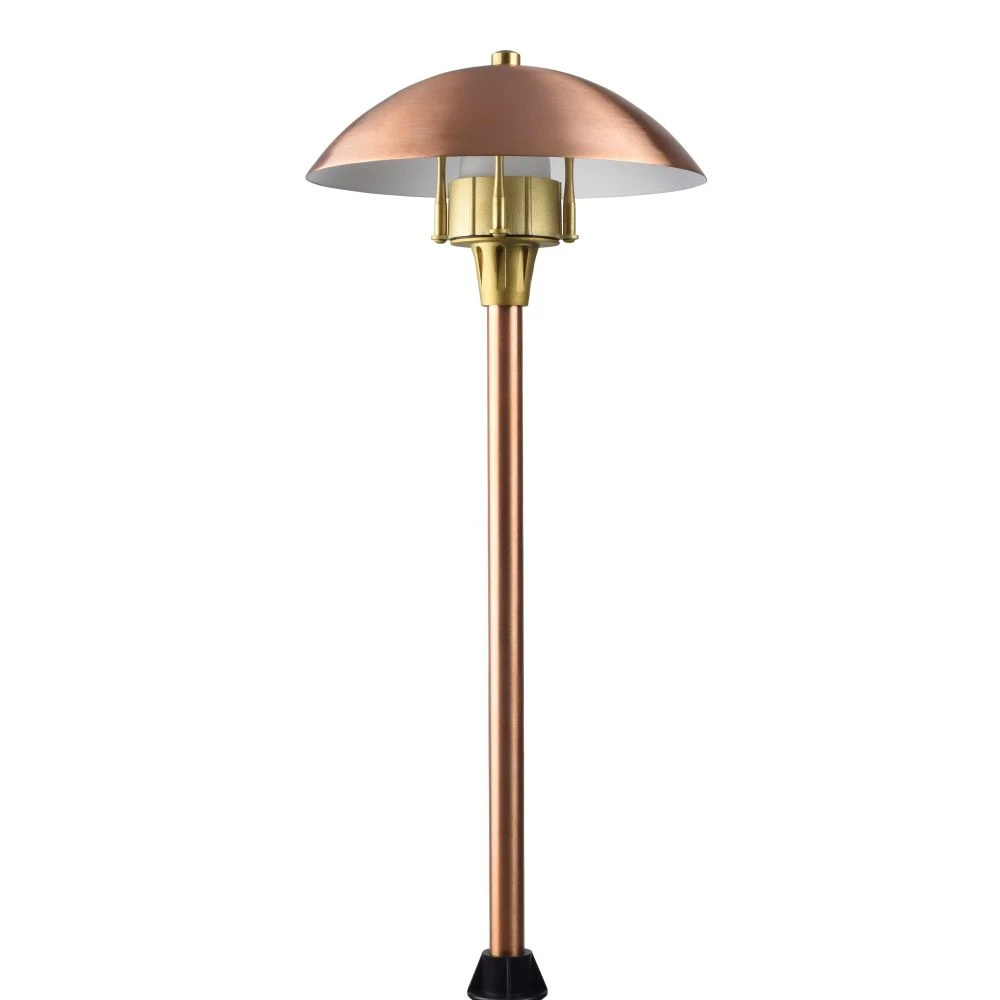

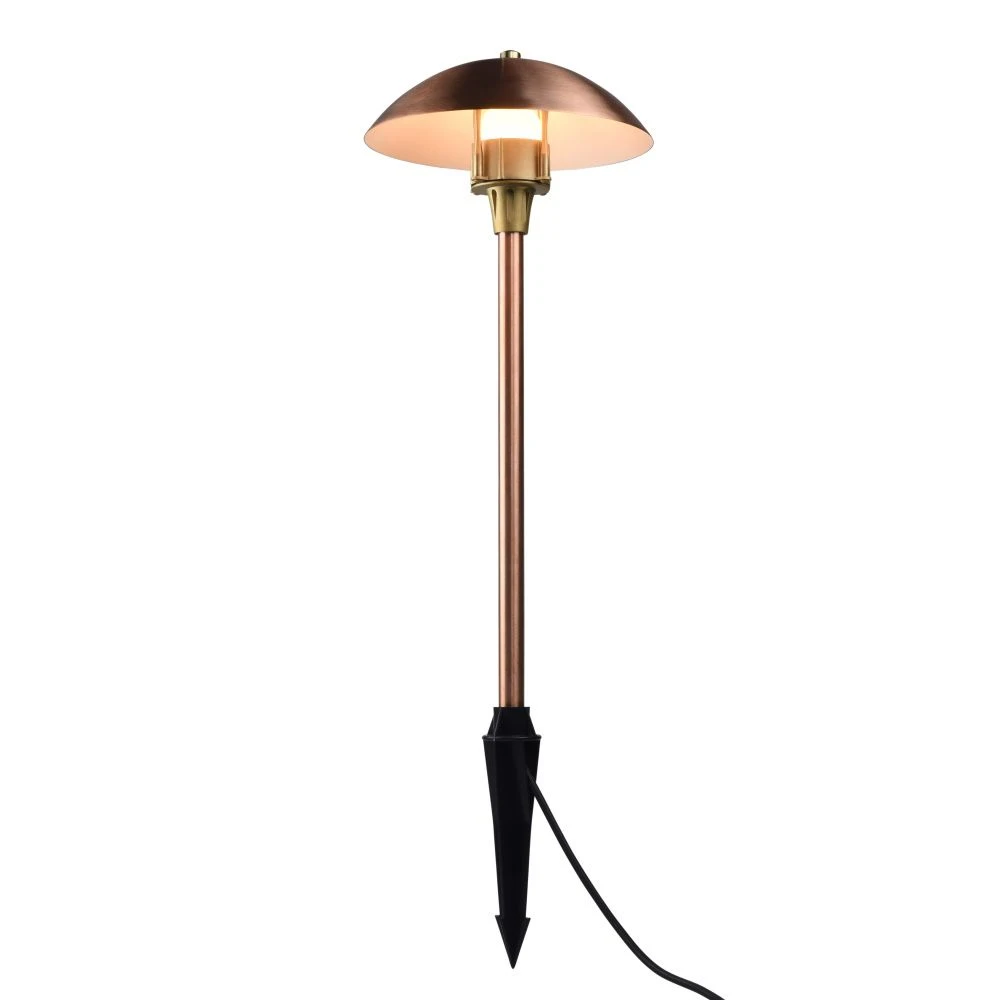

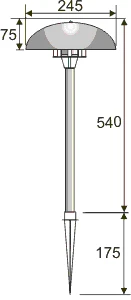

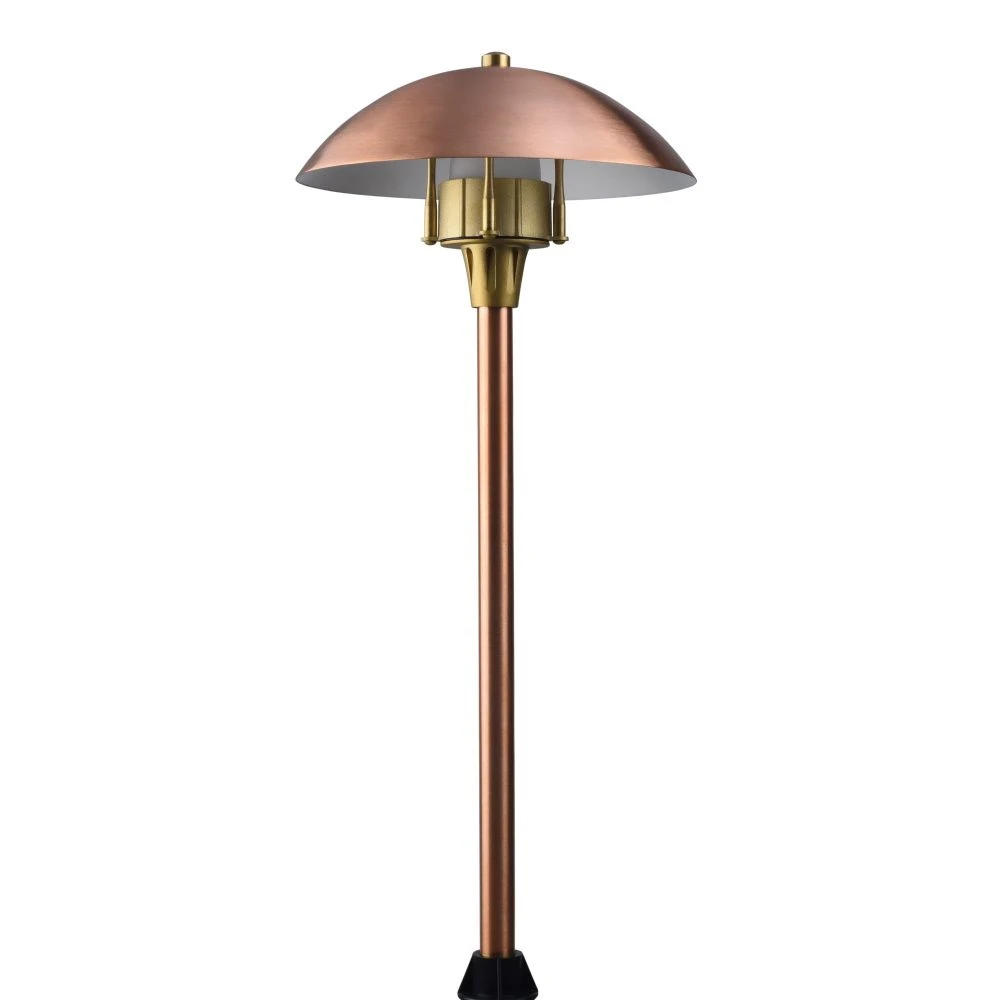

Domo II – 12v – Copper IP56 G4 – Spike Spreadlight – 540mm Height 245mm Dome

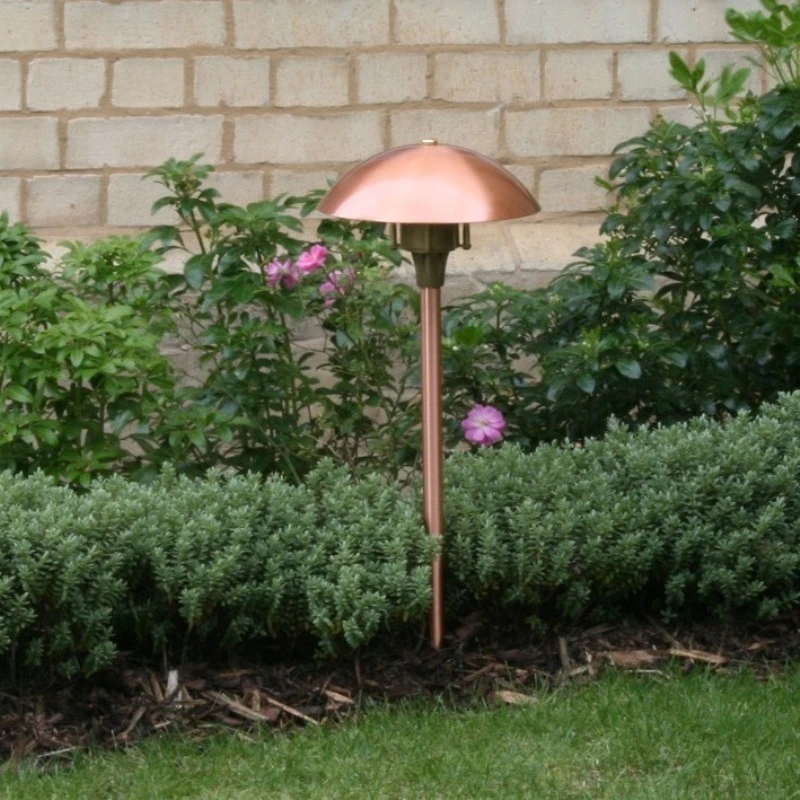

The Domo ll spreadlight provide a soft pool of light for the illumination of paths or steps and around the terrace, drive
and lawn.
Natural copper is often the preferred choice for traditional garden styles and natural settings as it always looks more natural
than other metal of painted finishes.
These 12v spreadlights hide the light source under the shade for low glare lighting.

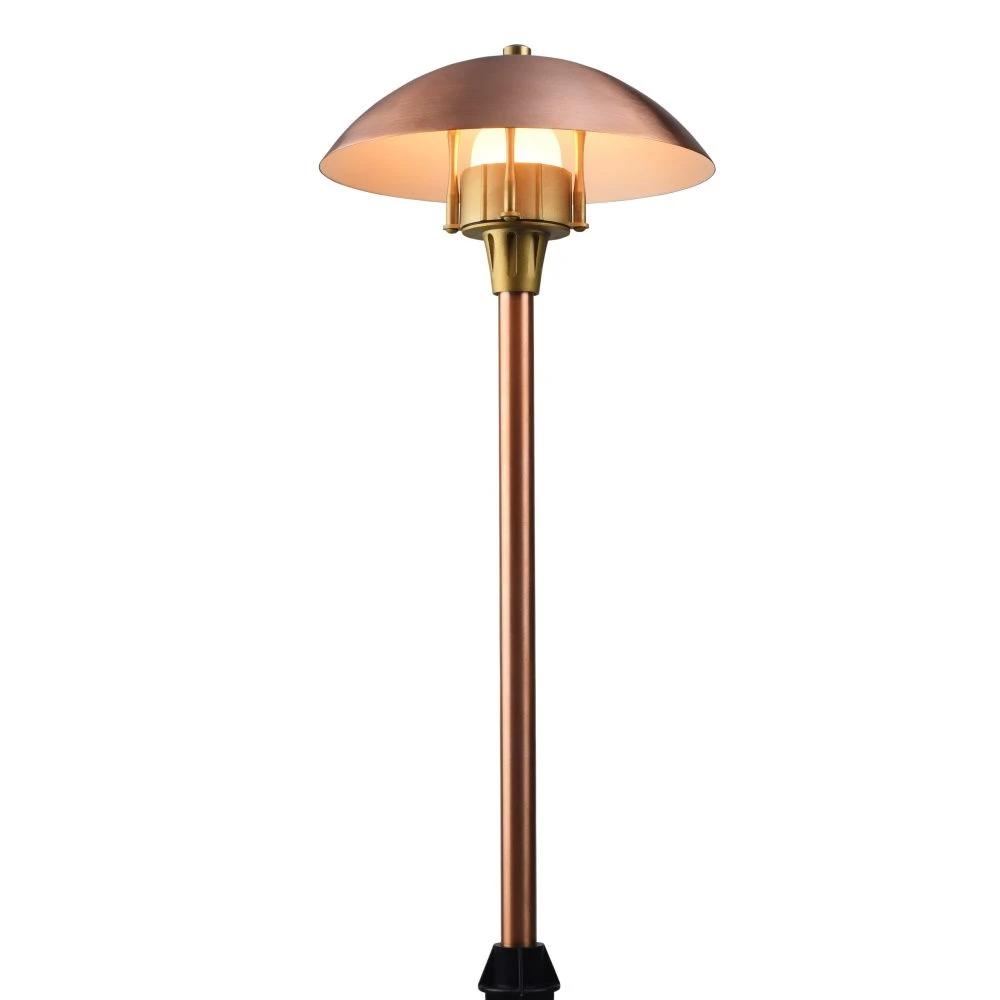

A frosted glass dome protects the lamp from irrigation spray, diffuses the light from the LED lamp and reduces lamp glare

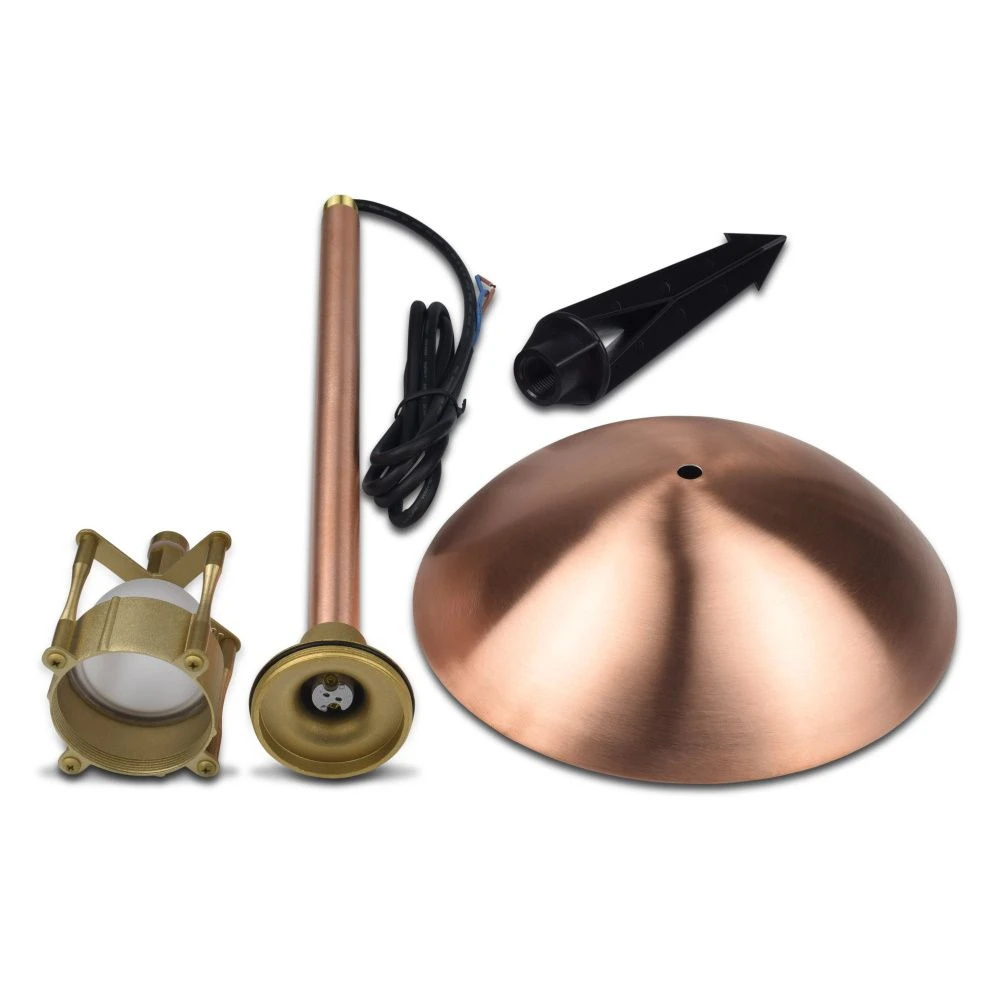

to improve visual comfort in sloping sites. The shade and dome assembly is easily removed and replaced with a screw action,
so tools are not required for changing the lamp.
Also available in satin chrome finish code number E6911 which is low stock and soon to be superseded with code EG6911 when it is manufactured.
12v Installation – See Instructions & Data Sheets Tab
Choosing the style of a product is only part of the equation you must also think of where that product will be used and how
it will be installed. All exterior lighting products on our web site have an IP rating appropriate to each light fitting
and its intended application and is therefore fit for purpose. Water ingress is the enemy for outdoor lighting and the
products supplied are only as good as the installation. The weakest point is always cable joints. All joints must be
made 100% watertight and this can be done using IP68 cable connectors and/or waterproof junction boxes which are then
filled with a re-enterable liquid gel mix. All joints where possible should be made above ground for easy access and
reduced water ingress. When installing ground buried lights adequate drainage systems should be put in place especially
in clay-based soil areas. If possible, use ground surface spike lights rather than a buried light. Care must be
taken with the cable runs and not to install transformers more than 30 metres away from the furthest fitting to avoid
any voltage drop. Cabling should be 2 core Rubber HO5RN-F or HO7RN-F and not PVC. PVC leads to capillary action over
time especially with UV degradation. Always check the correct type of transformer you need for your fittings. We recommend
wiring in parallel with Toroidal AC and LED DC drivers. But when using Milliamp mA LED drivers, they should always be
wired in series. Plug and Play kits are simply a case of daisy chaining the fittings via plug and play junction boxes,
connectors and extension cables using a 2-pin plug arrangement. If you use Plug and Play fittings they should only be
used for small domestic projects due to voltage drop over 5 metres.
All exterior lights must be installed by a certified NIC EIC electrician and should be signed off by an electrician with
Part P certification. There are a selection of waterproof jointing kits and boxes available on this web site.
