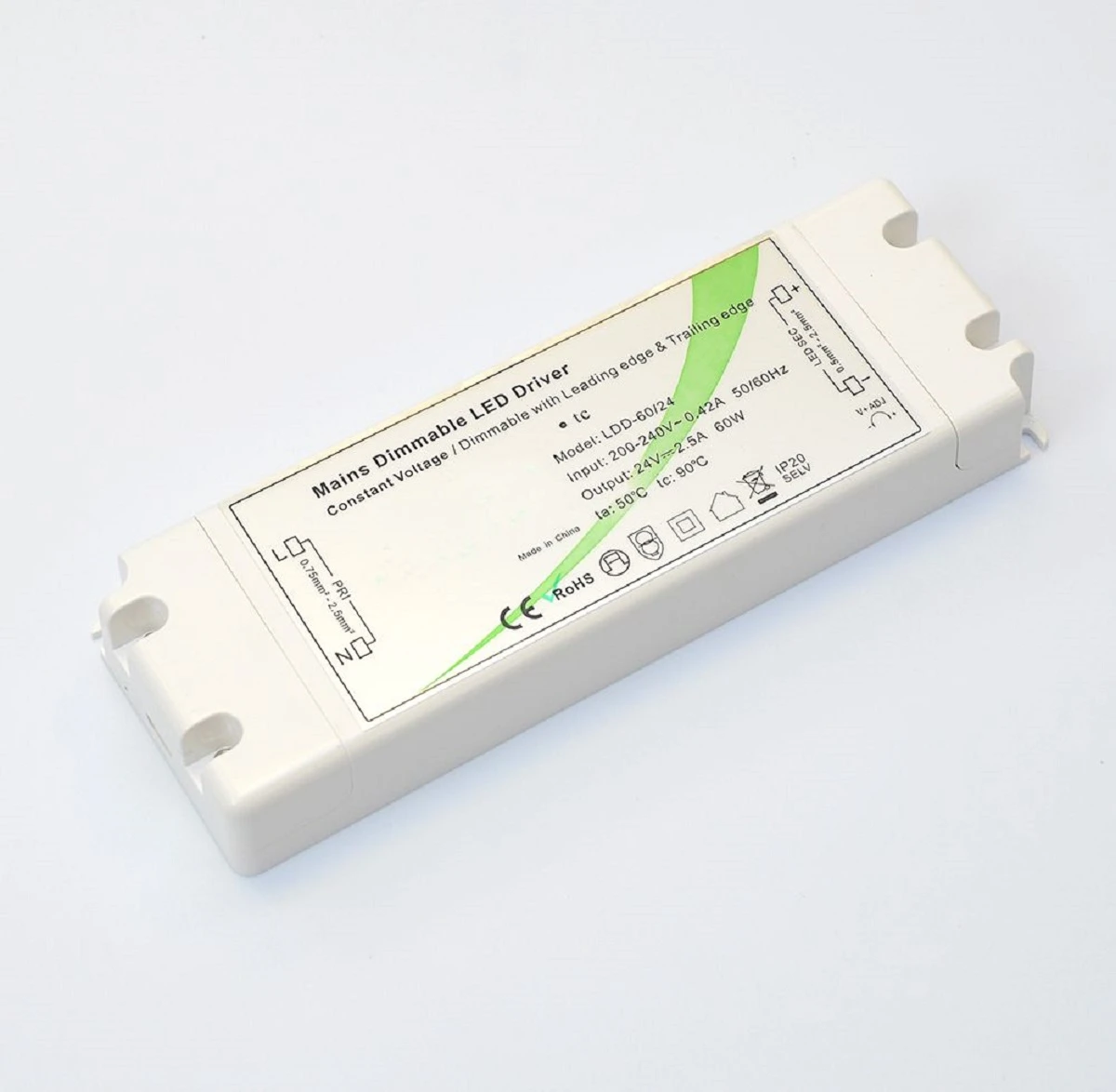

Dimmable LED Driver 60w – Constant Voltage 24vdc IP20 Non Waterproof

Original price was: $67.34.Current price is: $47.14.

SKU: ZXH0Z 1704333253 Categories: Outdoor LED Strip, Outdoor Lights

Free and fast shipping worldwide
Experience the Best Quality
Online assistance, always at your service.
Shop with confidence, we guarantee quality.

Dimmable LED Driver 60w – Constant Voltage IP67 24vdc IP20 Non waterproof

The IntaLED constant Voltage Dimmable LED drivers are a range of 24v DC LED drivers for use with the IntaLED LED strips.

The 24v constant voltage LED drivers can be used in conjunction with all IntaLED control gear and decoders.

Calculate the length of LED strip and wattage to determine the wattage required for the LED driver. To do this
multiply the length of the LED strip in metres by the wattage per metre and then add 10% for any voltage drop.

For example 7m of LED strip x 4.8w/m = 33.6 + 10% = 36.96w. Therefore the LED driver required would be around 40w
minimum.

Output Rated Power 60W Rated Current 2.5A Output Voltage 24V DC Voltage Tolerance
±0.5V Input Voltage Range 200~240VAC

Frequency Range 47~63Hz Efficiency (Typ) 85% Power Factor PF≥0.98/200-240VAC (Full loading ) AC Current
(Typ) 0.50a Inrush Current 50A (50% peak width=176μs) 230VAC

Protection Overload ≤ 120% Short circuit Recovers automatically after condition is removed Environment
Working Temp -40~+70°C

Working Humidity 20~90% RH, non-condensing Ingress Protection IP20 non-waterproof Storage Temp / Humidity-40~+80°C,
10~95%RH

Safety & EMC Safety Standards (LVD) EN61347-2-13:2014/A1:2017, EN61347-1:2015, EN 62493:2015

Withstand Voltage I/P-O/P: 3.75KVAC Isolation Resistance I/P-O/ P:100MΩ / 500VDC / 25°C / 70%RH

EMC Emission and Immunity EN 55015:2013/A1:2015, EN 61547:2009, EN 61000-3-2:2014, EN 61000-3-3:2013

Dimming Type PWM dimming, PWM frequency ~ 400Hz Minimum Load to achieve optimum dimming of 5-100% 10%,6W

Dimmer – Leading and Trailing Edge Note – Consult the Derating Curve for load guidance .

Dimensions 178x61x24mm (L×W×H) Weight 0.35Kg

Watts	30W, 60W, 80W, 100W, 150W, 200W, 300W
Dimensions	178 x 61 x 24mm (L x W x H)
IP Rating Ingress Protection - a two digit code representing water resistance.	IP20
Voltage Voltage of fitting, Light Bulb or Transformer	24v
Weight	0.35kg
