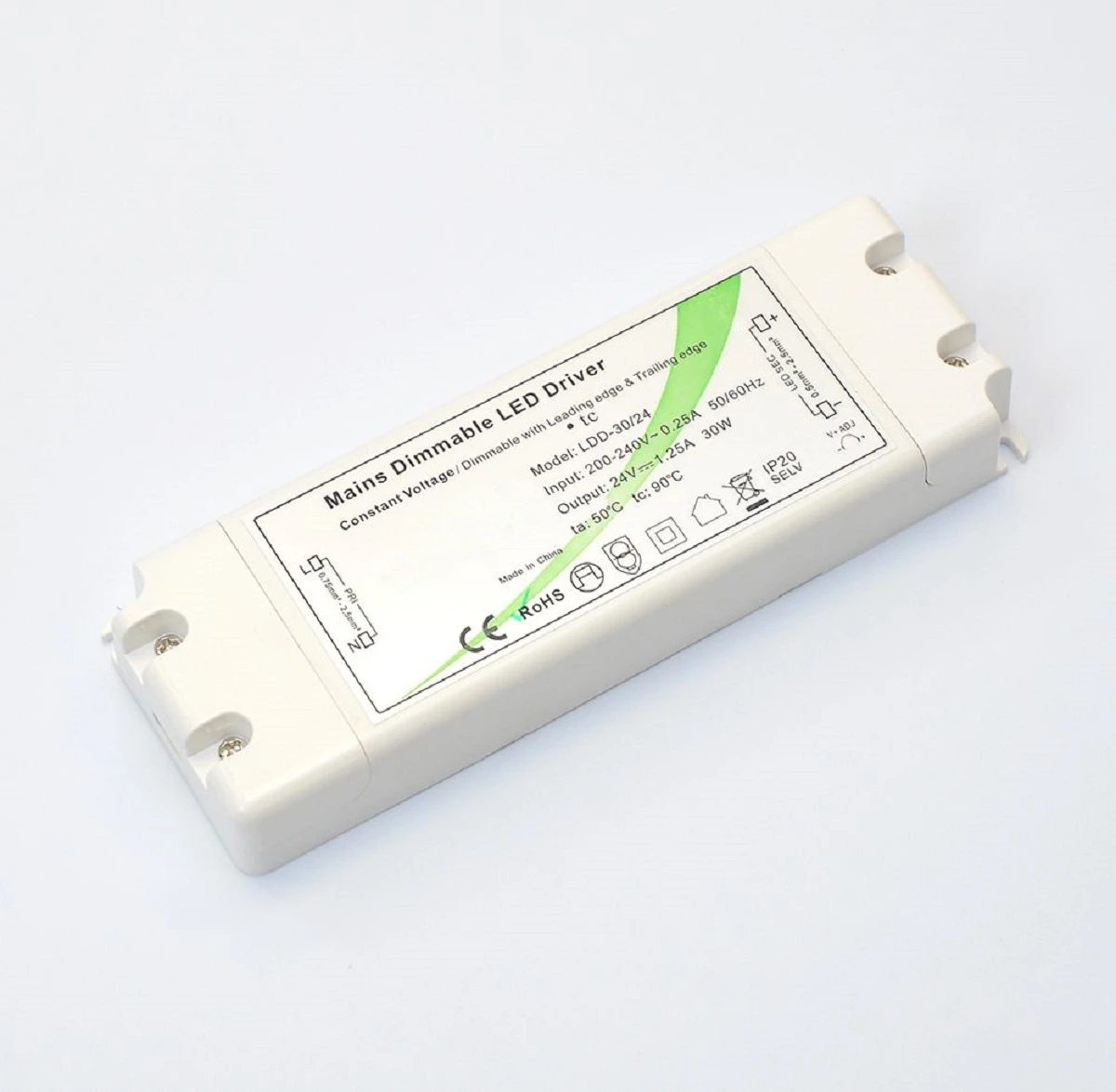

Dimmable LED Driver 30w – Constant Voltage 24vdc IP20 Non Waterproof

Original price was: $39.22.Current price is: $27.45.

SKU: ZXH0Z 1704333218 Categories: Outdoor LED Strip, Outdoor Lights

Free and fast shipping worldwide
Experience the Best Quality
Online assistance, always at your service.
Shop with confidence, we guarantee quality.

Dimmable LED Driver 30w – Constant Voltage IP67 24vdc IP20 Non waterproof

The IntaLED constant Voltage Dimmable LED drivers are a range of 24v DC LED drivers for use with the IntaLED LED strips.

The 24v constant voltage LED drivers can be used in conjunction with all IntaLED control gear and decoders.

Calculate the length of LED strip and wattage to determine the wattage required for the LED driver. To do this multiply
the length of the LED strip in metres by the wattage per metre and then add 10% for any voltage drop.

For example 7m of LED strip x 4.8w/m = 33.6 + 10% = 36.96w. Therefore the LED driver required would be around 40w minimum.

Output Rated Power 30W Rated Current 1.25A Output Voltage 24V DC Voltage Tolerance ±0.5V Input Voltage Range 200~240VAC

Frequency
Range 47~63Hz Efficiency (Typ) 79% Power Factor PF≥0.97/200-240VAC (Full loading ) AC Current (Typ) 0.25a Inrush Current (Max) 30A (50%
I peak Twidth=90μs) 230VAC

Protection Overload ≤ 120% Short circuit Recovers automatically after condition is removed Environment Working
Temp -40~+70°C

Working Humidity 20~90% RH, non-condensing Ingress Protection IP20 non-waterproof Storage Temp / Humidity-40~+80°C,
10~95%RH

Safety & EMC Safety Standards (LVD) EN61347-2-13:2014/A1:2017, EN61347-1:2015, EN 62493:2015

Withstand Voltage I/P-O/P: 3.75KVAC Isolation
Resistance I/P-O/ P:100MΩ / 500VDC / 25°C / 70%RH

EMC Emission and Immunity EN 55015:2013/A1:2015, EN 61547:2009, EN 61000-3-2:2014,
EN 61000-3-3:2013

Dimming Type PWM dimming, PWM frequency ~ 400Hz Minimum Load to achieve optimum dimming of 5-100% 10%,3W

Dimmer – Leading and Trailing Edge Note – Consult the Derating Curve for load guidance .

Dimensions 155x54x20mm (L×W×H)Weight0.21Kg

Watts	30W, 60W, 80W, 100W, 150W, 200W, 300W
Dimensions	155x54x20mm (L×W×H)
IP Rating Ingress Protection - a two digit code representing water resistance.	IP20
Voltage Voltage of fitting, Light Bulb or Transformer	24v
Weight	0.21kg
