Dasar 80 – 230v GU10 – 316 Stainless Steel Bezel Aluminium Body IP67 30 Degree Tilt Square Recessed Spotlight
Original price was: $113.16.$79.21Current price is: $79.21.
- Free and fast shipping worldwide
- Experience the Best Quality
- Online assistance, always at your service.
- Shop with confidence, we guarantee quality.
Dasar 80 Square GU10, ground recessed, 316 stainless steel cover, 30 degree tilt, IP67 2 ton drive over

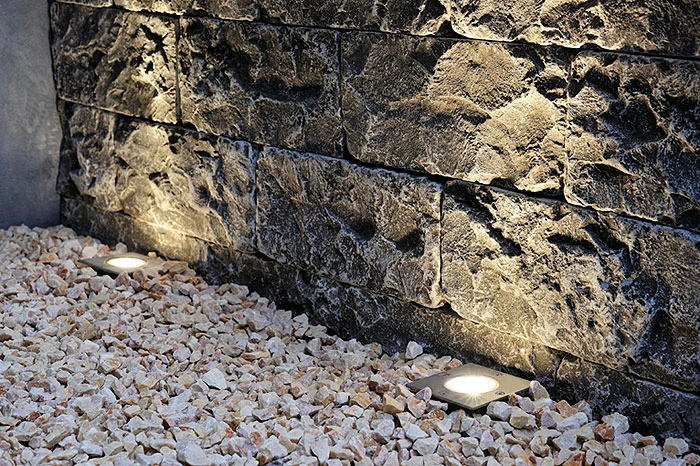

The Dasar 80 GU10 is one of our most popular fittings and an ideal fitting for driveways and up lighting shrubs and small
trees. This fitting can be mounted flush with the surface rather than the more traditional ones that have a raised bevel
edge.
so the fitting is safe to touch and ECO friendly. There is a ground mounting pot included with the fitting. This fitting
can take a maximum load of 2 tons and can be used as a drive over light. There is also 30 degree of tilt angle available
in this ground light. 90 degree horizontal rotation.
Lamp colour (Kelvins)
The colour of a lamp is defined as a measurement called kelvins. A standard GLS light bulb in your house would be 2,700
kelvins which is in the warm colour spectrum and a lamp with 5,000 kelvins would be at the very cold white spectrum.
Installation
Please check the specification for dimensions before purchasing.
A NIC EIC electrical contractor should be used to ensure a 100% water tight installation. There are resin kits, magic gel
and heat shrink kits available from us to help make the perfect waterproof joint.
Choosing the style of a product is only part of the equation you must also think of where that product will be used and how
it will be installed. All exterior lighting products on our web site have a IP rating which is explained further in our Technical Help/Products section but in simple terms the IP rating is appropriate to each light fitting and its intended application and is
therefore fit for purpose. Water ingress is the enemy for outdoor lighting and the products supplied are only as good as
the installation as the weakest point is always cable joints. All joint must be made 100% water tight and this can be done
using IP68 connectors, waterproof junction boxes which are then filled with a resin mix or magic gel. All joints where possible
should be made above ground for easy access and reduced water ingress. When installing ground
buried lights adequate drainage systems should be put in place especially in clay
based soil areas. Approximately 200mm of drainage. Mains 240v cable will have less joints than a low voltage installation but care must
be taken with the cable runs.
| Shape | Circular, Square Bezel |
|---|---|
| IP Rating Ingress Protection - a two digit code representing water resistance. | IP67 |
| Warranty | 5 Years |
| Voltage Voltage of fitting, Light Bulb or Transformer | 240v |
| rotation | 90 degree |
| Overall diameter | 13 cm |
| Max Wattage | 35W |
| Materials | Aluminium |

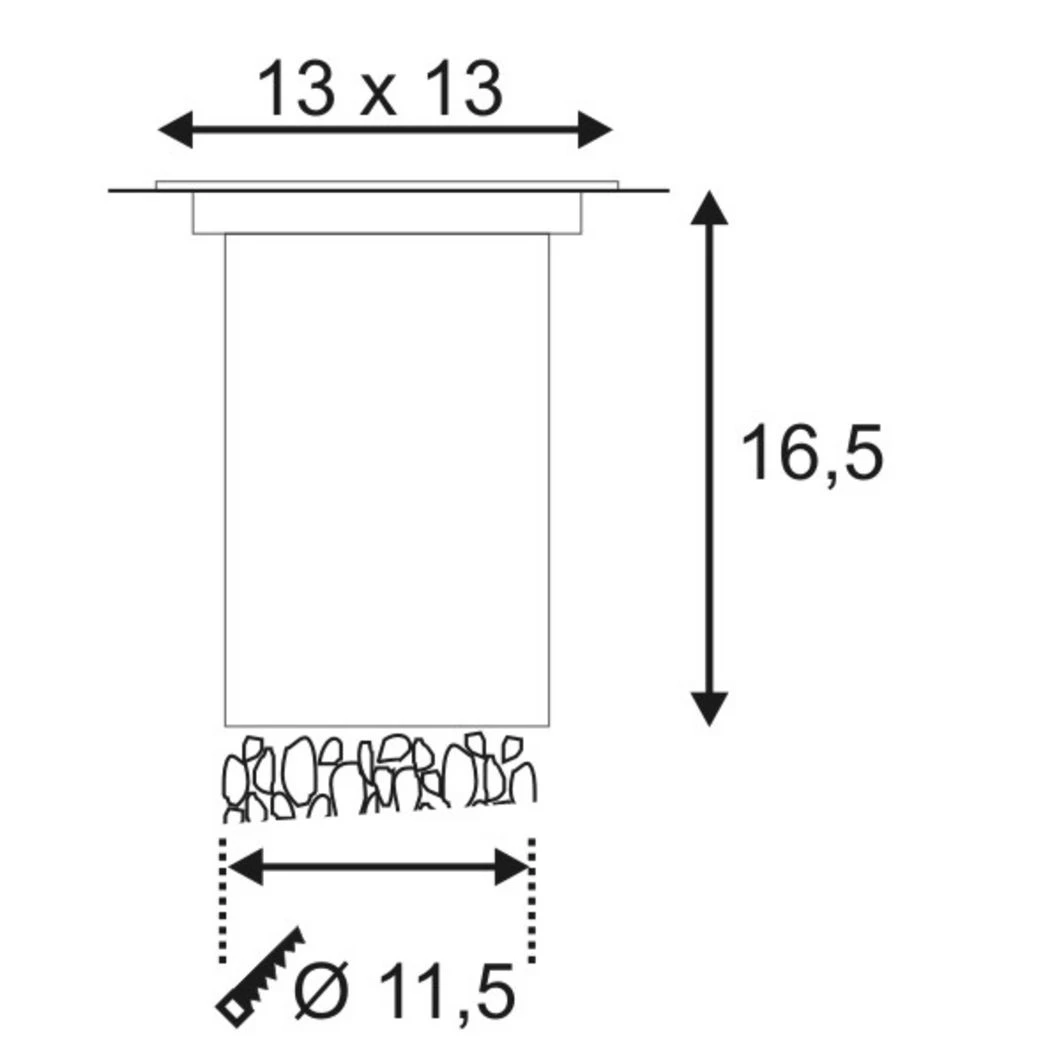

| Installation Depth | 165 mm |
| Range | Dasar Exact Square |
| Height | 16cm |
| Diameter | 8cm |
| Degree of tilt | 30 |
| Cut Out | 115 mm |
| Colour Colour of fitting | Silver |
| Bulb Type Bulb type used for fittings | GU10 |
| Weight | 1.08 Kg |
