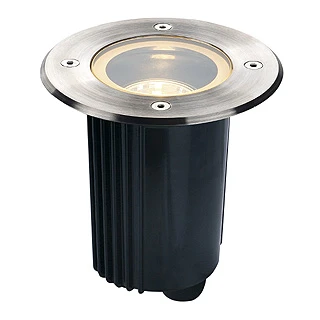

Dasar 80 – 230v GU10 – 316 Stainless Steel Bezel Aluminium Body IP67 30 Degree Tilt Round Recessed Spotlight

The Dasar 80 is a 316 marine grade stainless steel bezel luminaire designed for exterior ground use and is
IP67.

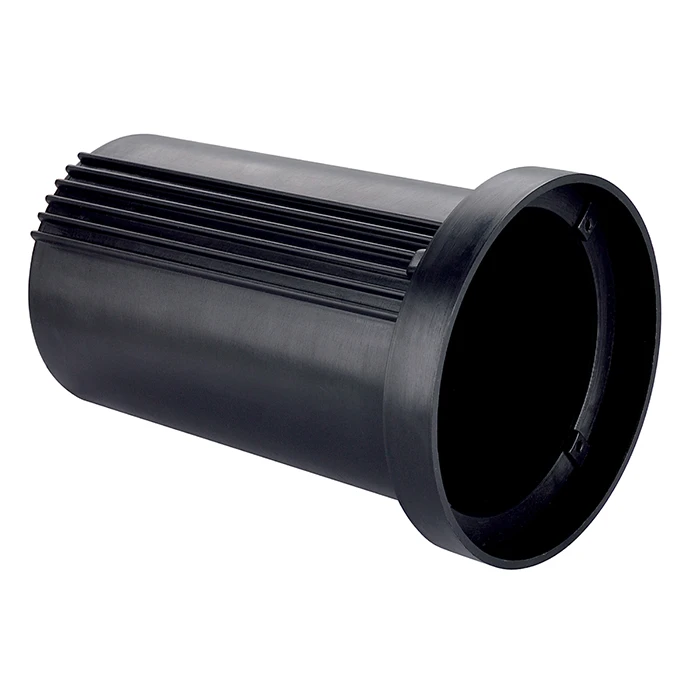

We recommend that you use a GU10 LED lamp so the fitting is safe to touch and ECO friendly. There is a ground
potting pot included with the fitting. This fitting can take a maximum load of 2 tons for a concrete installation and can be used as a drive over light. There is also 30 degree of tilt angle available
and 90 degree rotation in this ground light.

LED lamps are available on this site and a selection suggested at the bottom of the page under ‘Related Products’ which will create
a medium beam of soft light.  LED lamps have a long life, use minimal electricity
and are cool to touch, making them safe around children.

Feed-in capability

No. Lampholder / Socket

GU10. Installation diameter

11.5 cm. Installation depth

16.5 cm. Tilt range

30 Degree. Rotation range

90 Degree.
Height

16 cm.

Diameter

8 cm. Net weight

0.981 kg.

Gross weight

1.138 kg

. Voltage

230 Volts. Max wattage

35 Watt.

Protection class

I.

IP-rating

IP 67.
Energy efficiency class

A++.

Lamp

GU10.  230V.

Material

Aluminium / Stainless Steel 316

Colour

stainless steel.
Way of mounting

Inground mounting

Weight capacity 2 tons.
