Dasar 270 – 240v 30w 2600 Lumens – 316 Stainless Steel Bezel Aluminium Body IP65 Symmetrical Light 4000k

Dasar 270 – 240v 30w 2600 Lumens – 316 Stainless Steel Bezel Aluminium Body IP65 Symmetrical light 4000k

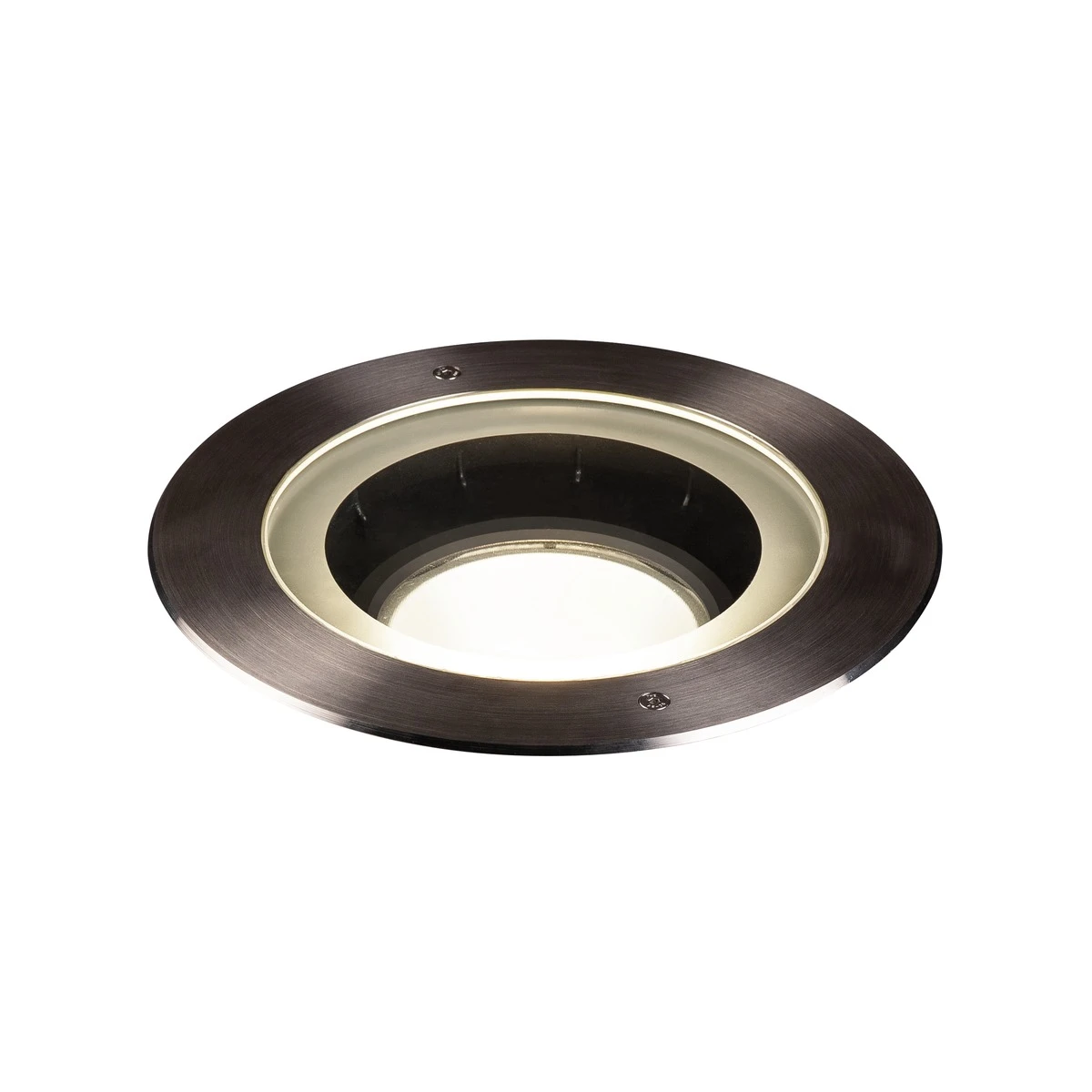

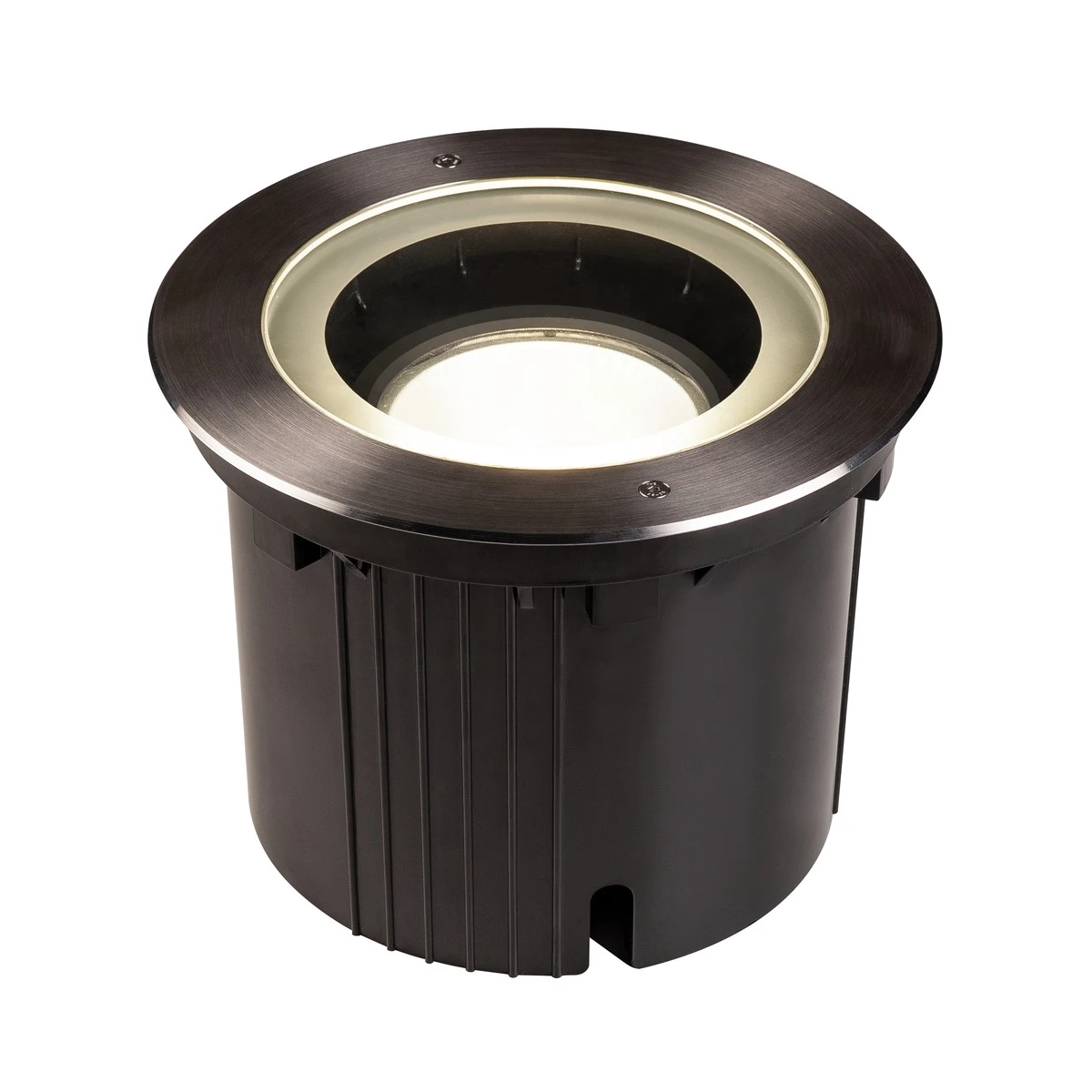

The Dasar 270 is an Symmetric recessed light which means the lamp is set to the centre of the light (see example below)
and throws the light directly at the object for illumination, but lots of the light also gets wasted into the air creating
light pollution. It’s ideal at the base of a tree to illuminate the canopy or to illuminate a façade of a building.

The light is pumps out 2600 lumens from the integral 30w cool white 4000k LED module..  A maximum 2 ton load can
be put on the fitting and makes it ideal as a drive over luminaire but not to be parked on. It is made from aluminium
with a 316 Stainless steel bezel. Code for the warm white fitting is 1002897.

The LED should last up to 50,000 hours and is replaceable by the manufacturer or by one of their service technicians
authorised by them.

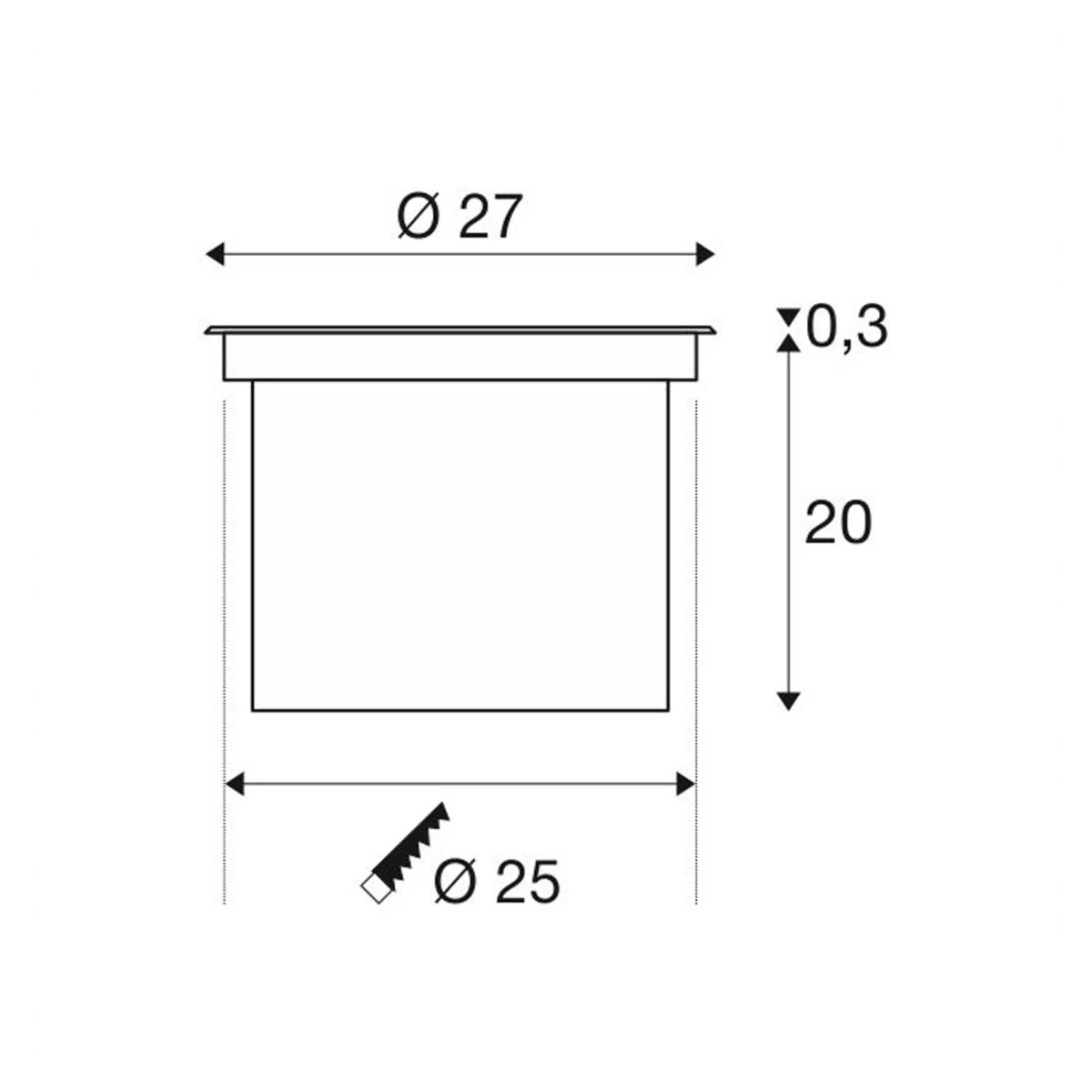

The IP rating is IP65 and the dimensions are 27cm (270mm) diameter, 20.3cm (203mm) height and 25cm (250mm) cut out.

Example of symmetric and asymmetric beam distribution

                                                                                                                       Installation

A NIC EIC electrical contractor should be used to ensure a 100% water tight installation. There are junction boxes, resin
kits, magic gel and IP68 inline connectors available from us to help make the perfect waterproof joint.

For a mains 220v – 240v supply you should use SWA ( steel wired armour ) rubber cable and NOT PVC.
  Each new garden supply should also be on its own RCD.

Choosing the style of a product is only part of the equation you must also think of where that product will be used and how
it will be installed. All exterior lighting products on our web site have a IP rating which is explained further in our Technical Help/Products section but in simple terms the IP rating is appropriate to each light fitting and its intended application
and is therefore fit for purpose. Water ingress is the enemy for outdoor lighting and the products supplied are only
as good as the installation as the weakest point is always cabling and connection joints. All joints must be made 100%
water tight and this can be done using IP68 inline connectors, waterproof junction boxes which are then filled with a
resin mix or magic gel. All joints where possible should be made above ground for easy access and reduced water ingress.
When installing ground buried lights adequate drainage systems should be put in place especially in clay based soil areas,
i.e. approximately 200mm of shingle or stones.
