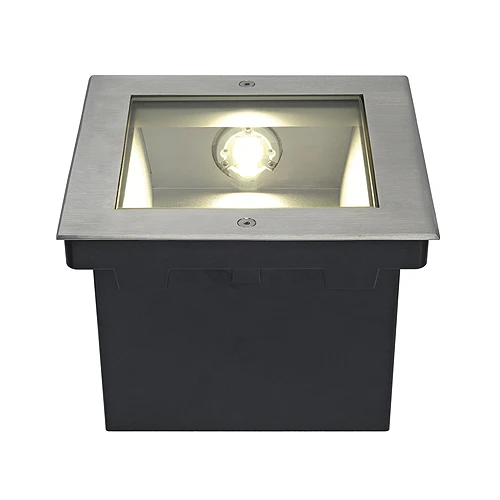

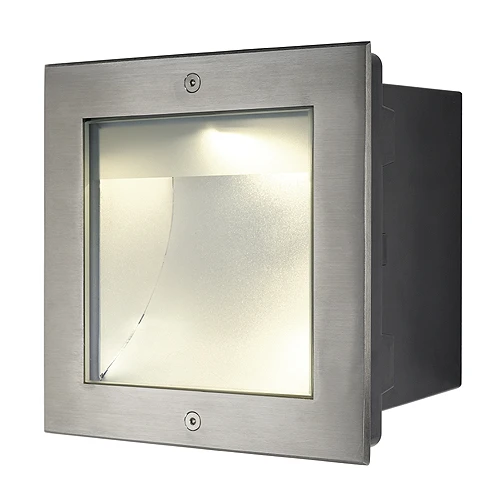

The Dasar 255 is an 34w robust ground light with a built in LED light module and the bezel is made from 316 Stainless steel. A maximum 2 ton load can be put on the fitting and make it ideal as a drive over luminaire.
Asymmetric medium beam distribution which means that most of the light does not get thrown backwards but is projected forward and up. The light is projected at a 45 degree beam angle and pumps out 1,620 Lumens. .
Symmetric is a standard type of light fitting and means the lamp is set to the centre of the light fitting ( see example below ) and throws the light directly at the object for illumination but lots of the light also goes wasted in to the air creating light pollution.. Ideal at a base of a tree to illuminate the canopy or to illuminate a façade of a building.

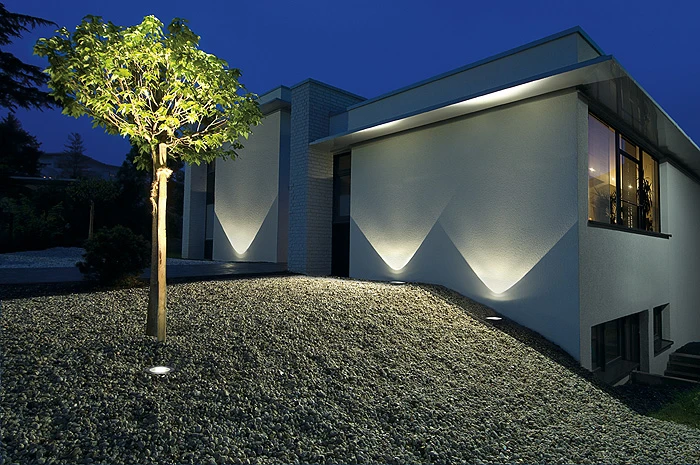

Example of symmetric and asymmetric beam distribution
Installation
Please check the specification for dimensions before purchasing.
A NIC EIC electrical contractor should be used to ensure a 100% water tight installation. There are junction boxes, resin
kits, magic gel and IP68 inline connectors available from us to help make the perfect waterproof joint.
For a mains 220v – 240v supply you should use SWA ( steel wired armour ) rubber cable and NOT PVC.
Each new garden supply should also be on its own RCD.
Choosing the style of a product is only part of the equation you must also think of where that product will be used and how
it will be installed. All exterior lighting products on our web site have a IP rating which is explained further in our Technical Help/Products section but in simple terms the IP rating is appropriate to each light fitting and its intended application and is
therefore fit for purpose. Water ingress is the enemy for outdoor lighting and the products supplied are only as good as
the installation as the weakest point is always cabling and connection joints. All joints must be made 100% water tight and
this can be done using IP68 inline connectors, waterproof junction boxes which are then filled with a resin mix or magic
gel. All joints where possible should be made above ground for easy access and reduced water ingress. When installing ground
buried lights adequate drainage systems should be put in place especially in clay based soil areas, i.e.
approximately 200mm of shingle or stones.
