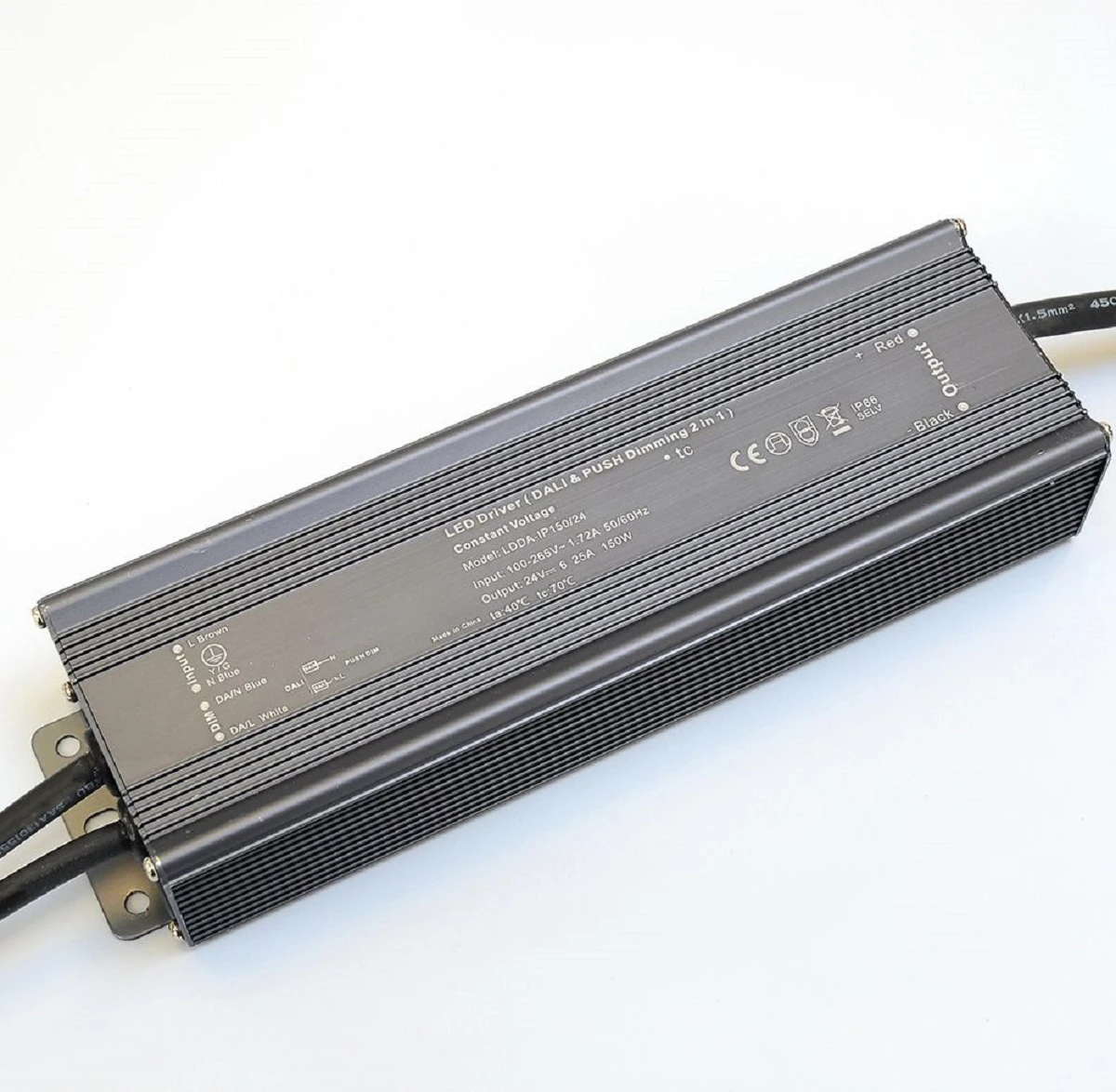

DALI Dimmable Driver IP66 150Watt‐24V Constant Voltage

DALI Dimmable Driver IP66 150Watt‐24V Constant Voltage - Image 2

DALI Dimmable Driver IP66 150Watt‐24V Constant Voltage

Original price was: $121.36.Current price is: $84.95.

SKU: ZXH0Z 1704332999 Categories: Outdoor LED Strip, Outdoor Lights

Free and fast shipping worldwide
Experience the Best Quality
Online assistance, always at your service.
Shop with confidence, we guarantee quality.

We have 5 different wattages of IntaLED – DALI dimmable drivers to choose from. They are rated IP66 and operate at 24v Constant voltage (VDC).

The voltage tolerance and regulation is +-0.5v. and load regulation is +-2%.

The voltage frequency is 100~265VAC. Frequency range 47~83Hz. Efficiency fully loaded is 88%. Protection overload <120%. Short circuit – recovers automatically after condition is removed.

Over temperature 100°C +- 10°C recovers automatically after cooling.

Working temperature -40~+60°C. Working humidity 20~95% RH, non condensing.

Storage temperature/ humidity -40~+80°C, 10~95%RH.

Dimming type = PWM dimming, PWM frequency ~240Hz

Dimensions 245mm Length x 70mm Width x 43mm Height.

Weight = 1.2kg.

Watts	60W, 100W, 150W, 200W, 300W
Colour Colour of fitting	Grey
Dimmable	PWM Dimming
Height	245mm
IP Rating Ingress Protection - a two digit code representing water resistance.	IP66
Length	245 mm
Voltage Voltage of fitting, Light Bulb or Transformer	24v
Warranty	5 Years
Weight	1.2kg
Width	70mm
