Compact Spike – 240v – Copper IP65 GU10 – Spotlight
Original price was: $129.60.$90.72Current price is: $90.72.
- Free and fast shipping worldwide
- Experience the Best Quality
- Online assistance, always at your service.
- Shop with confidence, we guarantee quality.

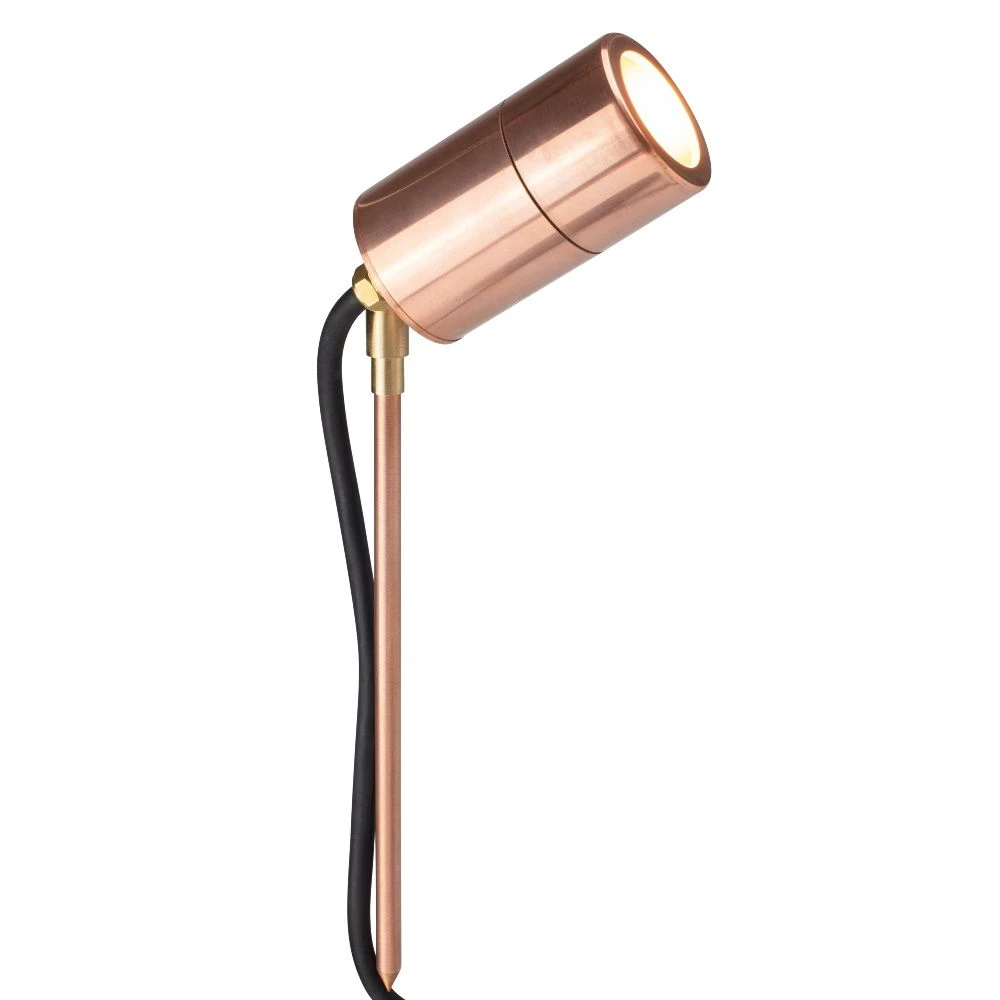

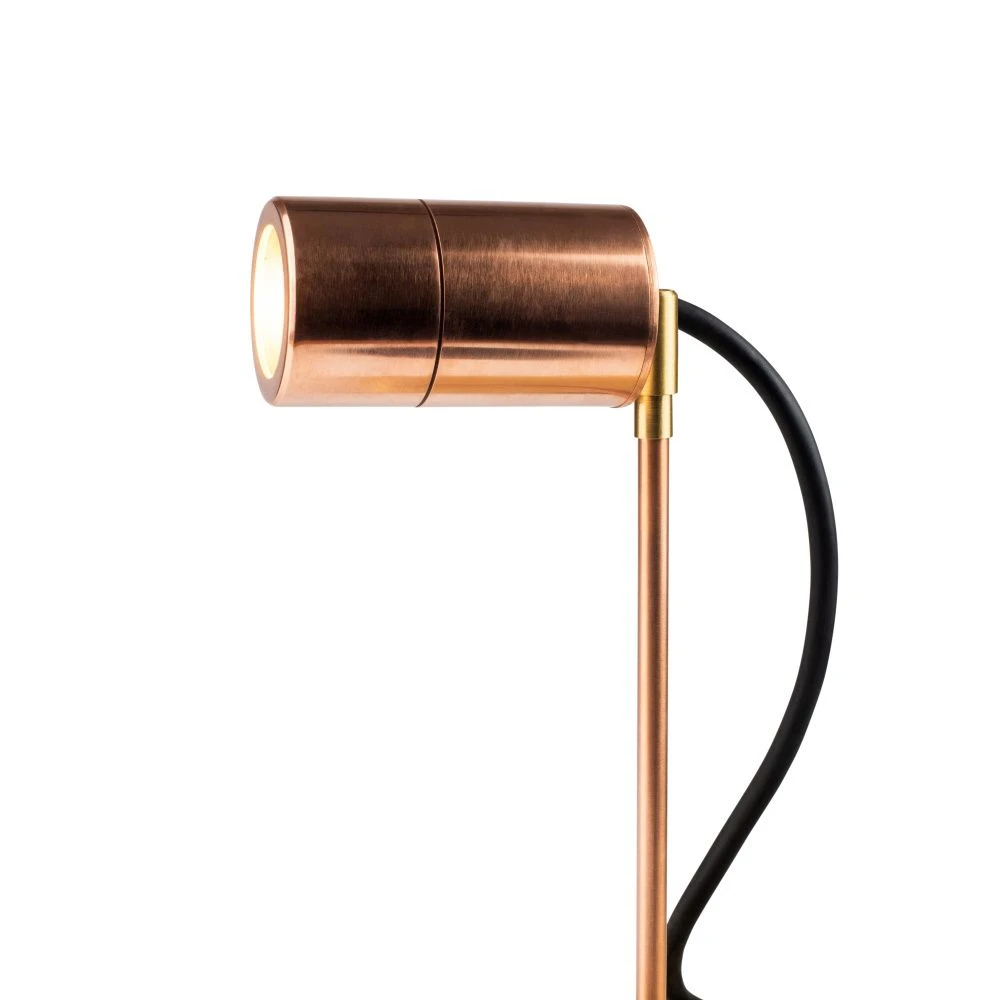

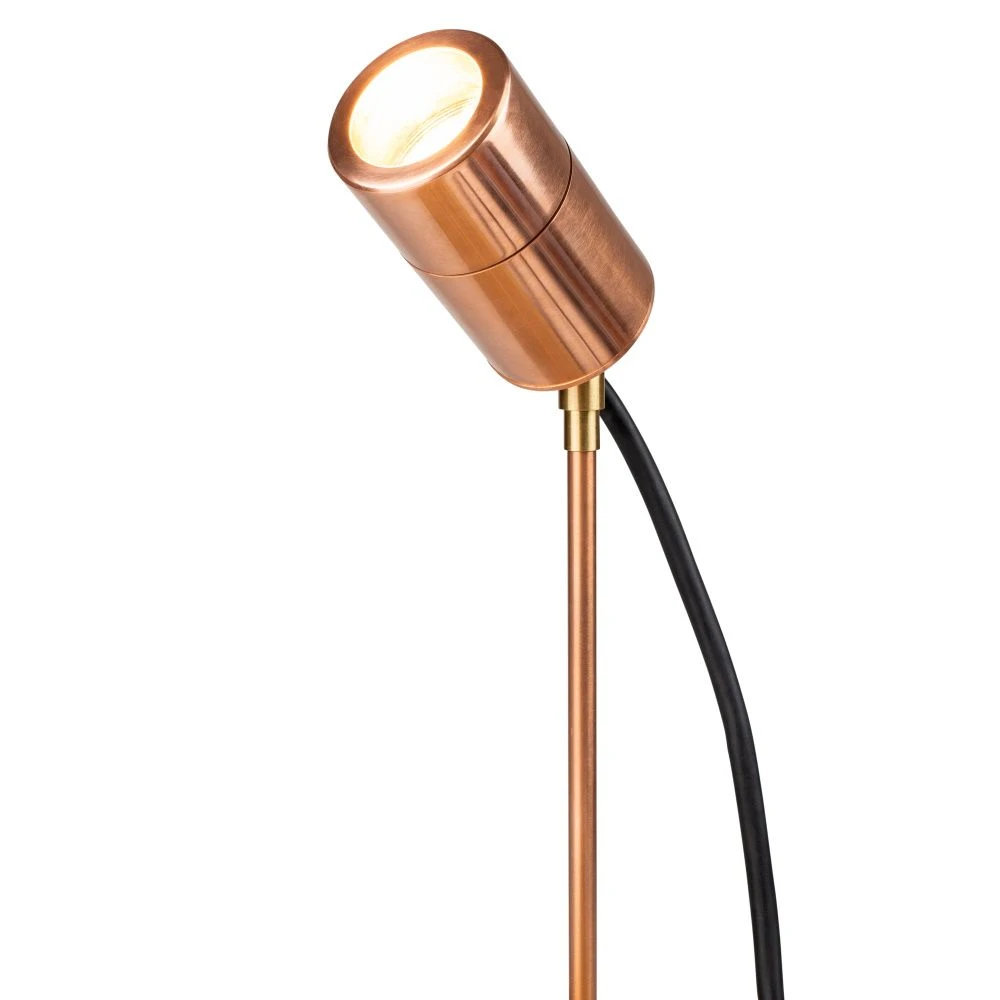

Compact spike light, Copper, mains 240v, GU10, IP65

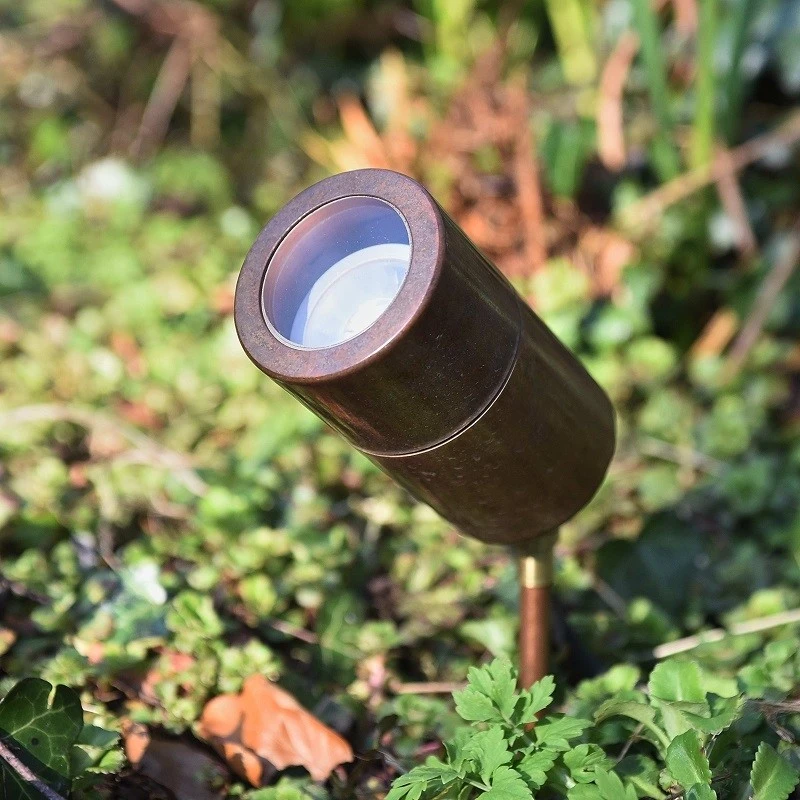

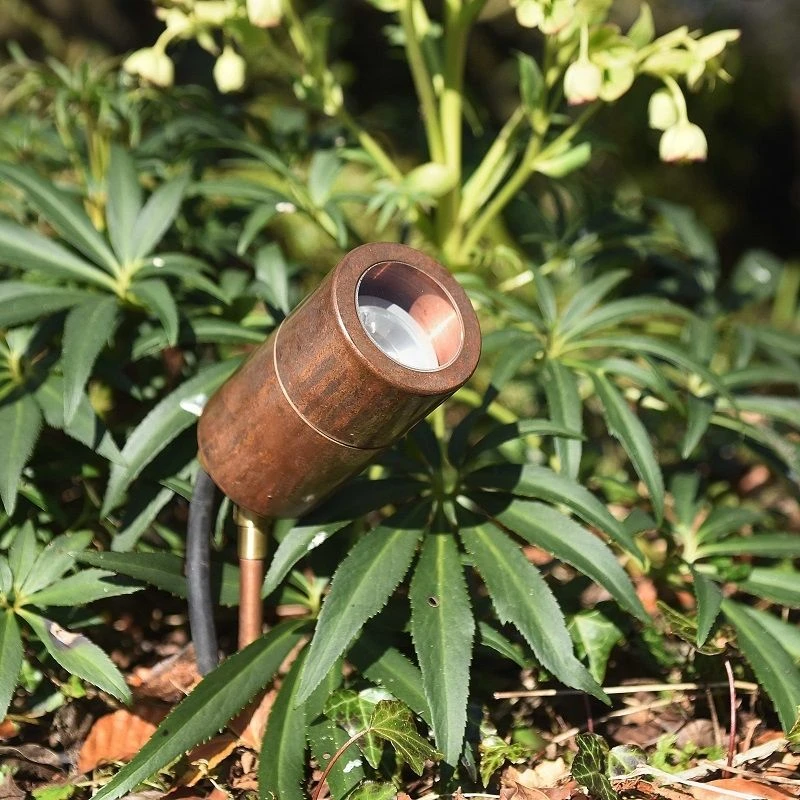

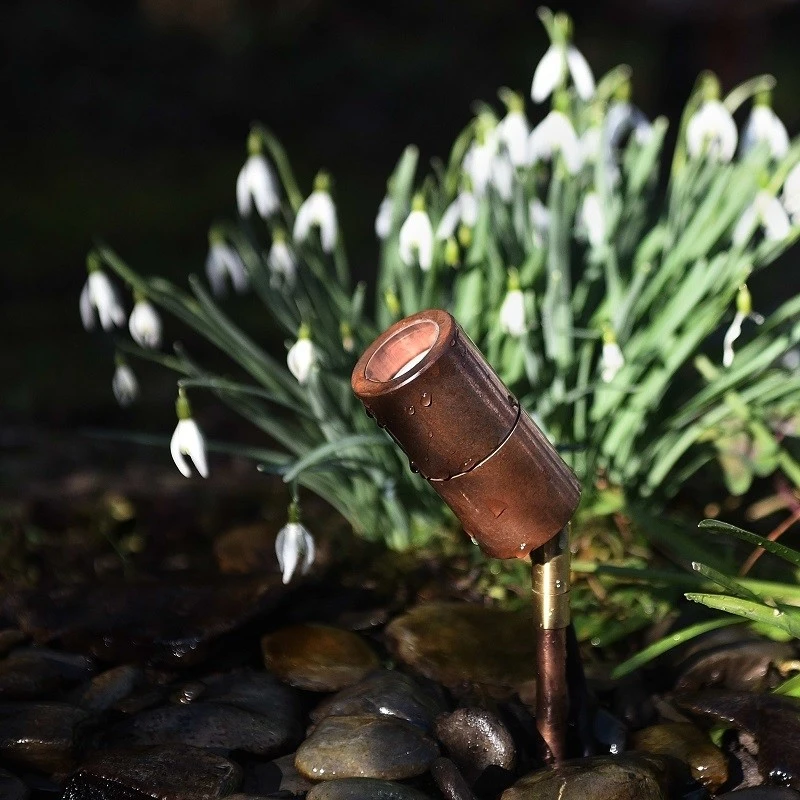

Natural copper weathers to a mottled brown finish which blends well with woody planting, bark mulch and gravel. 240v
models utilise GU10 lamps negating the need for a transformer. LED ground spike spotlight fitted with a flush glass lens
to prevent water accumulation, a longer body to shield the lamp from view leaving sufficient space for glare louvres,

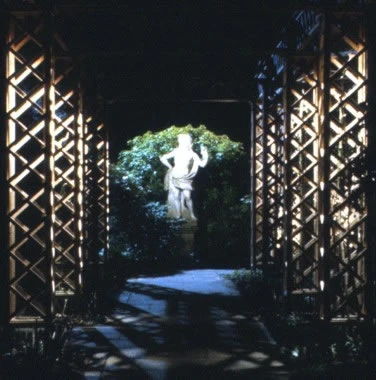

clip on lens and dichroic filters. Choose a 3w or 5w warm white LED lamp to uplight pergola columns to completely change the ambience of your garden at night.
240v Spike spotlights need their own circuit from an existing or new fuse box. The box must be protected by a residual
current device (RCD) and controlled with a double-pole isolating switch. As a general rule of thumb, the armoured
cables need to be run underground- at least 450mm with weatherproof junction boxes. Use an electrician qualified
under ‘Part P’ building regulations to install any mains electricity outdoors who will certify the work properly.
Comes in a choice of 12v and 240v and colour finishes, Black, Rustic Brown and Stainless Steel.

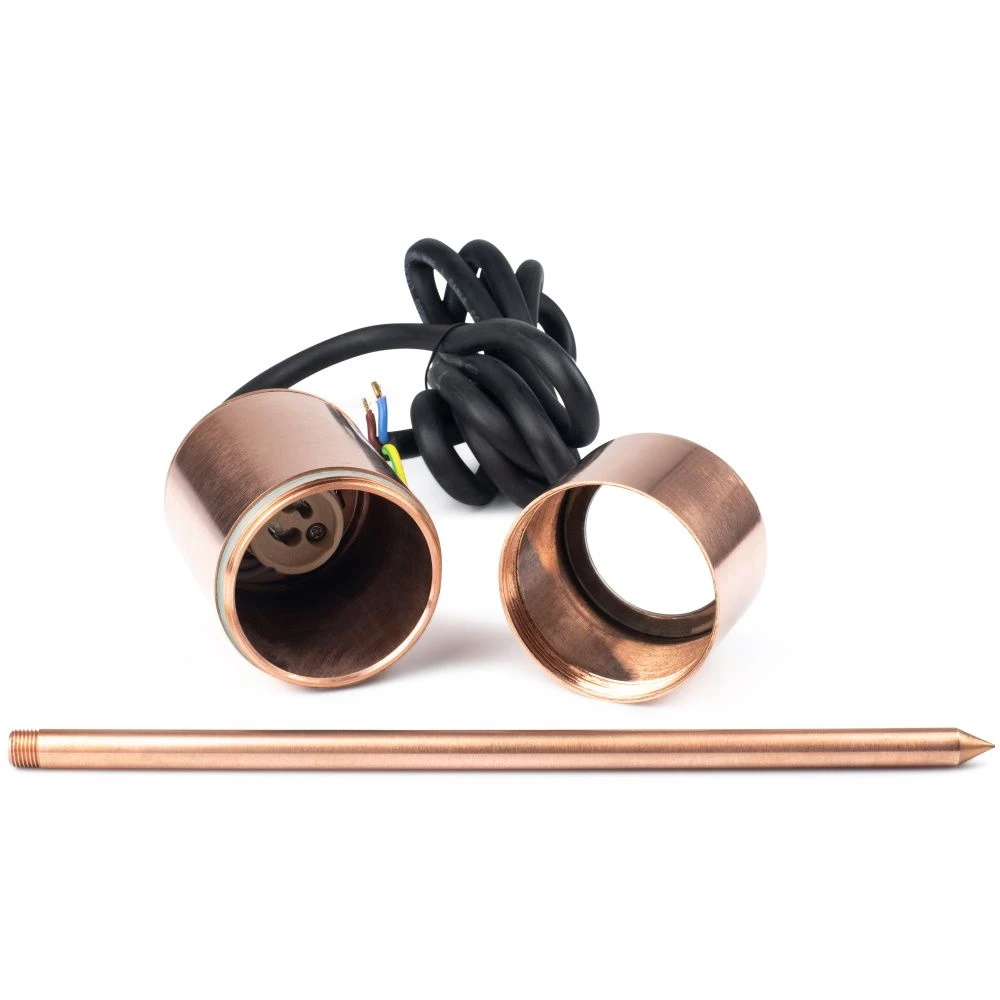

spike. Unscrewing the front bezel makes it easy to change the lamp without tools.
2 metres of 3 core cable fitted for connection into a weatherproof junction box.
Using a single RCD for large numbers of 240v fittings is not recommended due to the risk of nuisance tripping. We advise the use of separate RCD protection for each circuit and a maximum of 12 fittings per RCD. Where a garden lighting installation of more than 12 spike mount or recessed lights per circuit is proposed, we suggest the installation of 12v units with transformers, which results in a significantly higher fault tolerance and reliability in the total installation.

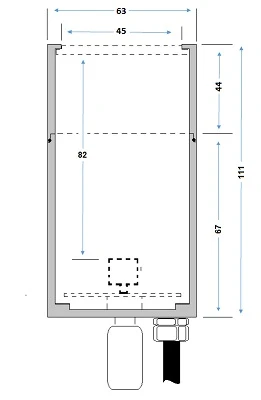

The exterior dimensions are 111mm x 63mm not including 250mm spike.
Comes pre-wired with 2m of 3 core rubber cabling.
Maximum size of GU10 72mm length not including pins.
Beam distribution 15 degrees to 120 degrees.
Lamp Colour (Kelvins)
The colour of a lamp is defined as a measurement called kelvins. A standard GLS light bulb in your house would be 2,700 kelvins
which is in the warm colour spectrum and a lamp with 5,000 kelvins would be at the very cold white spectrum.
Installation 220 – 240v – See Instructions & Data Sheets Tab=”center”>
All exterior lighting products on our website have an IP rating which is explained further in our Technical
Help/Products section but in simple terms the IP rating is appropriate to each light fitting and its intended
application and is therefore fit for purpose. Water ingress is the enemy for outdoor lighting and the products
supplied are only as good as the installation as the weakest point is always cable joints. All joints must be
made 100% water tight and this can be done using IP68 inline connectors, waterproof junction boxes which are
then filled with a resin or gel mix. All joints where possible should be made above ground for easy access and
reduced water ingress. When installing ground buried lights adequate drainage systems should be put in place especially in clay based soil areas.
| Bulb Type Bulb type used for fittings | GU10 |
|---|---|
| Colour Colour of fitting | Brown |
| IP Rating Ingress Protection - a two digit code representing water resistance. | IP65 |
| Materials | Copper |
| Voltage Voltage of fitting, Light Bulb or Transformer | 240v |
| Warranty | 5 Years |
