Compact Spike 12v – 316 Stainless Steel MR16 IP65 Spotlight

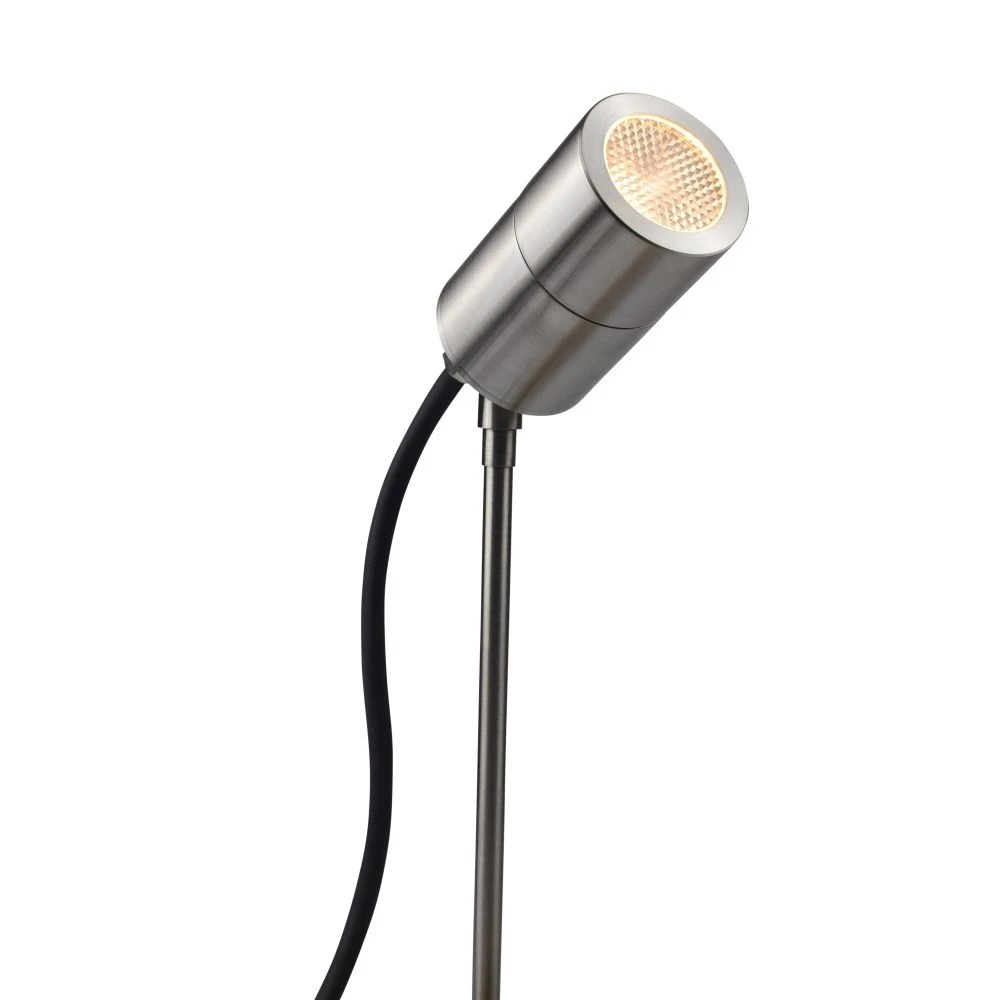

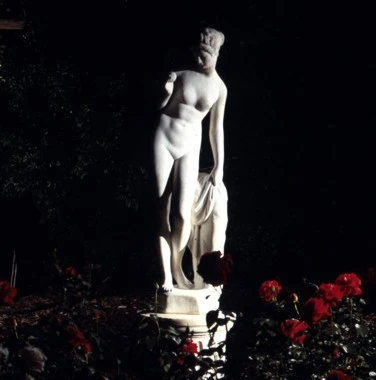

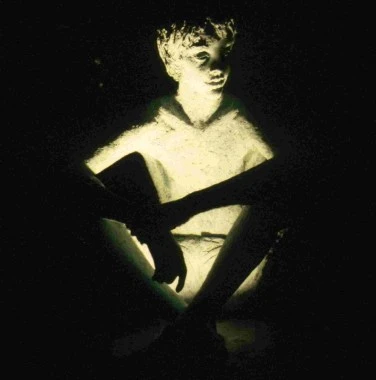

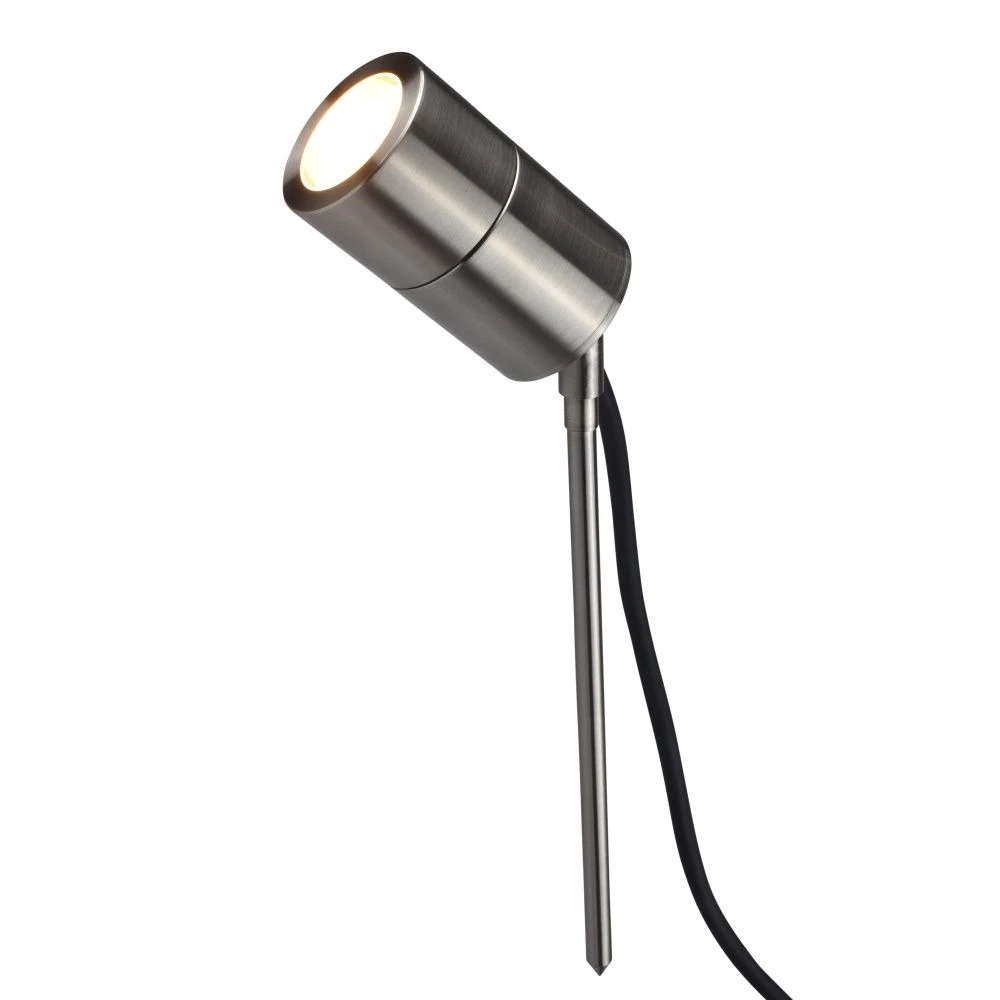

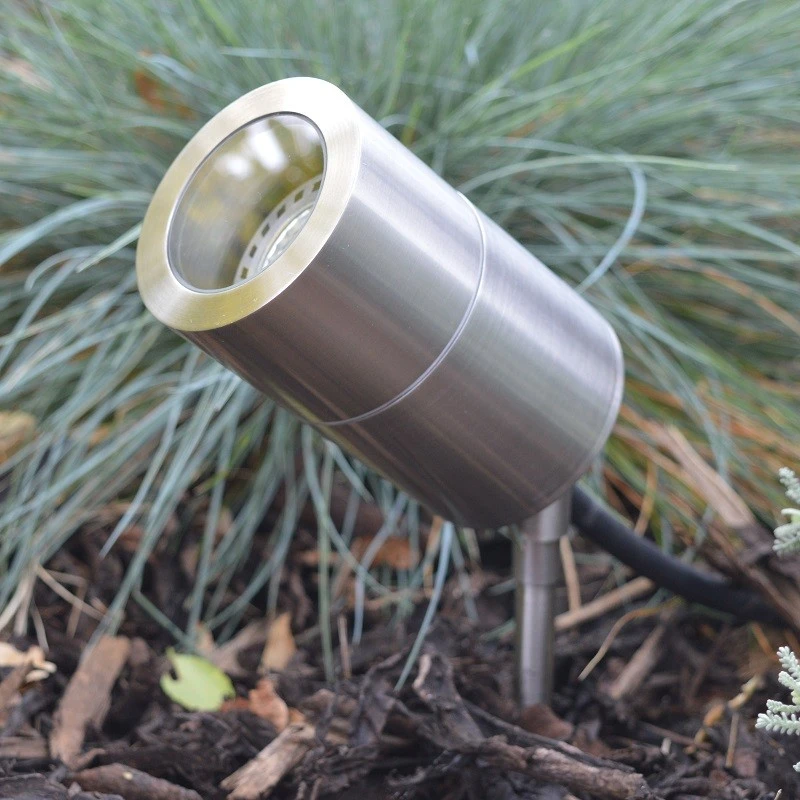

The E4111N LED spotlight is a fully adjustable 12v garden spike spot, typically used for garden lighting tasks such as spotlighting
focal points, up lighting small trees with 36° beam LED lamp and shrub border lighting using a 60° lamp. Choose a 3w or
5w warm white LED lamp to uplight pergola columns. LED lamps become very cost efficient to run and are ideal for
up lighting newly planted borders or individual feature plants. Choice of 12v or 240v and colour finishes, Black, Copper and Rustic Brown.
Elipta spike spotlights have a flush glass lens to prevent water accumulation, and a longer body to shield the lamp from

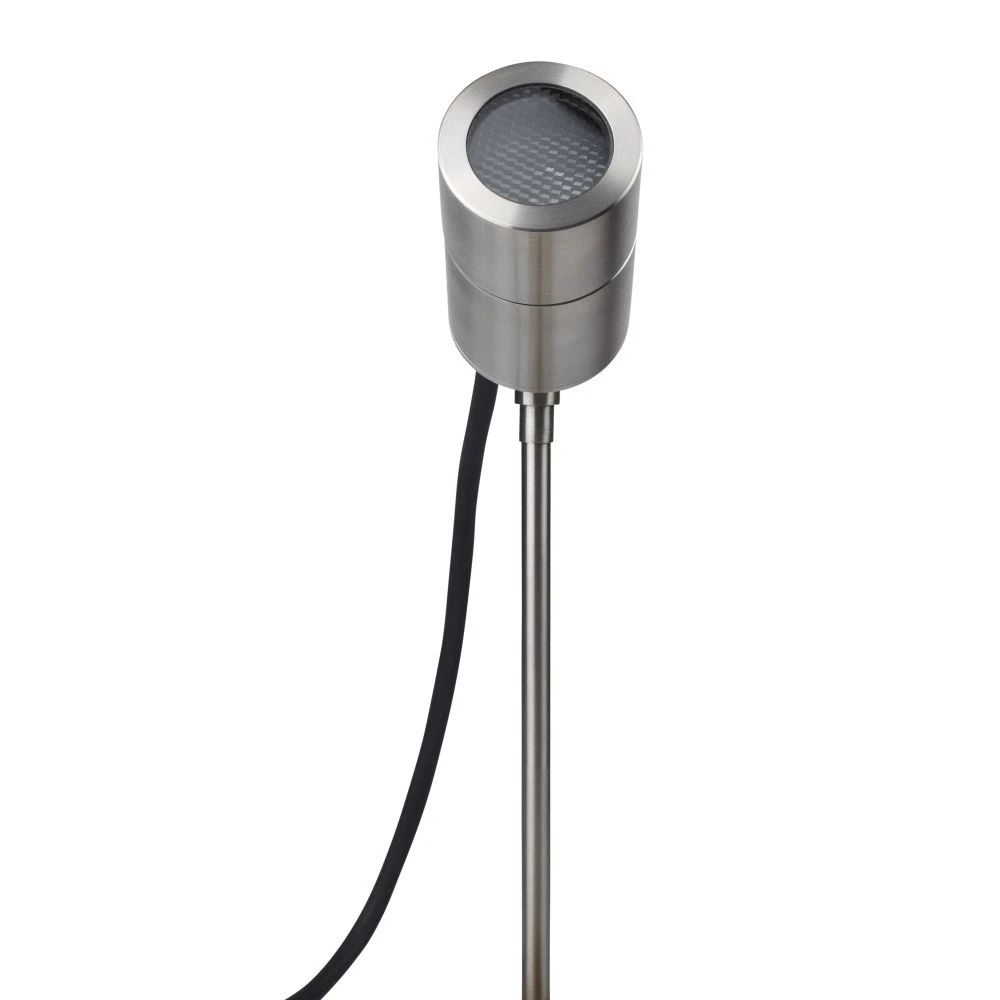

view. The spike spots can accommodate a wide range of LED lamps with varying beam angles, louvres, frosted lens and dichroic
coloured filters.
beam angles to experiment with creative garden lighting effects.

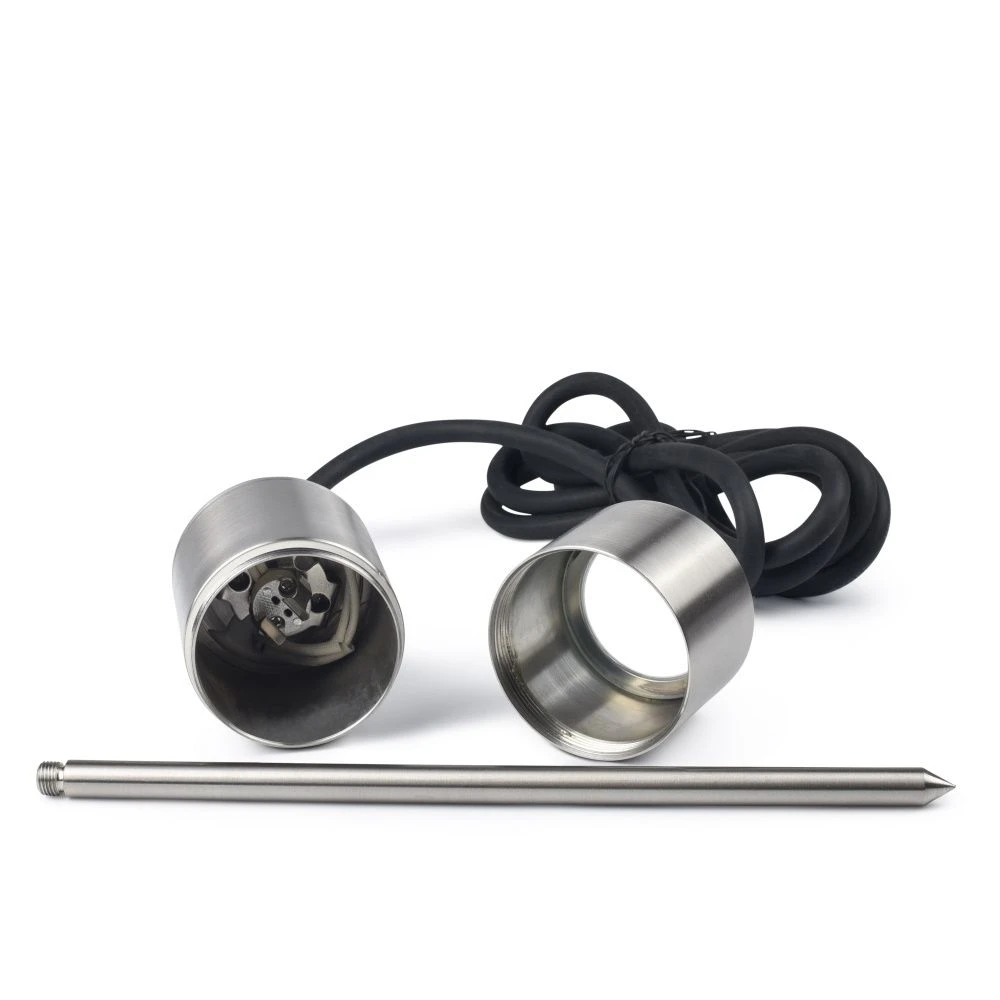

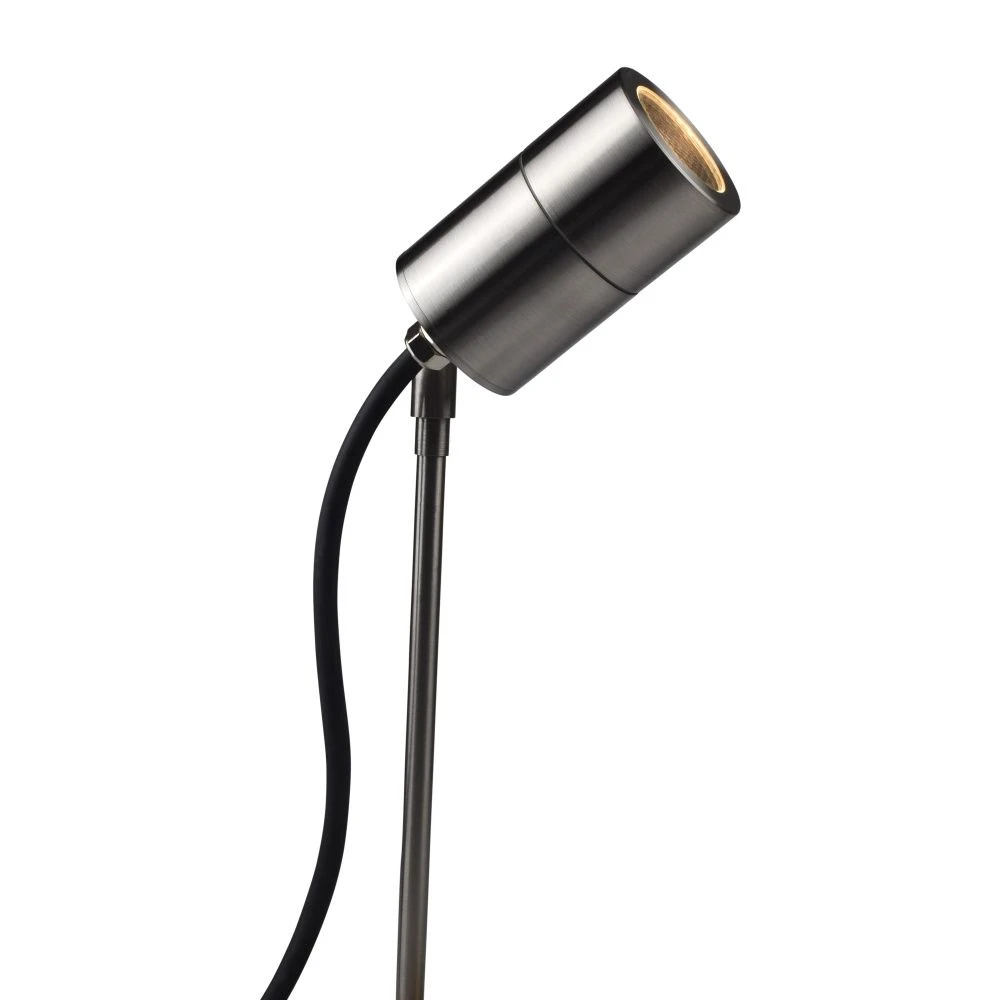

The spotlight body is made from solid metal tube and is mounted on an adjustable knuckle joint and 25cm round rod mounting
spike. Unscrewing the front bezel makes it easy to change the lamp without tools.

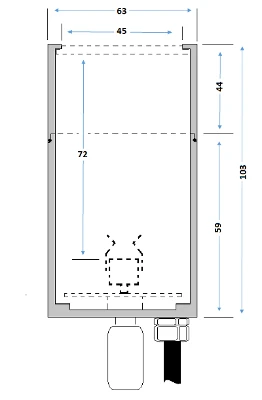

The exterior dimensions are 103mm x 63mm not including 250mm spike.

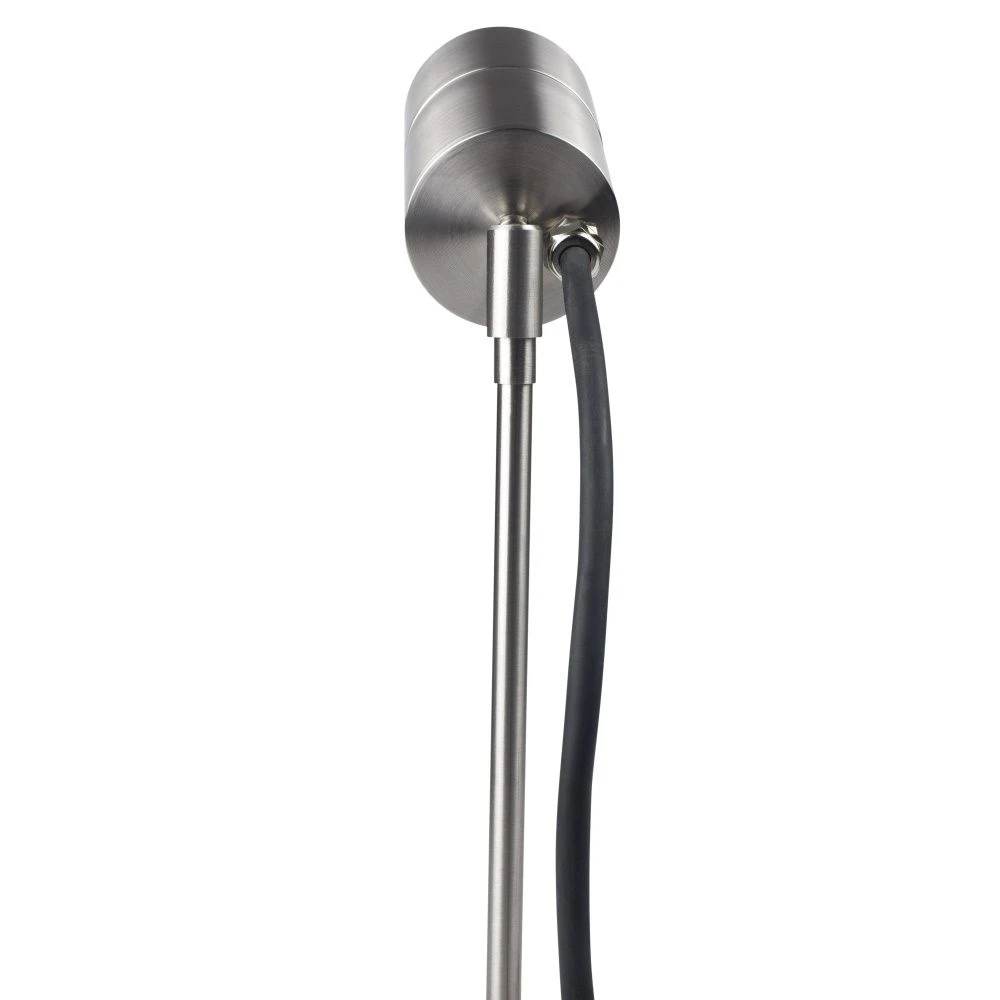

Comes pre-wired with 1,.5m of 2 core rubber cabling.
Maximum size of MR16 70mm x 45mm not including pins.
Beam distribution 15 degrees to 120 degrees.
Lamp Colour (Kelvins)
The colour of a lamp is defined as a measurement called kelvins. A standard GLS light bulb in your house would be 2,700 kelvins
which is in the warm colour spectrum and a lamp with 5,000 kelvins would be at the very cold white spectrum.
12v Installation See Instructions & Data Sheets Tab
Choosing the style of a product is only part of the equation you must also think of where that product will be used and how
it will be installed. All exterior lighting products on our web site have an IP rating appropriate to each light fitting
and its intended application and is therefore fit for purpose. Water ingress is the enemy for outdoor lighting and the
products supplied are only as good as the installation. The weakest point is always cable joints. All joints must be
made 100% watertight and this can be done using IP68 cable connectors and/or waterproof junction boxes which are then
filled with a re-enterable liquid gel mix. All joints where possible should be made above ground for easy access and
reduced water ingress. When installing ground buried lights adequate drainage systems should be put in place especially
in clay-based soil areas. If possible, use ground surface spike lights rather than a buried light. Care must be
taken with the cable runs and not to install transformers more than 30 metres away from the furthest fitting to avoid
any voltage drop. Cabling should be 2 core Rubber HO5RN-F or HO7RN-F and not PVC. PVC leads to capillary action over
time especially with UV degradation. Always check the correct type of transformer you need for your fittings. We recommend
wiring in parallel with Toroidal AC and LED DC drivers. But when using Milliamp mA LED drivers, they should always be
wired in series. Plug and Play kits are simply a case of daisy chaining the fittings via plug and play junction boxes,
connectors and extension cables using a 2-pin plug arrangement.
All exterior lights must be installed by a certified NIC EIC electrician and should be signed off by an electrician with
Part P certification. There are a selection of waterproof jointing kits and boxes available on this web site.
