Compact – Outdoor Fixed Down Wall Light – 12v Copper IP65 MR16


Compact 12v – Copper IP65 MR16 – Fixed Down Light Wall Light

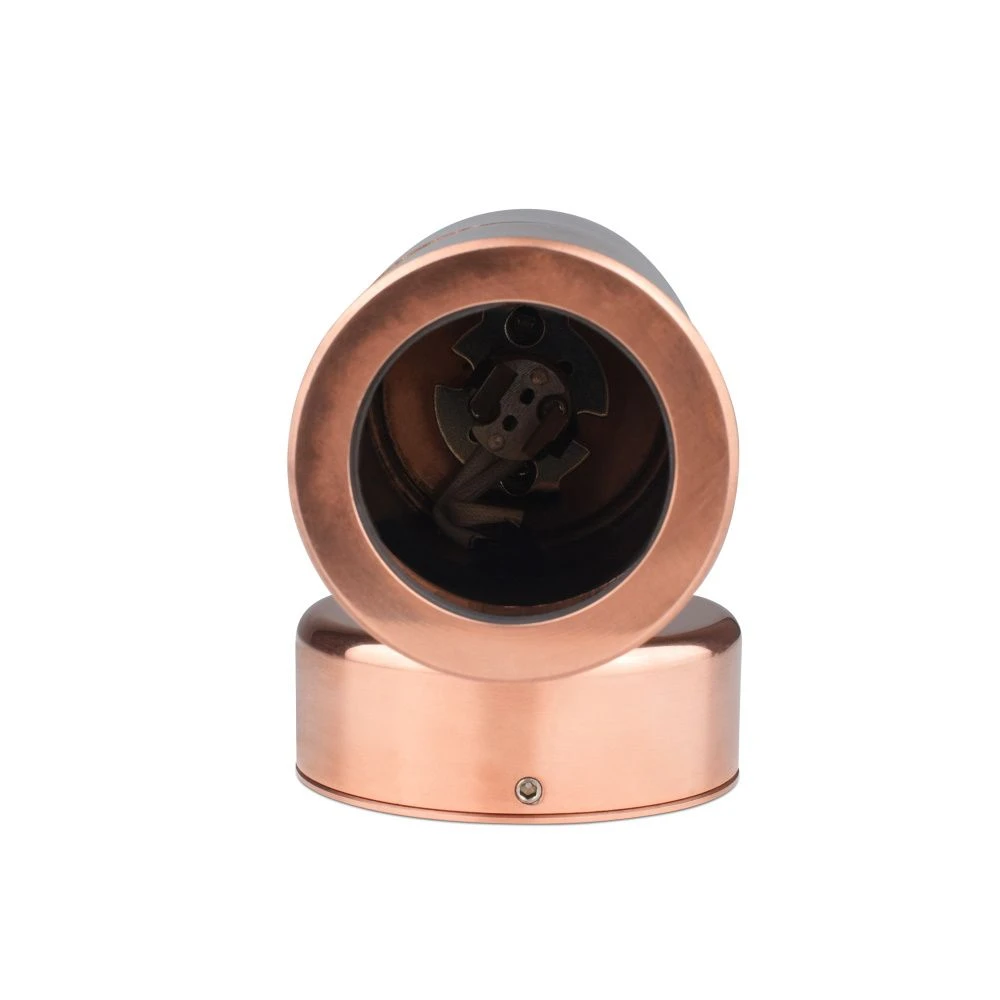

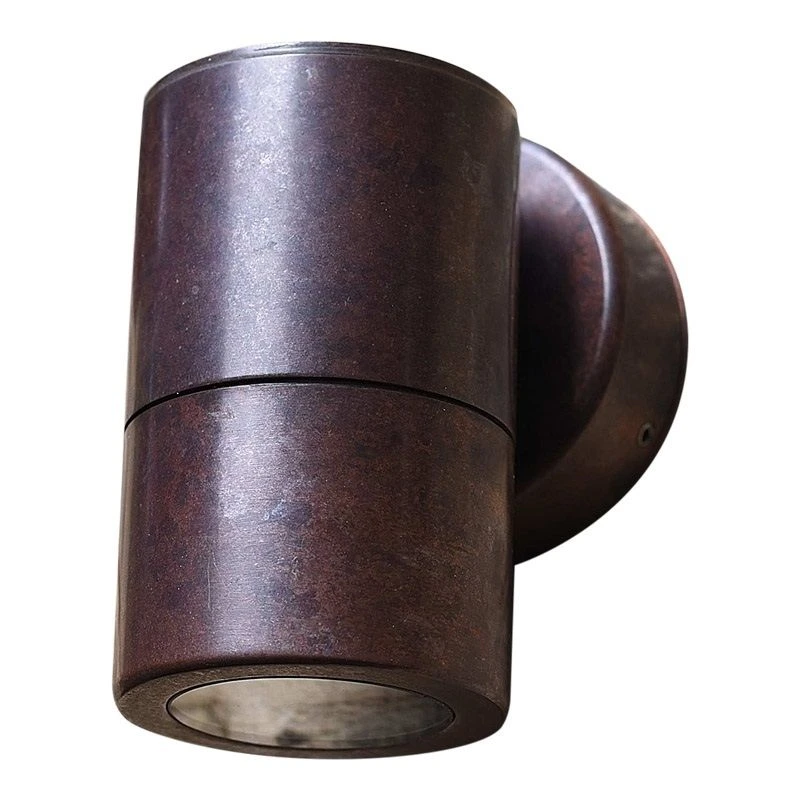

E4321L is a 12v compact wall light made from solid natural copper which naturally weathers over time. A regular application
of a suitable metal polish will maintain the factory finish if required. It has a flush, tempered glass lens to prevent water
accumulation, and a longer body to shield the lamp from view. It can accommodate a wide range of MR16 LED lamps.

The Compact fixed down light is an IP66 rated down light measuring 103mm x 63mm, mounted on a 77mm diameter x 25mm high base. The light
stands proud from the surface by 90mm. There is sufficient distance internally between the lamp holder and the lens (72mm) to permit
the fitting of optional glare louvre (E4010), frosted lens (MR16AFL) and a range of Dichroic clip on colour filters.

An ideal fitting for down lighting on posts and pergolas.

Installation

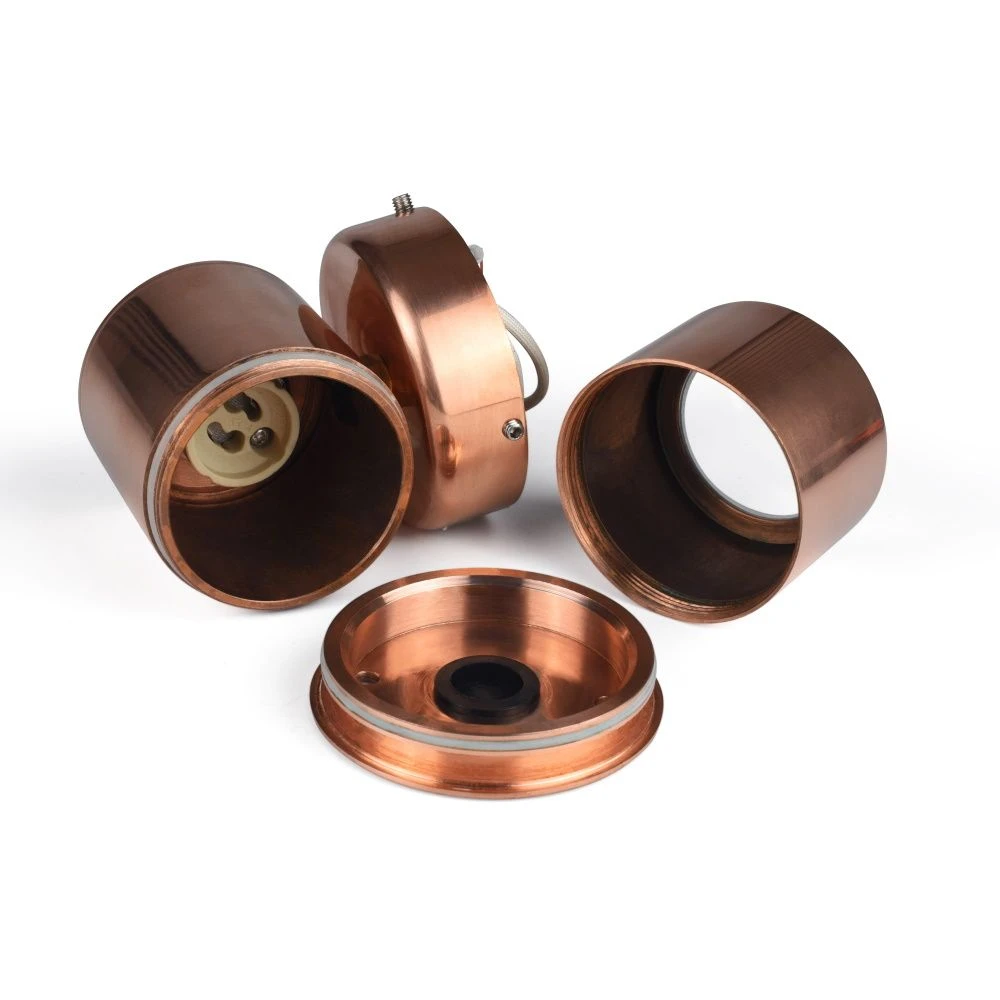

Unscrew bezel and insert lamp. Apply small amount of grease to thread and screw bezel back on to the body of the light.
Use supplied fixings to attach base plate to the wall in desired location having fed the cable through the grommet on the
rear of the mounting base. The use of T9990 sealant is recommended for effective seal around the cable entry. Cable connection
is made via a terminal block inside the base. Secure light to the base by tightening up the three grub screws.

Lamp Colour (Kelvins)

The colour of a lamp is defined as a measurement called kelvins. A standard GLS light bulb in your house would be 2,700 kelvins
which is in the warm colour spectrum and a lamp with 5,000 kelvins would be at the very cold white spectrum.
