Elipta Compact outdoor wall spotlights are adjustable wall or post mount spotlights for downlighting and accent lighting
focal points available 12v or 240v in 316 stainless steel, natural copper and black or brown powder-coated aluminium.
The E4222S is a 240v model using GU10 LED lamps which means there is no need for a bulky transformer base and they fit mains

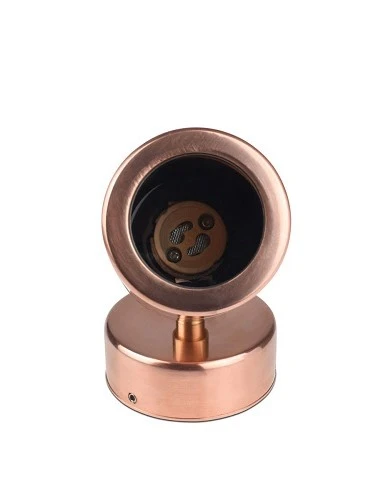

wiring points on house walls and pillars. It has a flush lens which sheds water and dirt and is easy to clean. 3 watt
lamps are ideal for threshold lighting over a door; 5 watts is an optimum choice for many patio lighting applications.
3w or 5w led lamps provides a long life, low energy option for lighting smaller subjects, while 7w lamps provide a broad
wash of light for patios.

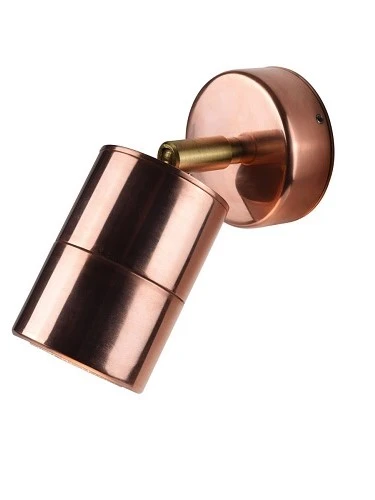

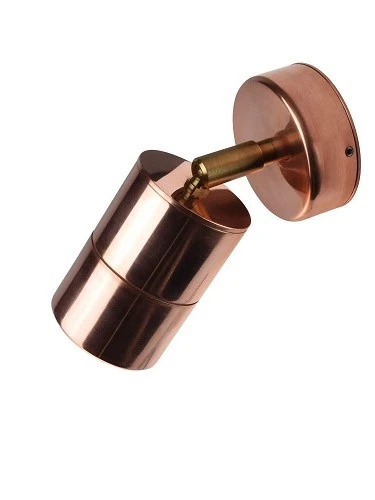

The tubular metal spotlight body is mounted on an adjustable knuckle joint and 75mm diameter enclosed mounting base with back
plate, grommeted rear cable entry and connection terminals. Unscrewing the front bezel makes it easy to extract and change
the lamp without tools .
Screw back plate onto wall, post or Besa box. Seal wall fixing holes with silicon sealant. Mount spotlight base onto to back
plate with grub screw fixings allowing rotation of the body to achieve full “pan and tilt” adjustment.
Lamp Colour ( Kelvins )
2,700 kelvins which is in the warm colour spectrum and a lamp with 5,000 kelvins would be at the very cold white
spectrum.
Installation 220 – 240v – See Instructions & Data Sheets Tab=”center”>
All exterior lighting products on our website have an IP rating which is explained further in our Technical
Help/Products section but in simple terms the IP rating is appropriate to each light fitting and its intended
application and is therefore fit for purpose.
