Compact Bollard – Aluminium Black Powder Coated Spike Mounted Light IP66 12v G4 – 270mm Height

The Elipta compact bollard spike light Uses a 2w, 3w or 4w cap LED lamp and this fitting is recommended for driveway and path lighting, especially if timer-operated for long

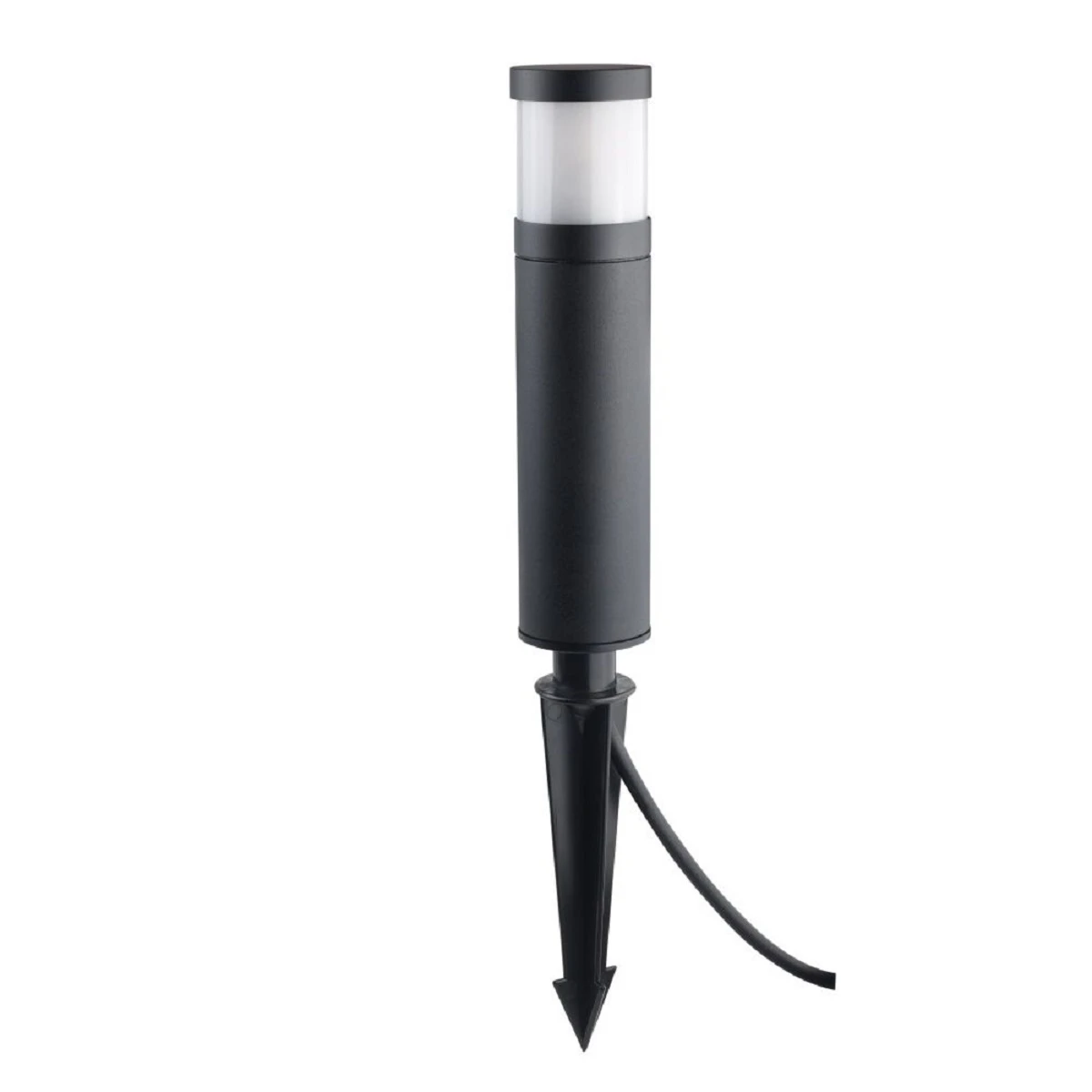

periods. This minimises energy consumption and lamp replacement. This bollard light is supplied as standard with a 200mm finned

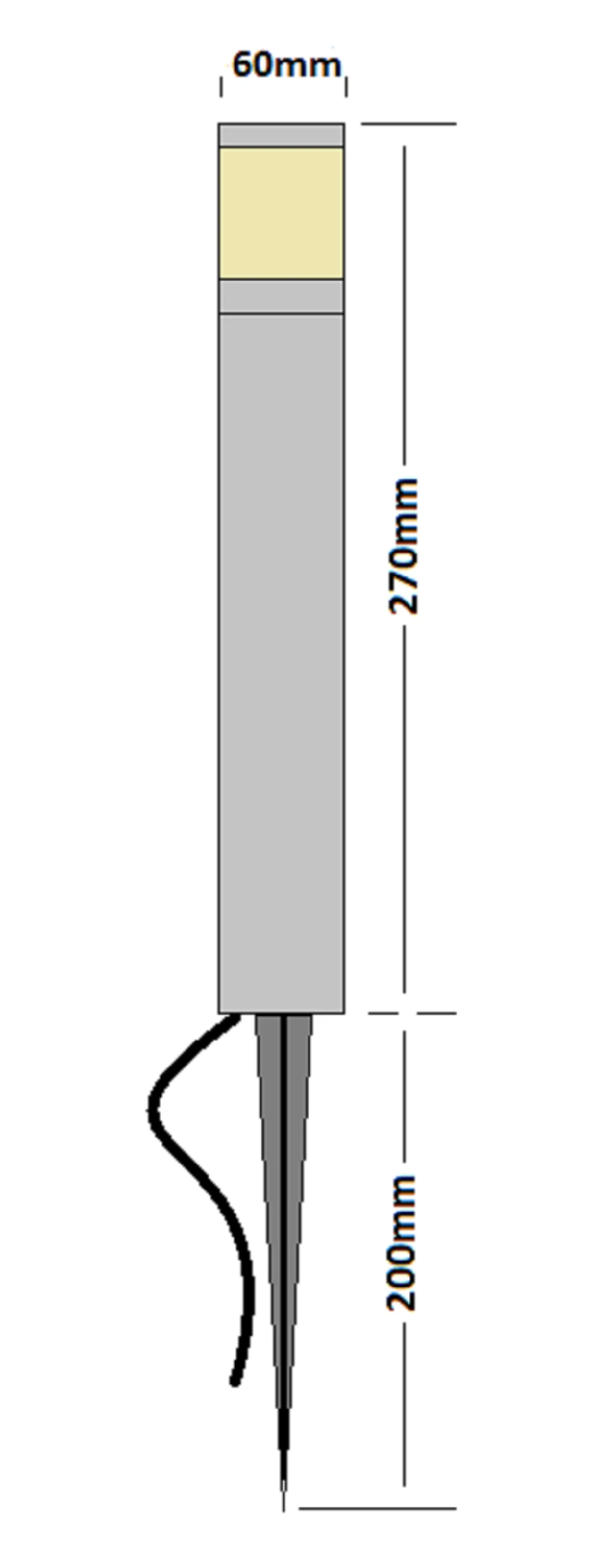

spike for installation in soil and gravel. The height is 270mm and diameter 60mm.

Pre-wired with 2m rubber cable.

12v fittings will require 12v transformers to power them and to regulate the voltage from the mains 220-240v to 12v using the transformer.

You can of course use one transformer to power a number of fittings and this will be based on the total wattage of the LED lamps used.  For example 4 x fittings using 4w LED bulbs = 16w  and a 20w (20va) transformer will suffice.

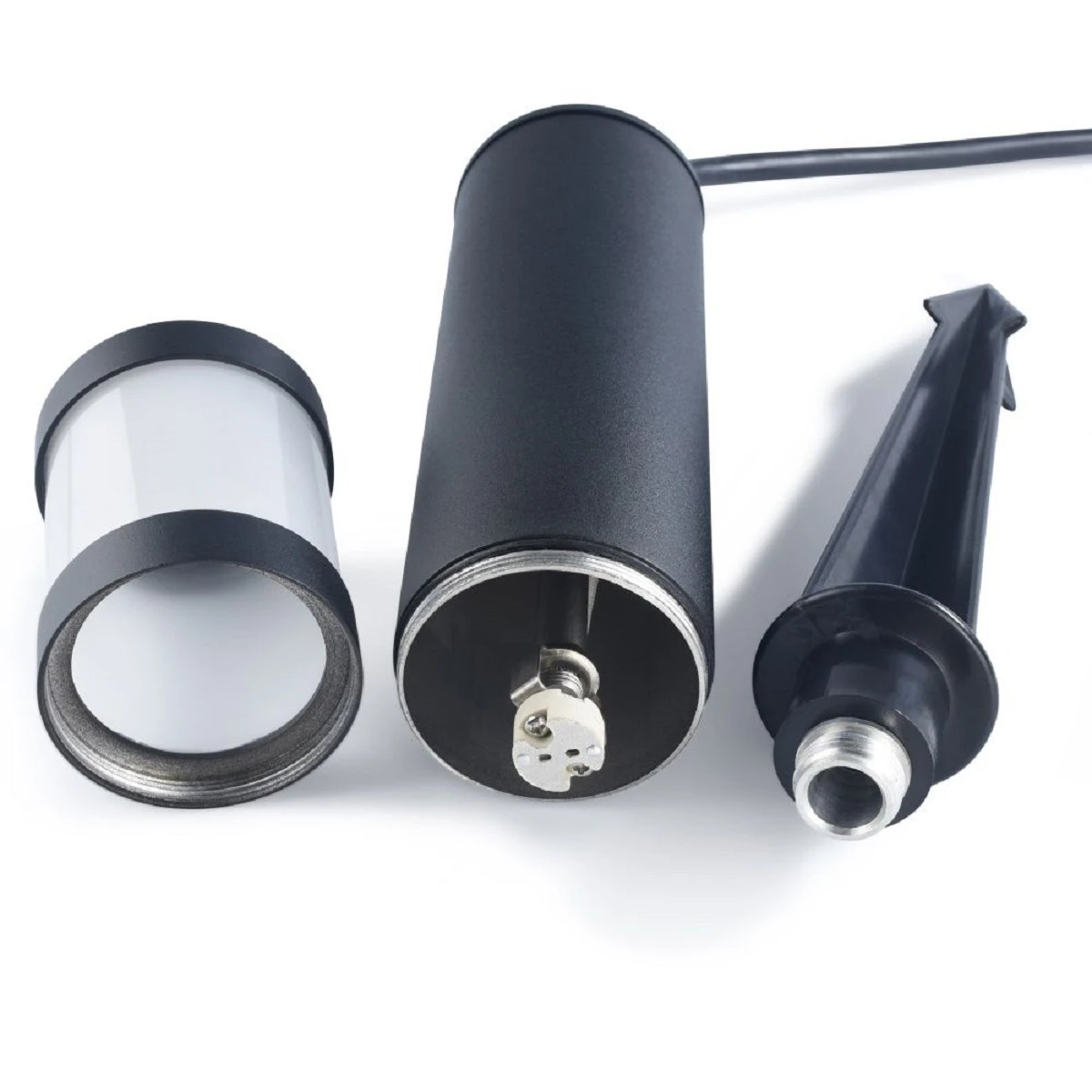

The colour finish is Black powder coated aluminium and ideal for garden settings. Machined from solid metal tubing with stainless steel spike. Polycarbonate diffuser is framed by top cap and screw on base ring which allows the top to be unscrewed for easy lamp replacement. The fitting comes pre-wired with 2m of rubber cable. This fitting can be connected with cable joint kits (code T9962), cable splice kits (code T9963), a junction box or a T9969 underground joint kit.

The fitting is rated at IP66.  Ensure soil is loose enough for spiking into the ground.  Forcing the spike into hard soil may damage the fitting.

The fitting has a 2 year warranty.

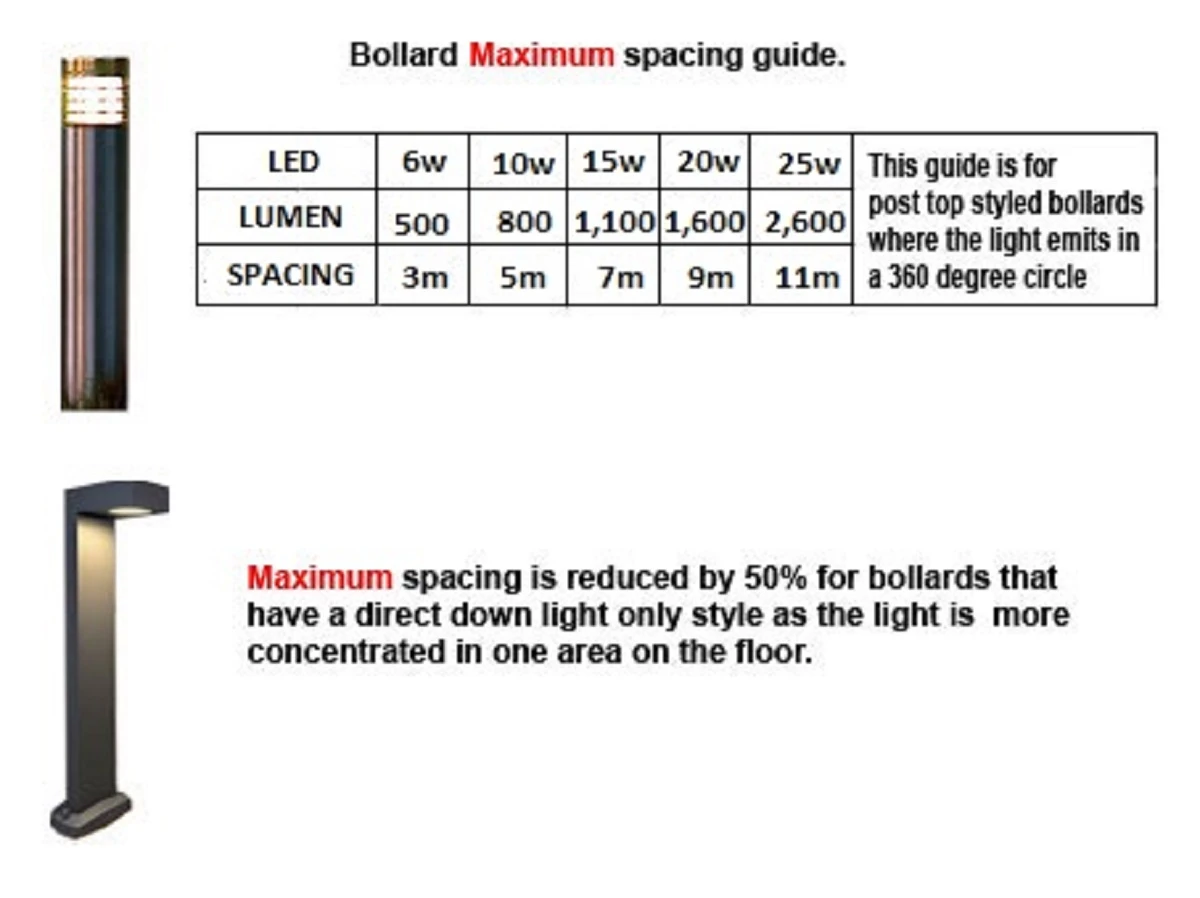

 Bollard types and spacing
