Compact 240v – Rustic Brown Powder Coated Aluminium IP65 GU10 – Adjustable Spot Wall Light
focal points available 12v or 240v in 316 stainless steel, natural copper and black, white or brown powder-coated aluminium.
E4272 is a 240v model using GU10 LED lamps which means there is no need for a bulky transformer base and they fit mains
wiring points on house walls and pillars. It has a flush lens which sheds water and dirt and is easy to clean. 3 watt
lamps are ideal for threshold lighting over a door; 5 watts is an optimum choice for many patio lighting applications.
3w or 5w led lamps provides a long life, low energy option for lighting smaller subjects, while 7w lamps provide a broad
wash of light for patios.
your garden and outdoor space.

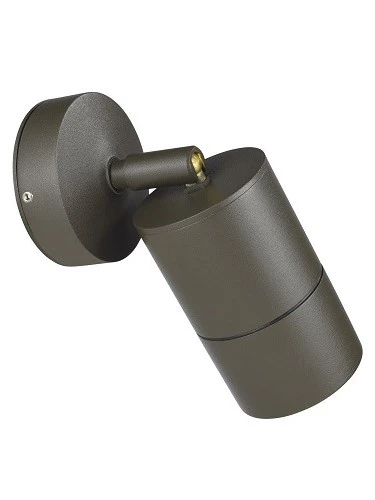

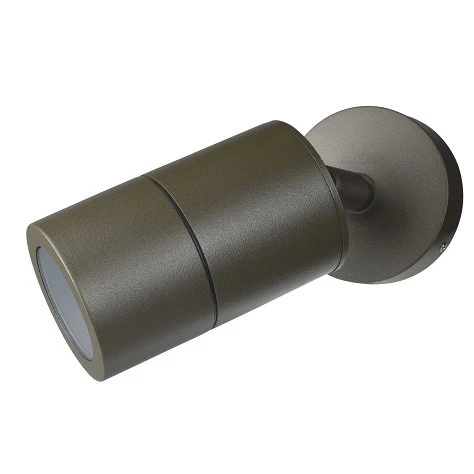

The tubular metal spotlight body is mounted on an adjustable knuckle joint and 75mm diameter enclosed mounting base with

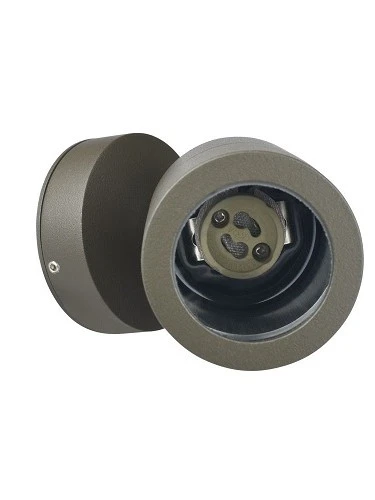

back plate, grommeted rear cable entry and connection terminals. Unscrewing the front bezel makes it easy to extract
and change the lamp without tools .
Screw back plate onto wall, post or Besa box. Seal wall fixing holes with silicon sealant. Mount spotlight base onto
to back plate with grub screw fixings allowing rotation of the body to achieve full “pan and tilt” adjustment.
Lamp Colour ( Kelvins )
2,700 kelvins which is in the warm colour spectrum and a lamp with 5,000 kelvins would be at the very cold white
spectrum.
Installation 220 – 240v – See Instructions & Data Sheets Tab=”center”>
All exterior lighting products on our website have an IP rating which is explained further in our Technical
Help/Products section but in simple terms the IP rating is appropriate to each light fitting and its intended
application and is therefore fit for purpose. Water ingress is the enemy for outdoor lighting and the products
supplied are only as good as the installation as the weakest point is always cable joints. All joints must be
made 100% water tight and this can be done using IP68 inline connectors, waterproof junction boxes which are
then filled with a resin or gel mix. All joints where possible should be made above ground for easy access and
reduced water ingress. When installing ground buried lights adequate drainage systems should be put in place especially in clay based soil areas.
All exterior lights must be installed by a certified NIC EIC electrician and should be signed off by an electrician
with Part P certification. There are a selection of waterproof jointing kits and boxes available on this
web site.
