Chilham – Commercial Bollard Black Die-Cast Aluminium 960mm Tall 30w LED IP55 240v IK10 With Several Options Available

The Chilham is one of a range of British Manufactured Kent Named Commercial Bollards. The 30w & 40w Chilham are only available in a 960mm height options (this is due to the size of the internal LED driver).

The 10w and 20w versions are also available in 660mm height.

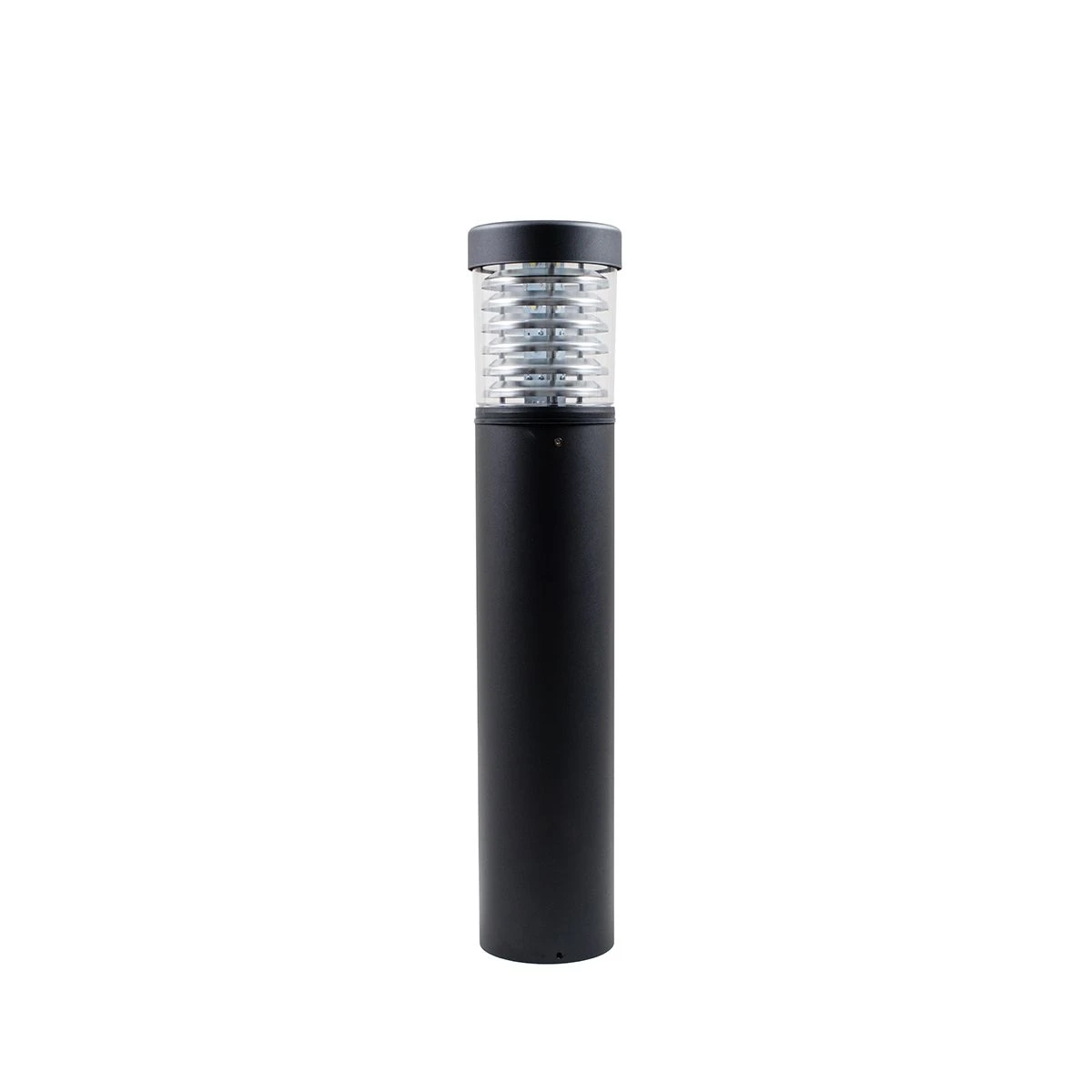

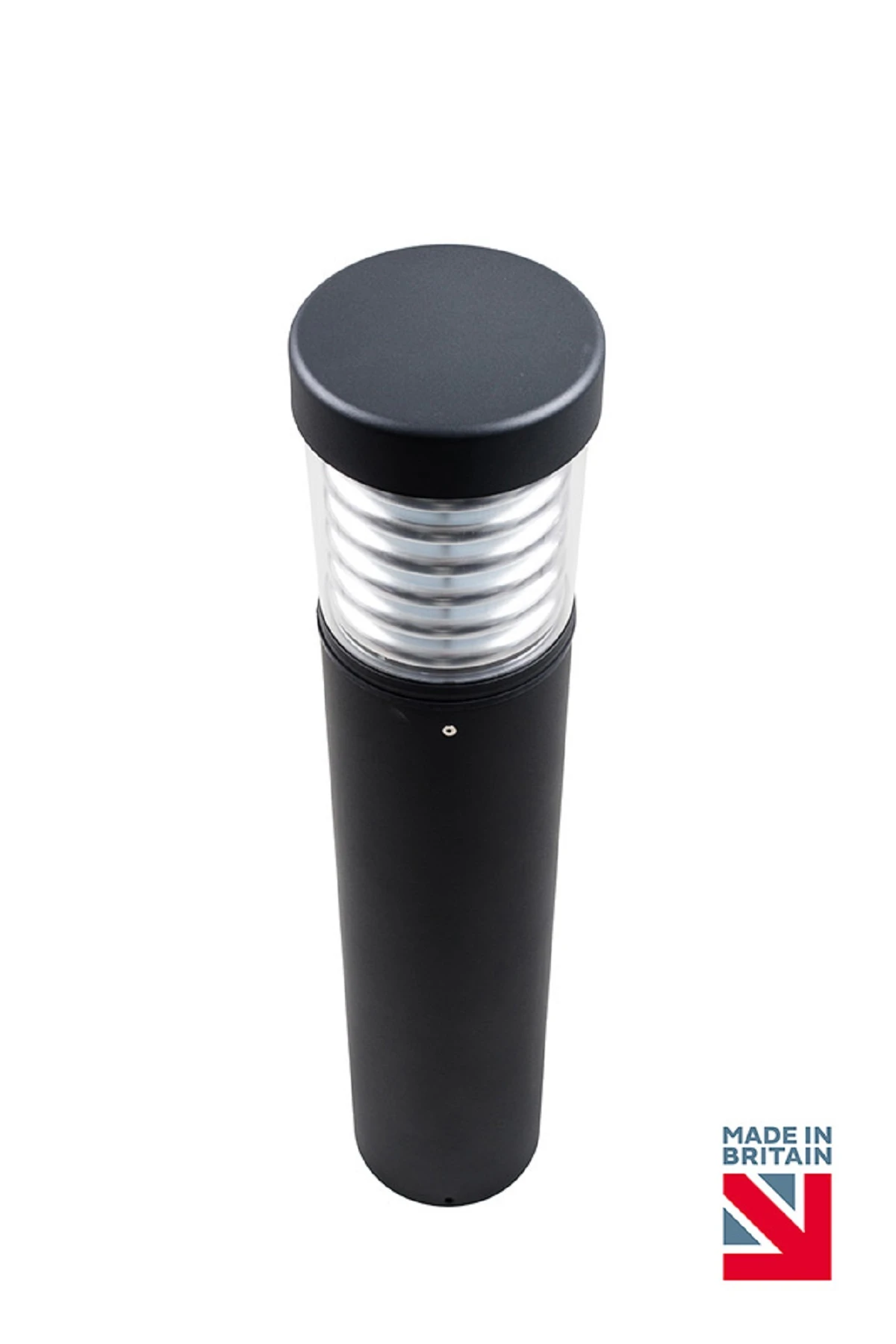

The 30w Chilham is available in 960mm and is a modern and stylish IP55 / IK10 rated black die-cast aluminium LED Bollard. Manufactured from extruded die-cast aluminium, featuring aluminium louvres for optimum performance and a transparent strong UV stabilised polycarbonate diffuser. It stands 960mm tall and is 180mm in diameter.

They are manufactured to order and cannot be returned.  The timeframe for manufacturing to delivery is approximately 7 working days. Please check with us when you wish to place an order so we can check production for you to verify the timescale.

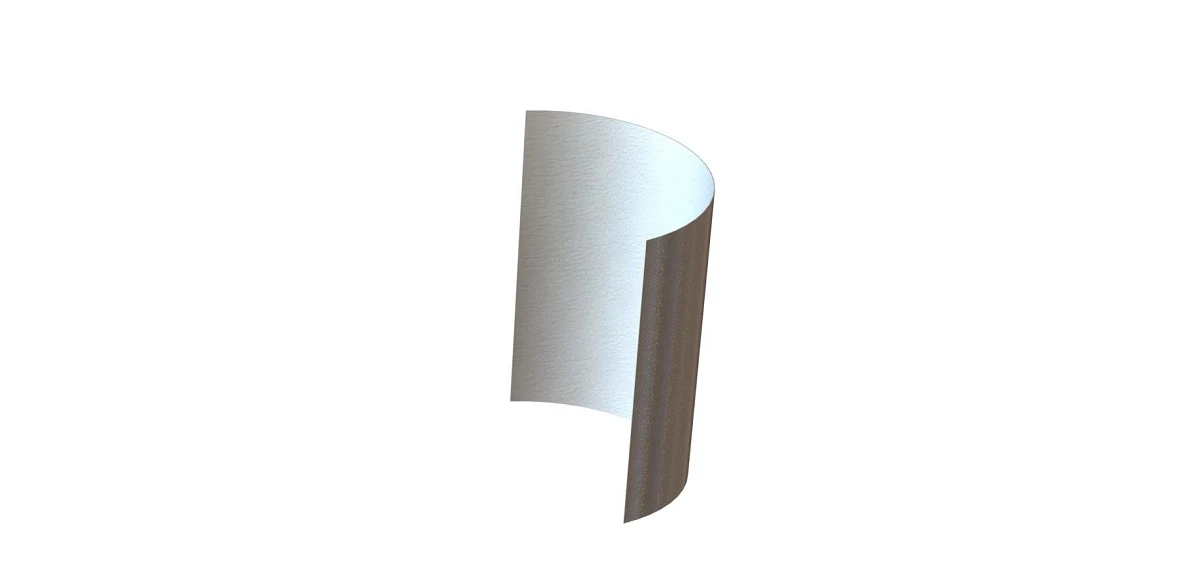

Options available include 300mm deep bolt-on root, 180° spill shield and 3hr emergency battery.  A choice of wattages and colour temperatures.

The 30w Chilham Bollard gives out 3,920 lumens from either the cool white 6000k version or the Neutral white 4000k. The warm white 3000k version gives out 3,316 lumens.

The bollard comes as a standard surface mounted bollard, however there is a 300mm bolt on root mount available.

The Osram LED has a lifespan of 100,000 hours and can be replaced.  Being a commercial bollard they can be fitted with a 3  hour emergency battery too.

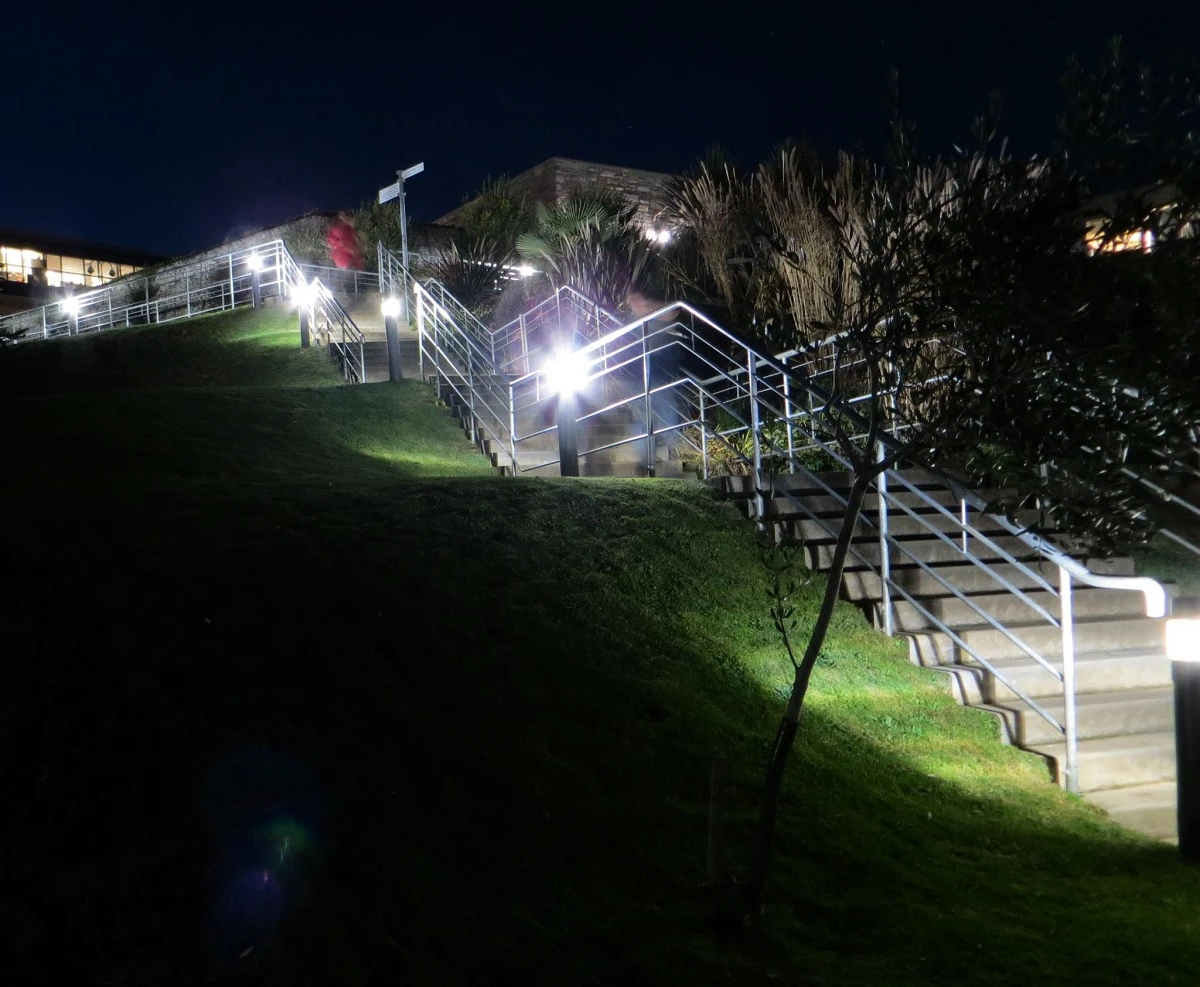

Ideal for specifying for Car Parks, Parks and Gardens, Walkways, Security, Amenity and Prestigious grounds.

Features & benefits

• LED rating 3,920lm (6000K & 4000K).
• One height option 960mm
• LED rating 3,316lm (3000K).
• Luminaire flux 2,783lm (6000K & 4000K).
• Luminaire flux 2,355lm (3000K).
• Total wattage 30W.
• 6000K (CW), 4000K (NW) and 3000K (WW) colour temperature.
• -20 to +40°C operating temperature (Emergency 0 to +40°C).

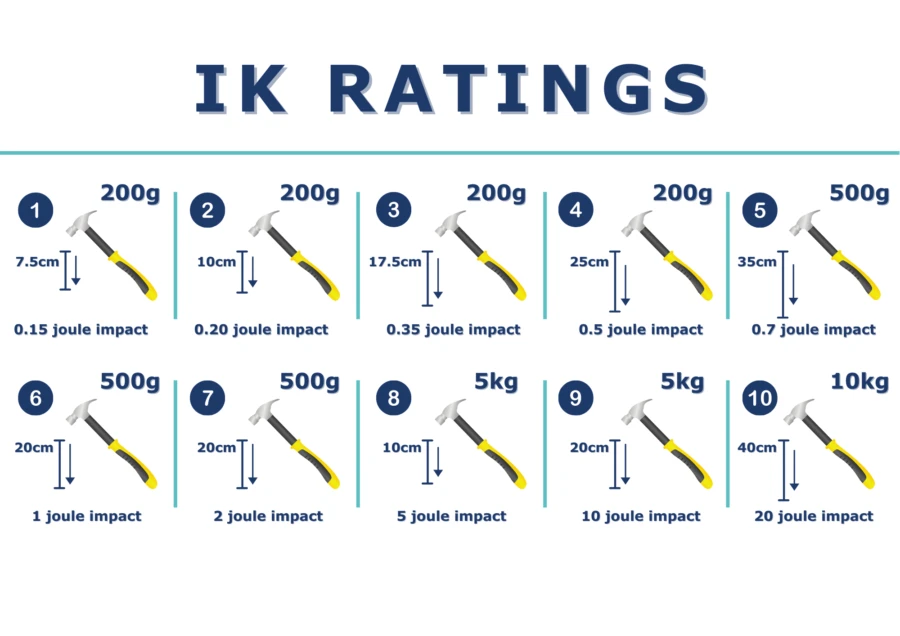

• IP55/IK10 rated.
• LED life span > 100,000hrs.
• Standard Weight 6.25Kg/7.25Kg.
• Osram LED and Osram Driver.
• Easy access to LED and Driver via a removable head.
• Options available include bolt-on root, 180° spill shield and 3hr emergency.
• Aluminium louvres for optimum performance and minimal upward light.
• Tamper proof fixings for increased vandal resistance.
• 304 stainless steel with strong UV stabilised polycarbonate lens.

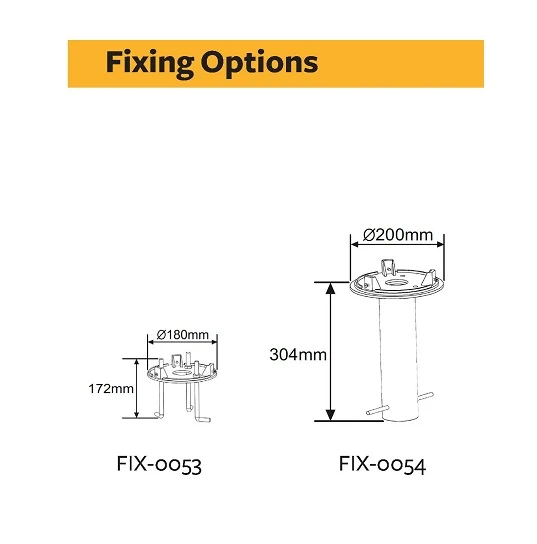

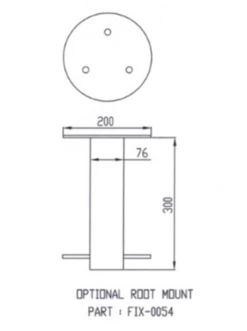

The bolt on root mount is 300mm deep with a 200mm through bolt at the bottom
