Caverna In-Wall / Step Light – 316 Stainless Steel – MR16 – 12v – Open Ended Cable
Original price was: $92.40.$64.68Current price is: $64.68.
- Free and fast shipping worldwide
- Experience the Best Quality
- Online assistance, always at your service.
- Shop with confidence, we guarantee quality.

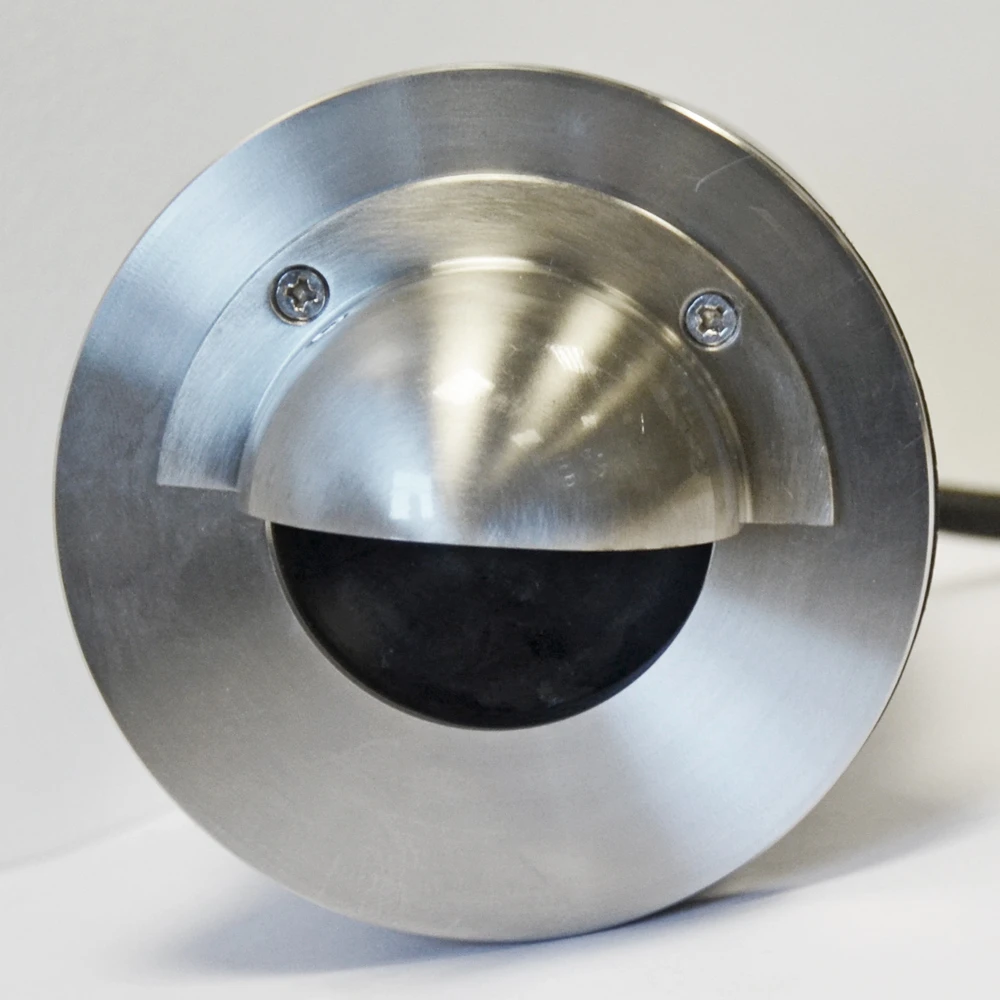

Caverna In-Wall / Step Light – 316 Stainless Steel – MR16 – 12v
The Caverna are in wall lights or step lights crafted from ultra-durable Marine Grade 316 Stainless Steel, with a rounded
cavern like shield. This acts to divert all the light in one direction without glare. It is ideal for steps as well as
dimly lit access areas.
The robust black plastic sleeve is to protect the Stainless Steel step light and assist with installation. The sleeving should
be built into the wall during construction or retrofitted into a drilled out hole. The main part of the step light then
pushes into the tube, where it holds firmly in place.
The Caverna has approx. 3m of H05RNF cable, which gives the option of up to a 6m space between two lights should it
be required with only one cable join. Lights can also be installed across a wider area with longer cable length and could
cut down the number of cable joins dramatically.
Please note: This fitting must be installed with the mounting sleeve and additional rubber seal. If the sleeving and seal is not used, the Guarantee will be void. Not for use in areas prone to water-logging or flooding.
Installation 12v
Choosing the style of a product is only part of the equation you must also think of where that product will be used and
how it will be installed. All exterior lighting products on our web site have an IP rating appropriate to each light
fitting and its intended application and is therefore fit for purpose. Water ingress is the enemy for outdoor lighting
and the products supplied are only as good as the installation. The weakest point is always cable joints. All joints
must be made 100% watertight and this can be done using IP68 cable connectors and/or waterproof junction boxes which
are then filled with a re-enterable liquid gel mix. All joints where possible should be made above ground for easy
access and reduced water ingress. When installing ground buried lights adequate drainage systems should be put in
place especially in clay-based soil areas. If possible, use ground surface spike lights rather than a buried light.
Care must be taken with the cable runs and not to install transformers more than 30 metres away from the furthest
fitting to avoid any voltage drop. Cabling should be 2 core Rubber HO5RN-F or HO7RN-F and not PVC. PVC leads to capillary
action over time especially with UV degradation. Always check the correct type of transformer you need for your fittings.
We recommend wiring in parallel with Toroidal AC and LED DC drivers. But when using Milliamp mA LED drivers, they
should always be wired in series. Plug and Play kits are simply a case of daisy chaining the fittings via plug and
play junction boxes, connectors and extension cables using a 2-pin plug arrangement. These Plug and Play fittings
should only be used for small domestic projects due to voltage drop over 5 metres.
All exterior lights must be installed by a certified NIC EIC electrician and should be signed off by an electrician with
Part P certification. There are a selection of waterproof jointing kits and boxes available on this web site.
| Bulb Type Bulb type used for fittings | MR16 |
|---|---|
| Cabling | 2 Core 0.75mm² H05RN-F Rubber Cable (3.0) |
| Colour Colour of fitting | Silver |
| IP Rating Ingress Protection - a two digit code representing water resistance. | IP67 |
| Materials | Stainless Steel |
| Voltage Voltage of fitting, Light Bulb or Transformer | 12v |
