Canon PIR Sensor – Outdoor Up/Down Security Wall Light 240v – Polished Stainless Steel IP44 2 X GU10
Original price was: $49.92.$34.94Current price is: $34.94.
- Free and fast shipping worldwide
- Experience the Best Quality
- Online assistance, always at your service.
- Shop with confidence, we guarantee quality.

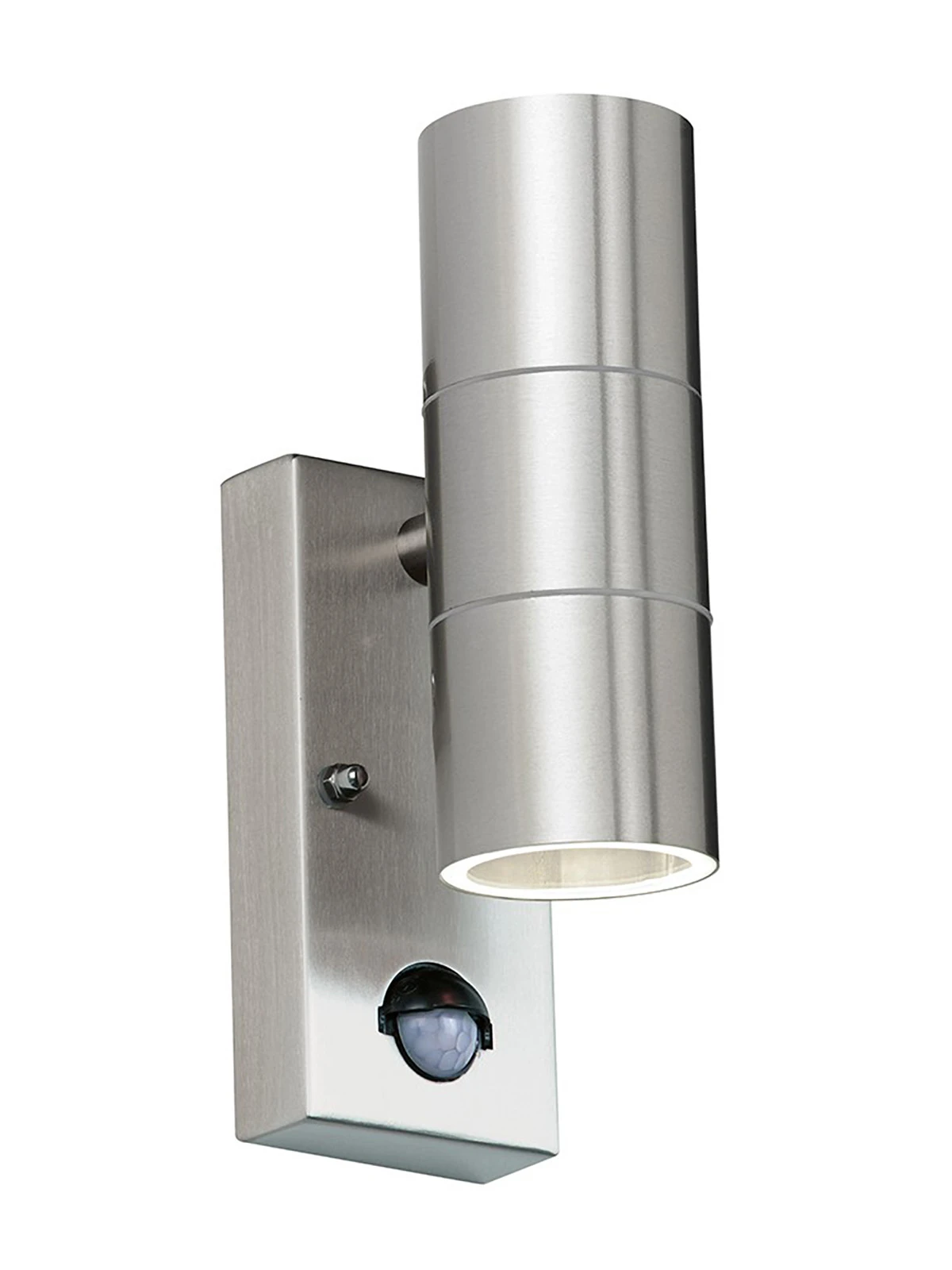

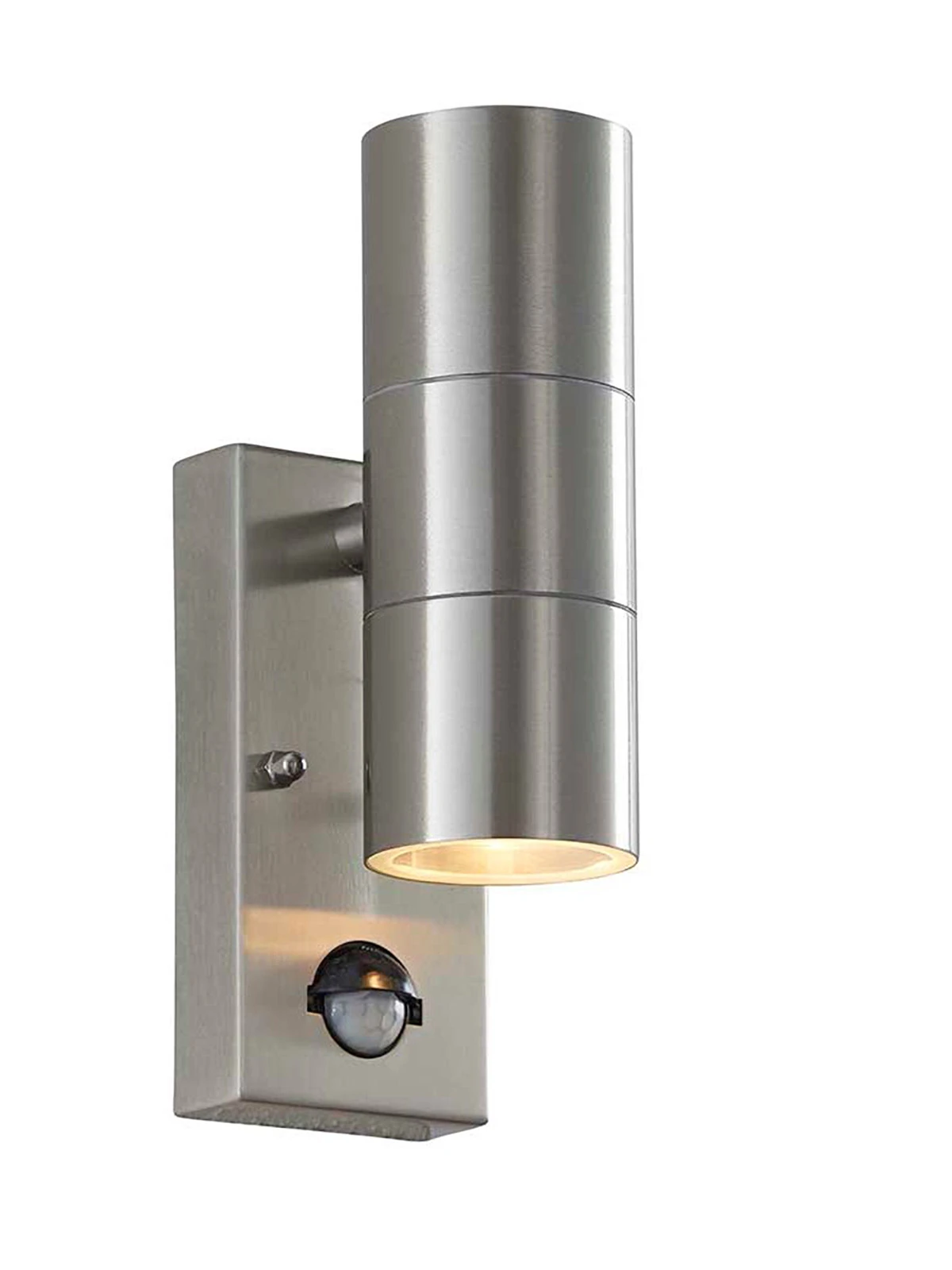

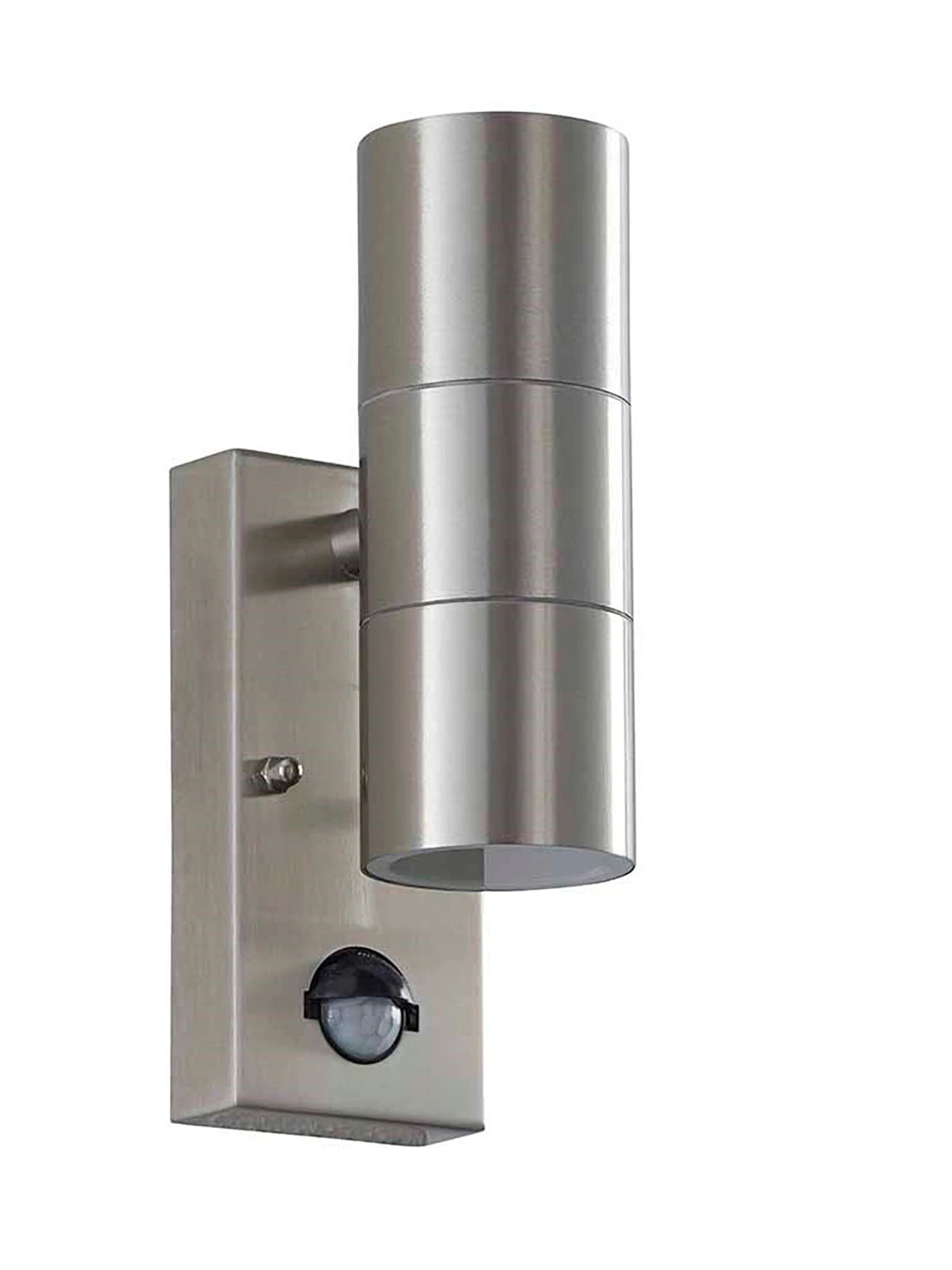

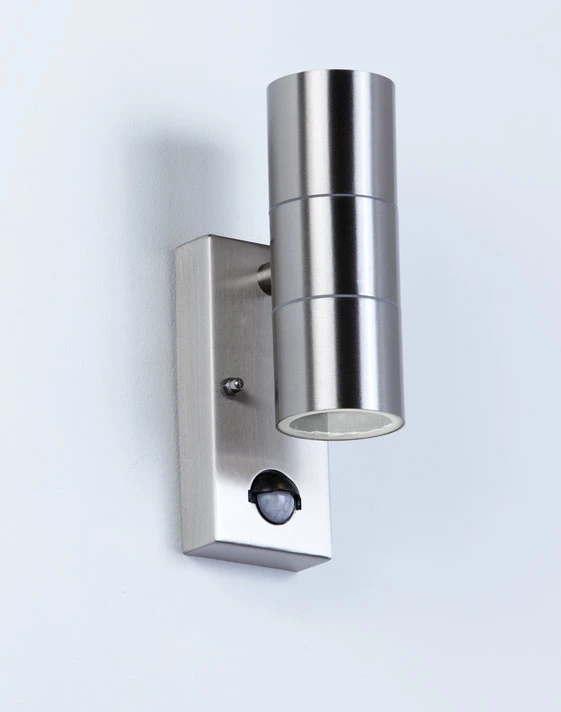

Canon Up/Down 240v – Polished Stainless Steel IP44 2 x GU10 Security Wall Light With PIR Sensor
The Canon polished stainless steel up/down security wall light is a twin mains lamp fitting with a built in PIR sensor. One of our modern and high selling exterior security wall lights and one which compliments the outside of your home.
The mains 240v fitting has a clear glass lens and you can use 2 x GU10 LED bulbs up to a maximum wattage of 35w.
The PIR sensor sits at the base of the wall mount and has a detection angle of 110 degrees. The timer can be set from as little as 5 seconds to a maximum of 5 minutes.
The sensor will be activated once it is dark and will switch the light on when it detects someone within it’s range.
Comes in choice of twin wall fitting code EL-40062 or single wall light code EL-40063
NOT SUITABLE FOR COASTAL ENVIRONMENTS
- Complete with built in PIR
- 110° detection angle, 8m maximum range with a 5 sec – 5 min timer function
- Polished stainless steel & clear glass
- Constructed from stainless steel (201) & glass
- IP44
- Proj: 105mm H: 210mm W: 70mm
- Class 1
- 2 Years Warranty
- Weight: 0.9 Kg
Lamp Colour (Kelvins)
The colour of a lamp is defined as a measurement called kelvins. A standard GLS light bulb in your house would be
2,700 kelvins which is in the warm colour spectrum and a lamp with 5,000 kelvins would be at the very cold white
spectrum. Getting the right colour temperature of a lamp does matter as the warm colour wavelength helps to soften
the tone of the area and gives a warm soft relaxed feel and ideal for colourful flower beds and rockery areas
especially with wooden bark and at the other end of the scale a 4,000 to 5,000 kelvin lamp colour would be used
against a light background such as white walls or to accentuate grey blueish foliage in shrubs and small trees.
When you buy a new, energy efficient bulb, keep your application and colour scheme in mind and make sure to buy
the bulb with a colour temperature to match.
Installation – See attached Instructions & Data Sheet
This product is only suitable for connection to a 240V~50Hz supply. It is recommended that this light is installed by a qualified
electrician in accordance with current IEE Wiring Regulations and local Building Regulations. The light fitting should
be connected to a lighting circuit protected by a 5 amp fuse (or a 6 amp miniature circuit breaker). This light has an
IP44 (splash proof) rating suitable for use outdoors. For optimum detection range a mounting height of 1.8M to 2.5M metres
is recommended. Do not mount where the PIR can be activated by heat sources such as central heating vents, animals, traffic
etc. Run supply wire from a 5-amp electrical supply using double insulated 3-core cable of type H05RN-F 1.0mm2 (not supplied)
to selected site, ensuring it is adequately protected through the full length of the cable run, it must come out of the
mounting surface in line with the entry to the fitting. Except where installed in a conduit or duct , which provides
equivalent protection against mechanical damage, a cable buried in the ground shall incorporate an earthed armour or
metal sheath or both, suitable for use as a protective conductor, or be of insulated concentric construction. Buried
cables shall be marked by cable covers or a suitable marking tape. Buried conduits and ducts shall be suitably identified.
Buried cables, conduits and ducts shall be at a sufficient depth to avoid being damaged by any reasonably foreseeable
disturbance of the ground. This product contains breakable parts – be careful during handling and maintenance to avoid
breakage. The bulb, body and lid cover can become hot in use. Switch off and allow 10 minutes to cool before cleaning
(using a dry cloth only – do not use liquid or abrasive cleaners). If any part of the bulb housing is broken or cracked
then it must be replaced immediately to preserve the water ingress protection, please consult your retailer.
<
| Product Type | Single Wall Light, Twin Wall light |
|---|---|
| Sensor | PIR Motion Sensor (passive infra red) |
| Bulb Type Bulb type used for fittings | GU10 |
| Colour Colour of fitting | Silver |
| Height | 210mm |
| IP Rating Ingress Protection - a two digit code representing water resistance. | IP44 |
| Materials | Stainless Steel |
| Projection | 105mm |
| Voltage Voltage of fitting, Light Bulb or Transformer | 240v |
| Warranty | 2 Years |
| Width | 70mm |
