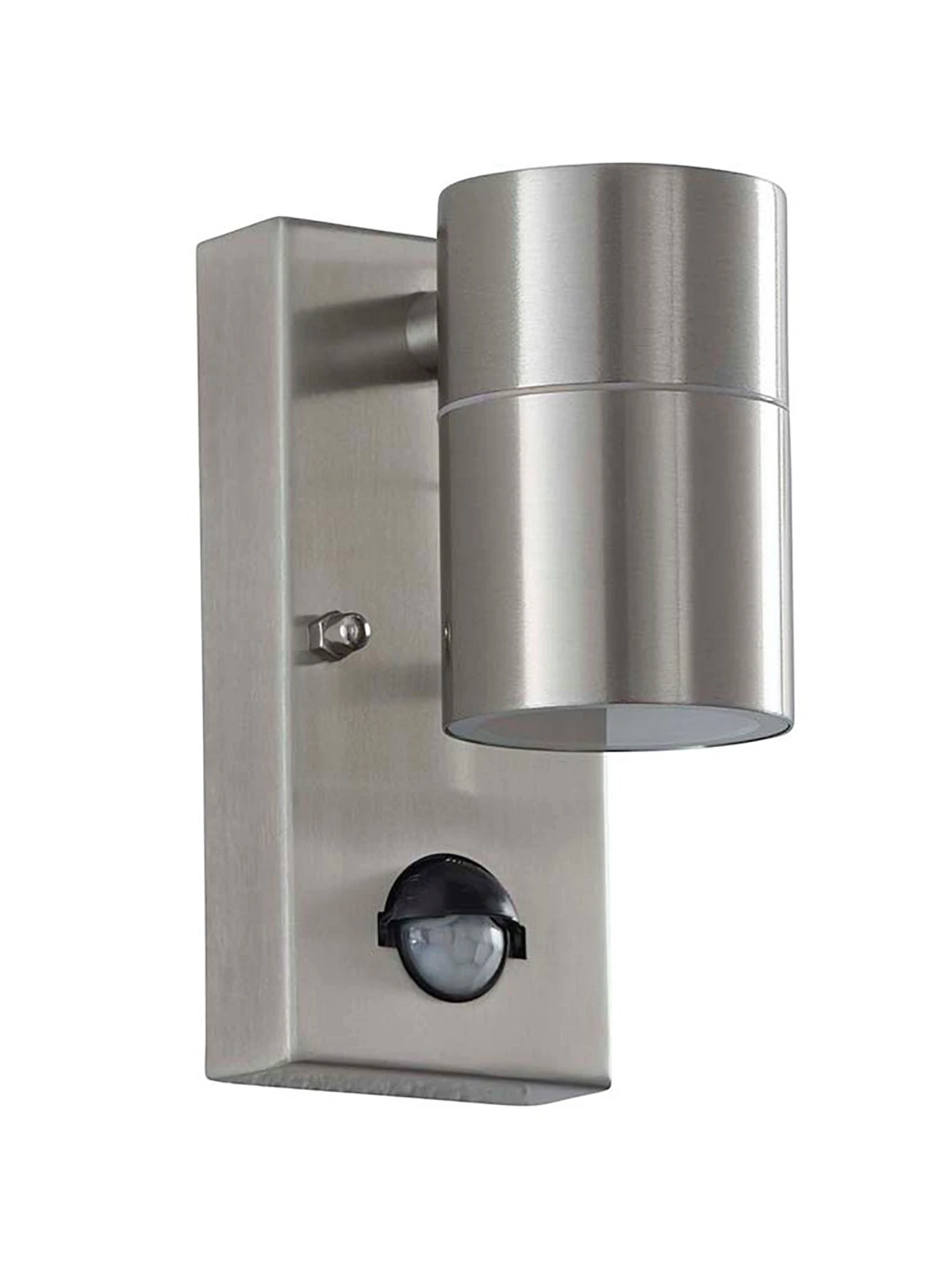

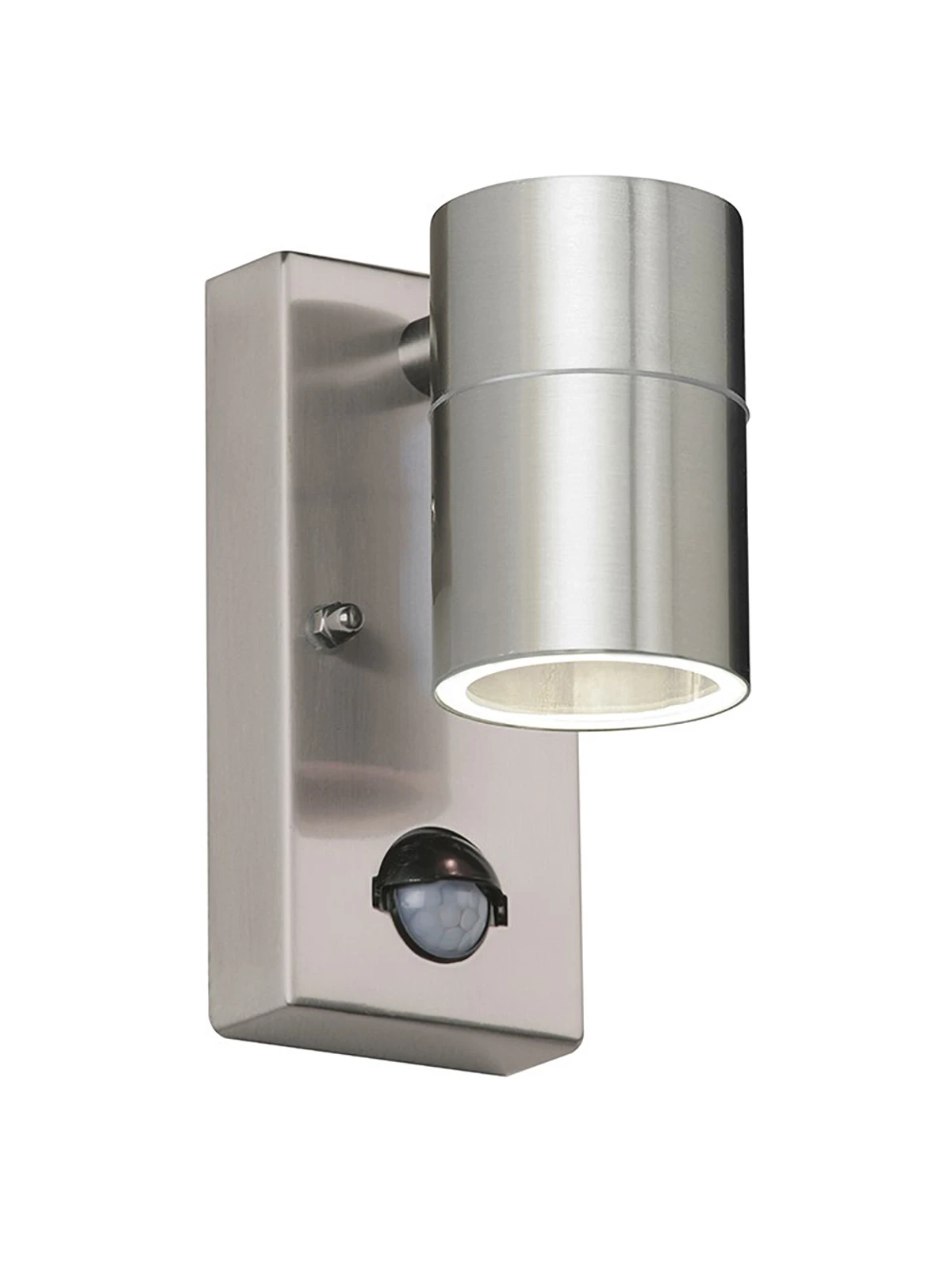

Canon Fixed Down Light 240v – Polished Stainless Steel IP44 GU10 Security Wall Light With PIR Sensor
The Canon polished stainless steel fixed down security wall light is a single mains lamp fitting with a built in PIR sensor. One
of our modern and high selling exterior security wall lights and one which compliments the outside of your home.
The mains 240v fitting has a clear glass lens and you can use a GU10 LED bulb up to a maximum wattage of 35w.

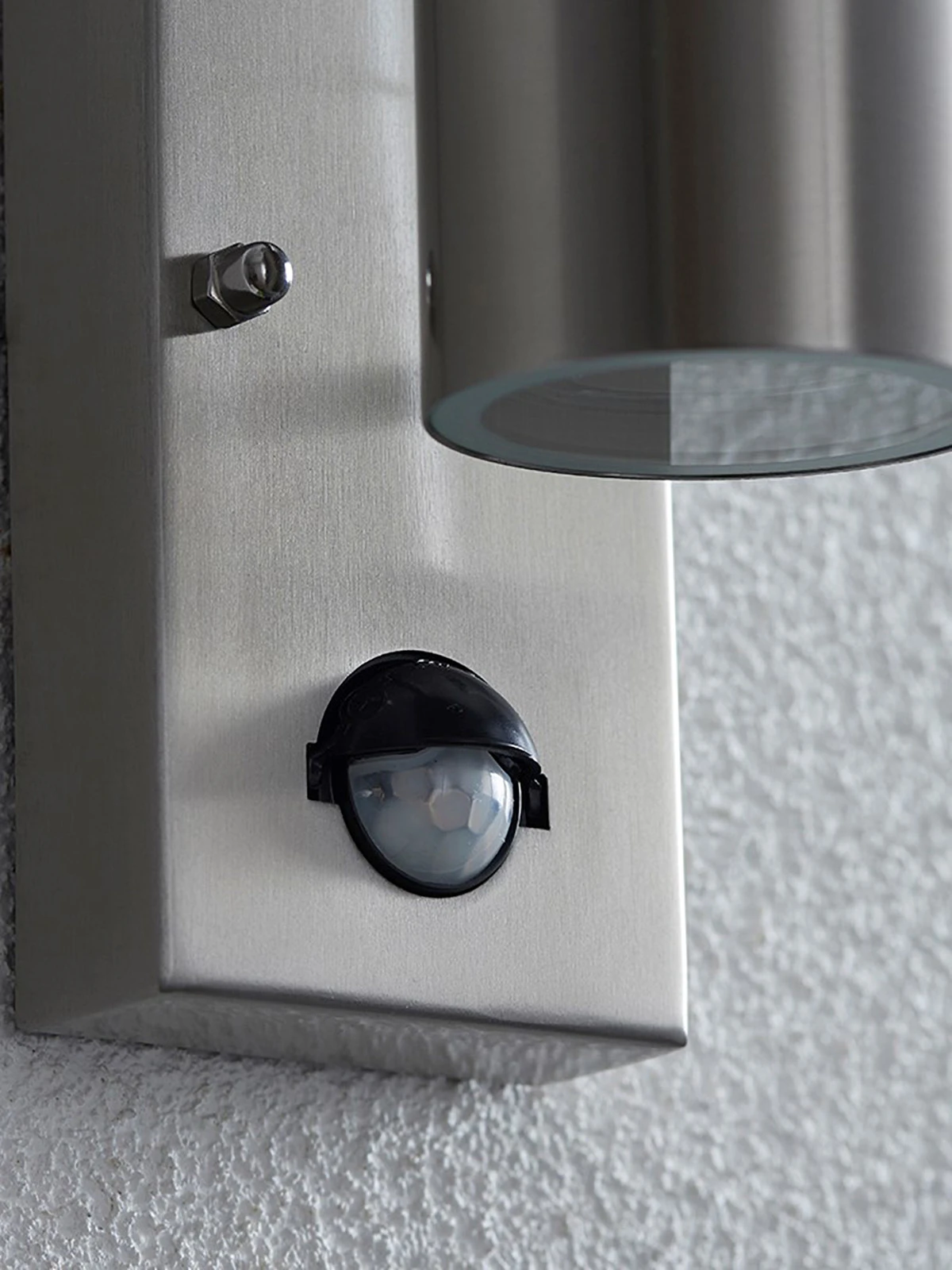

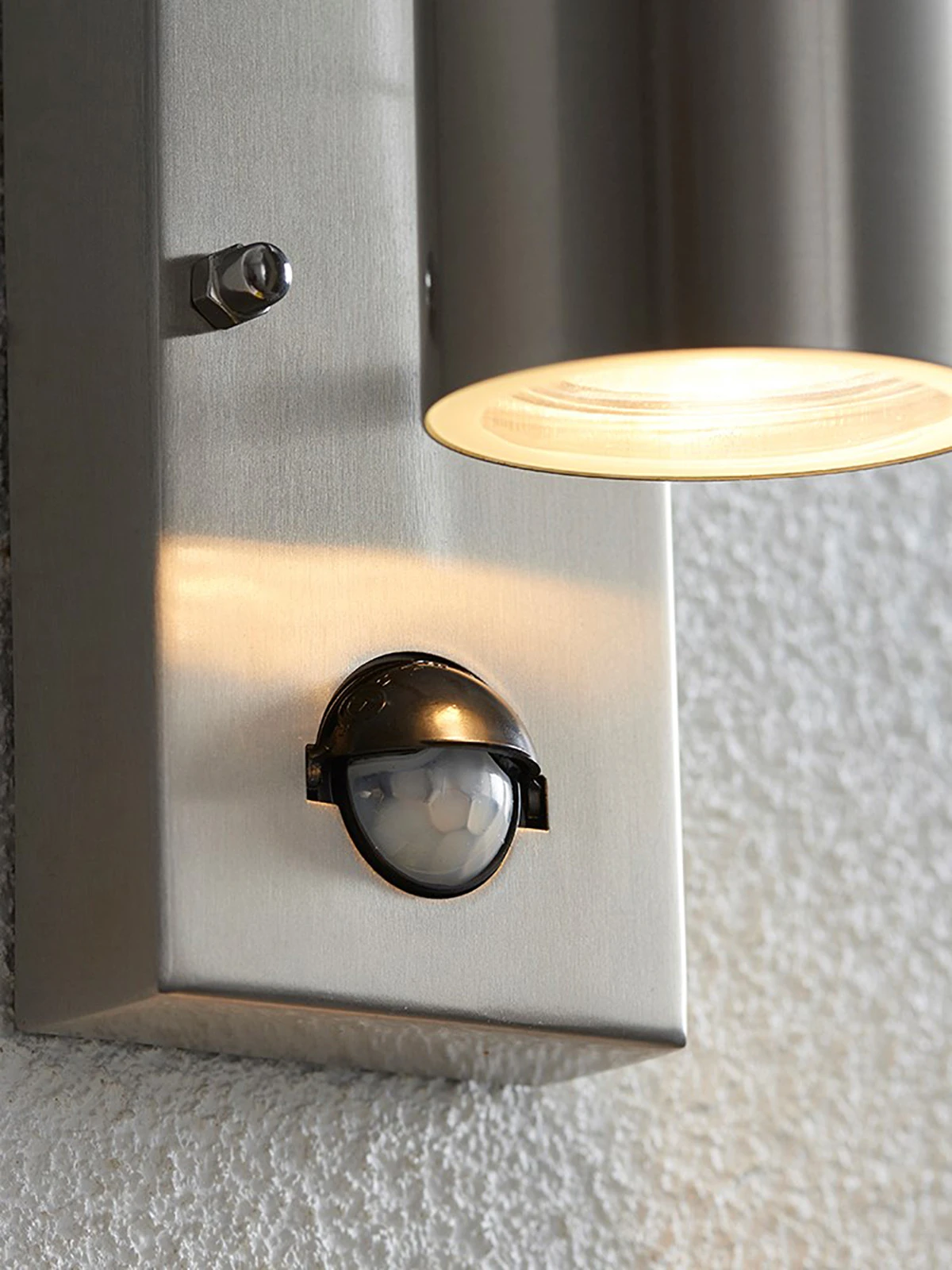

The PIR sensor sits at the base of the wall mount and has a detection angle of 110 degrees. The timer can be
set from as little as 5 seconds to a maximum of 5 minutes.
The sensor will be activated once it is dark and will switch the light on when it detects someone within it’s range.
NOT SUITABLE FOR COASTAL ENVIRONMENTS
- Complete with built in PIR
- 110° detection angle, 8m maximum range with a 5 sec – 5 min timer function
- Polished stainless steel & clear glass
- Constructed from stainless steel (201) & glass
- IP44
- Proj: 110mm H: 150mm W: 70mm
- Class 1
- 2 Years Warranty
- Weight: 0.6 Kg
Lamp Colour (Kelvins)
The colour of a lamp is defined as a measurement called kelvins. A standard GLS light bulb in your house would be
2,700 kelvins which is in the warm colour spectrum and a lamp with 5,000 kelvins would be at the very cold white
spectrum. Getting the right colour temperature of a lamp does matter as the warm colour wavelength helps to soften
the tone of the area and gives a warm soft relaxed feel and ideal for colourful flower beds and rockery areas
especially with wooden bark and at the other end of the scale a 4,000 to 5,000 kelvin lamp colour would be used
against a light background such as white walls or to accentuate grey blueish foliage in shrubs and small trees.
When you buy a new, energy efficient bulb, keep your application and colour scheme in mind and make sure to buy
the bulb with a colour temperature to match.
Installation – See attached Instructions & Data Sheet
This product is only suitable for connection to a 240V~50Hz supply. It is recommended that this light is installed by
a qualified electrician in accordance with current IEE Wiring Regulations and local Building Regulations. The light
fitting should be connected to a lighting circuit protected by a 5 amp fuse (or a 6 amp miniature circuit breaker).
This light has an IP44 (splash proof) rating suitable for use outdoors. For optimum detection range a mounting height
of 1.8M to 2.5M metres is recommended. Do not mount where the PIR can be activated by heat sources such as central
heating vents, animals, traffic etc. Run supply wire from a 5-amp electrical supply using double insulated 3-core
cable of type H05RN-F 1.0mm2 (not supplied) to selected site, ensuring it is adequately protected through the full
length of the cable run, it must come out of the mounting surface in line with the entry to the fitting. Except where
installed in a conduit or duct , which provides equivalent protection against mechanical damage, a cable buried in
the ground shall incorporate an earthed armour or metal sheath or both, suitable for use as a protective conductor,
or be of insulated concentric construction. Buried cables shall be marked by cable covers or a suitable marking tape.
Buried conduits and ducts shall be suitably identified. Buried cables, conduits and ducts shall be at a sufficient
depth to avoid being damaged by any reasonably foreseeable disturbance of the ground. This product contains breakable
parts – be careful during handling and maintenance to avoid breakage. The bulb, body and lid cover can become hot
in use. Switch off and allow 10 minutes to cool before cleaning (using a dry cloth only – do not use liquid or abrasive
cleaners). If any part of the bulb housing is broken or cracked then it must be replaced immediately to preserve
the water ingress protection, please consult your retailer.
