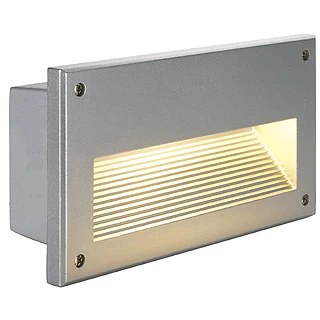

Brick Downunder , Mains 240v, E14, silver grey, IP44 – 220 – 240v

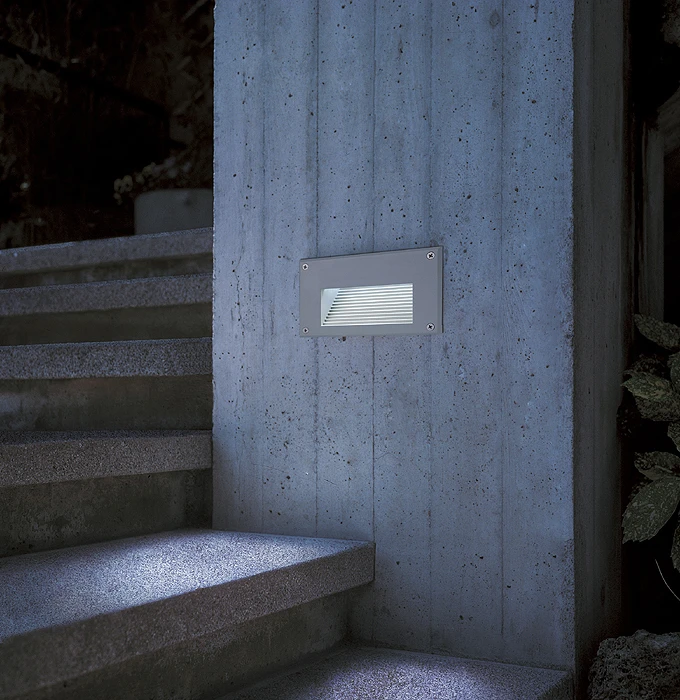

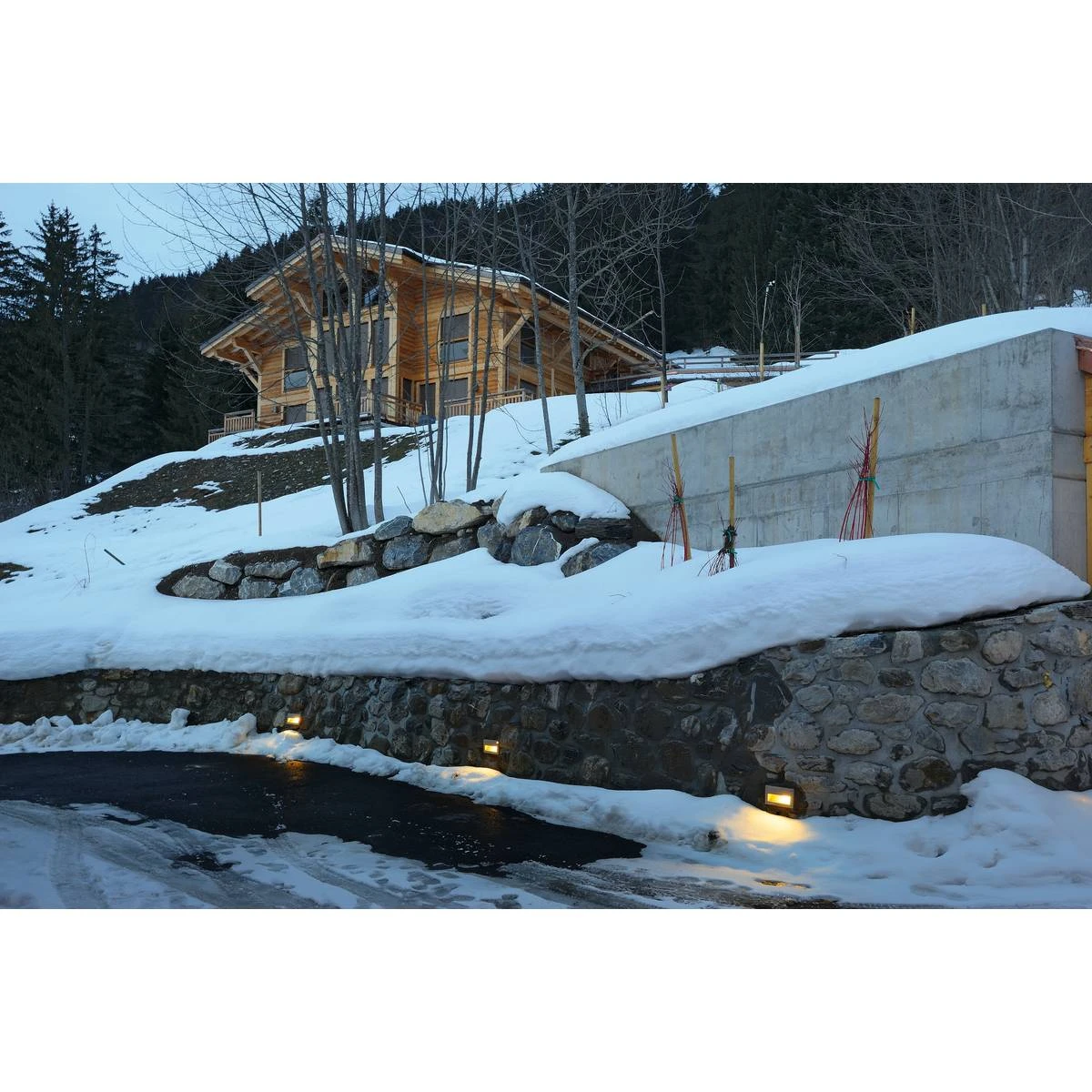

wall light. This outdoor recessed low level wall light can be used around low level
perimeter walls, staircases or as a step light. Easy to install mains 240v supply. The light fitting is designed to throw
the light down and forward and with the main lamp source set high in the fitting
there is no glare created. LED E14 light bulbs have a long life span and very ECO friendly due to their low running and maintenance
cost’s. You can use warm white
or cool white colour temperatures in LED bulbs. We recommend placing the fittings every third stair tread and about 300mm above
the tread. There is a mounting pot included with the light fitting that can be cut
in to the wall. Not suitable for coastal areas.
Lamp colour ( Kelvins )
The colour of a lamp is defined as a measurement called kelvins. A standard GLS incandescent bulb in the home would be
2,700 kelvins which is in the warm colour spectrum and a lamp with 5,000 kelvins would be at the very cold white
spectrum.
Installation 220 – 240v
Choosing the style of a product is only part of the equation you must also think of where that product will be used and how
it will be installed. All exterior lighting products on our web site have an IP rating appropriate to each light fitting
and its intended application and is therefore fit for purpose. Water ingress is the enemy for outdoor lighting and the
products supplied are only as good as the installation. The weakest point is always cable joints. All joints must be
made 100% watertight and this can be done using IP68 cable connectors and/or waterproof junction boxes which are then
filled with a re-enterable liquid gel mix. All joints where possible should be made above ground for easy access and
reduced water ingress. When installing ground buried lights adequate drainage systems should be put in place especially
in clay-based soil areas. If possible, use ground surface spike lights rather than a buried light. Mains 240v cable
will have less joints than a low voltage installation but care must be taken with the cable runs. Cabling should be Rubber
Butyl and not PVC. PVC leads to capillary action over time especially with UV degradation.
All exterior lights must be installed by a certified NIC EIC electrician and should be signed off by an electrician with
Part P certification. There are a selection of waterproof jointing kits and boxes available on this web site.
