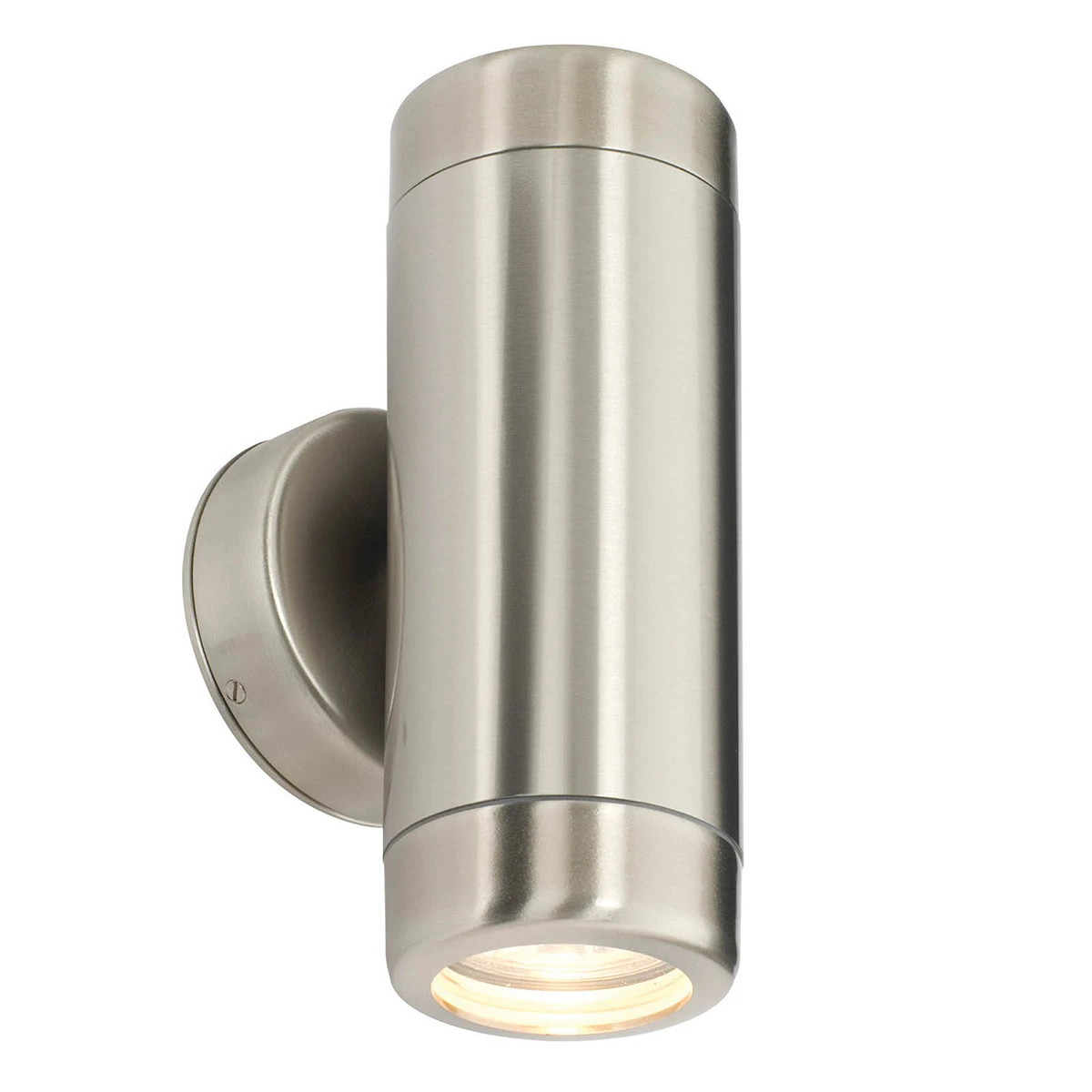

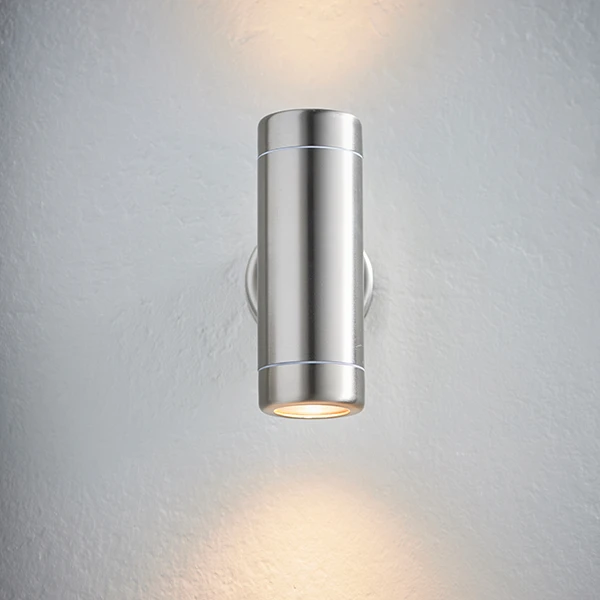

Atlantis, Up/Down wall light, IP65, 316L stainless steel, Max 2 x 7w GU10
The atlantis up/down 316L marine grade stainless steel wall light is one of our most popular light fittings due to its
high specification and value for money price. There is a family of fittings in the Atlantis range which gives the architect
flexibility in his design concept. You can choose from a fixed down light, an adjustable wall light, a up / down light and
a ground spike light. They’re all made to the same highest quality marine grade 316 stainless steel. The modern design of
the Atlantis range is an appealing choice for any outdoor environment. These fittings are ideally suited to marine
or sea environments. Simple in design but does the job in a minimalist way. Very easy clean and lamp change.
A wide selection of beam angles are available for the lamps to create the effect you require and can be used with the very
latest LED lamps to help reduce maintenance cost’s and energy bills.
Lamp Colour ( Kelvins )
2,700 kelvins which is in the warm colour spectrum and a lamp with 5,000 kelvins would be at the very cold white
spectrum.
Installation 220 – 240v – See Instructions & Data Sheets Tab=”center”>
how it will be installed. All exterior lighting products on our web site have an IP rating appropriate to each light fitting
and its intended application and is therefore fit for purpose. Water ingress is the enemy for outdoor lighting and the products
supplied are only as good as the installation. The weakest point is always cable joints. All joints must be made 100% watertight
and this can be done using IP68 cable connectors and/or waterproof junction boxes which are then filled with a re-enterable
liquid gel mix. All joints where possible should be made above ground for easy access and reduced water ingress. When installing
ground buried lights adequate drainage systems should be put in place especially in clay-based soil areas. If possible, use
ground surface spike lights rather than a buried light. Mains 240v cable will have less joints than a low voltage installation
but care must be taken with the cable runs. Cabling should be Rubber Butyl and not PVC. PVC leads to capillary action over
time especially with UV degradation.
.
All exterior lights must be installed by a certified NIC EIC electrician and should be signed off by an electrician
with Part P certification. There are a selection of waterproof jointing kits and boxes available on this
web site.
