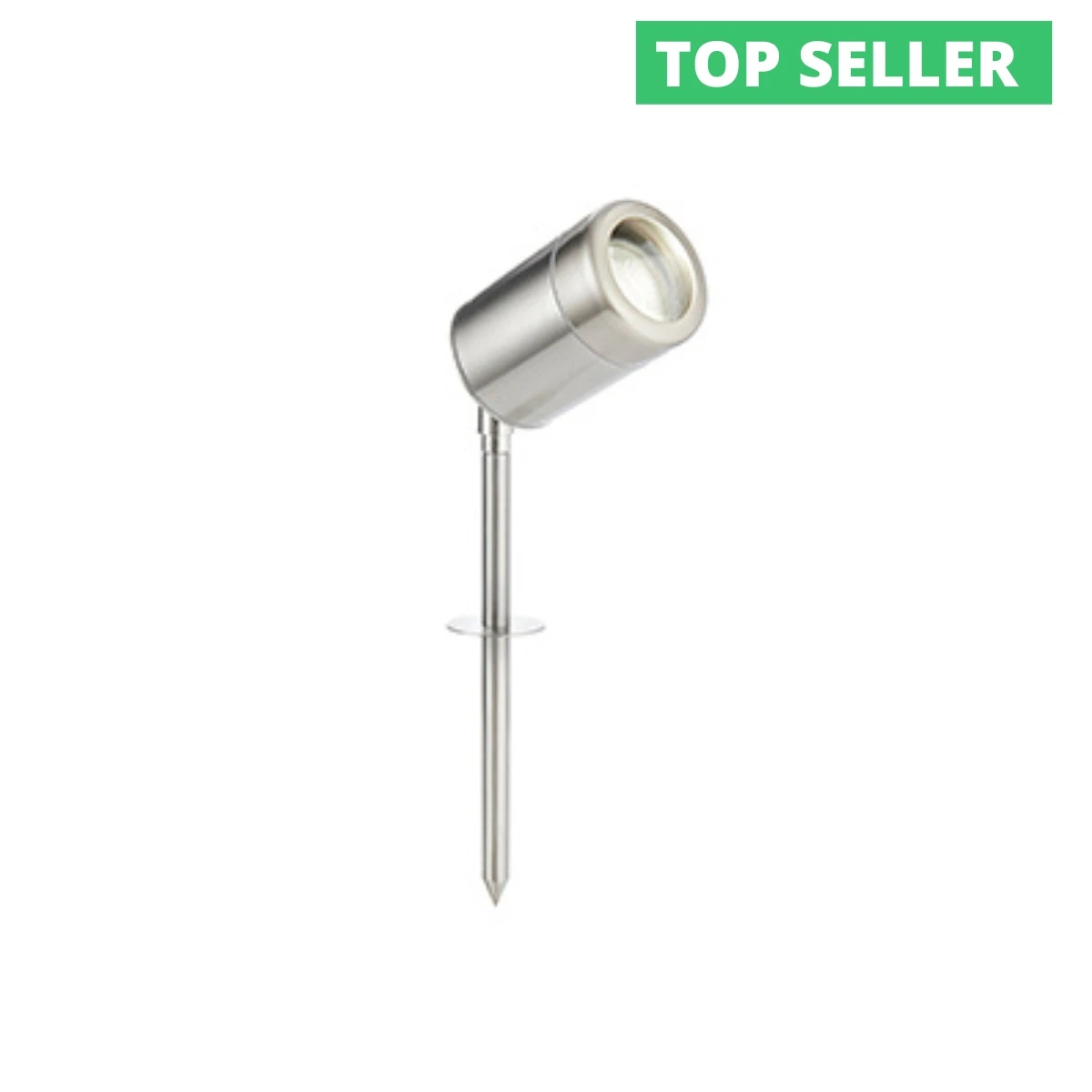

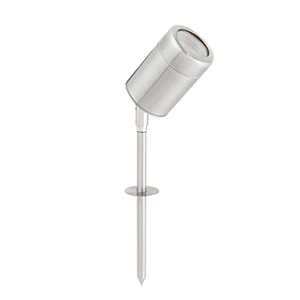

Atlantis, 316 stainless steel, IP65, max 7w LED GU10

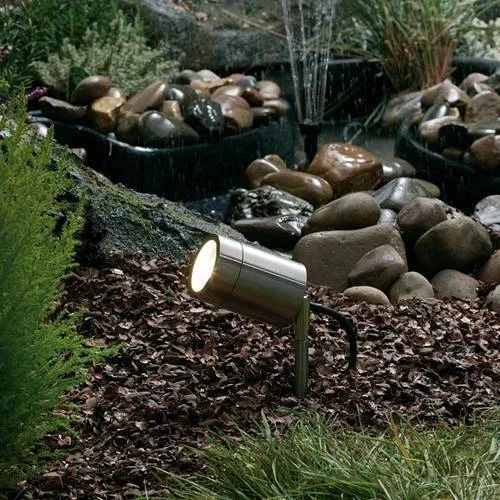

The modern design of the Atlantis floor spike is an appealing choice for any outdoor space, perfect for lighting up
walls and signs. Manufactured from 316L marine grade stainless steel, this fitting is ideally suited to coastal areas and industrial
environments.
- Manufactured from marine grade stainless steel
- Dimmable
- Marine grade BR 316L stainless steel & clear glass
- Constructed from marine grade stainless steel (316L) & glass
- Supplied with 3m of cable.Â
- Takes a maximum 7w LED GU10 bulb not supplied. This fitting is tested to 7w for heat sink purposes, anything with a higher wattage may lead to shortening of the LED bulb life.
- Height 315mm including body. Body length 93.5mm spike length 221.5mm.
- Diameter 63mm
- Weight 1 kg
- Class 1Â
- 2 year warranty
Lamp Colour (Kelvins)Â
The colour of a lamp is defined as a measurement called kelvins. A standard GLS light bulb in your house would be 2,700 kelvins
which is in the warm colour spectrum and a lamp with 5,000 kelvins would be at the very cold white spectrum.
=”center”>
Installation 220 – 240v – See Instructions & Data Sheets Tab=”center”> Â
All exterior lighting products on our website have an IP rating which is explained further in our Technical Help/Products section but
in simple terms the IP rating is appropriate to each light fitting and its intended application and is therefore fit
for purpose. Water ingress is the enemy for outdoor lighting and the products supplied are only as good as the installation
as the weakest point is always cable joints. All joints must be made 100% water tight and this can be done using IP68
inline connectors, waterproof junction boxes which are then filled with a resin or gel mix. All joints where possible
should be made above ground for easy access and reduced water ingress. When installing ground buried lights adequate
drainage systems should be put in place especially in clay based soil areas.
