Apollo – 240v – Dark Grey Aluminium IP65 70w Metal Halide 36 Degree Beam Angle Surface Or Spike Mounted Spotlight

        Apollo, 70w Metal Halide, medium beam, IP65

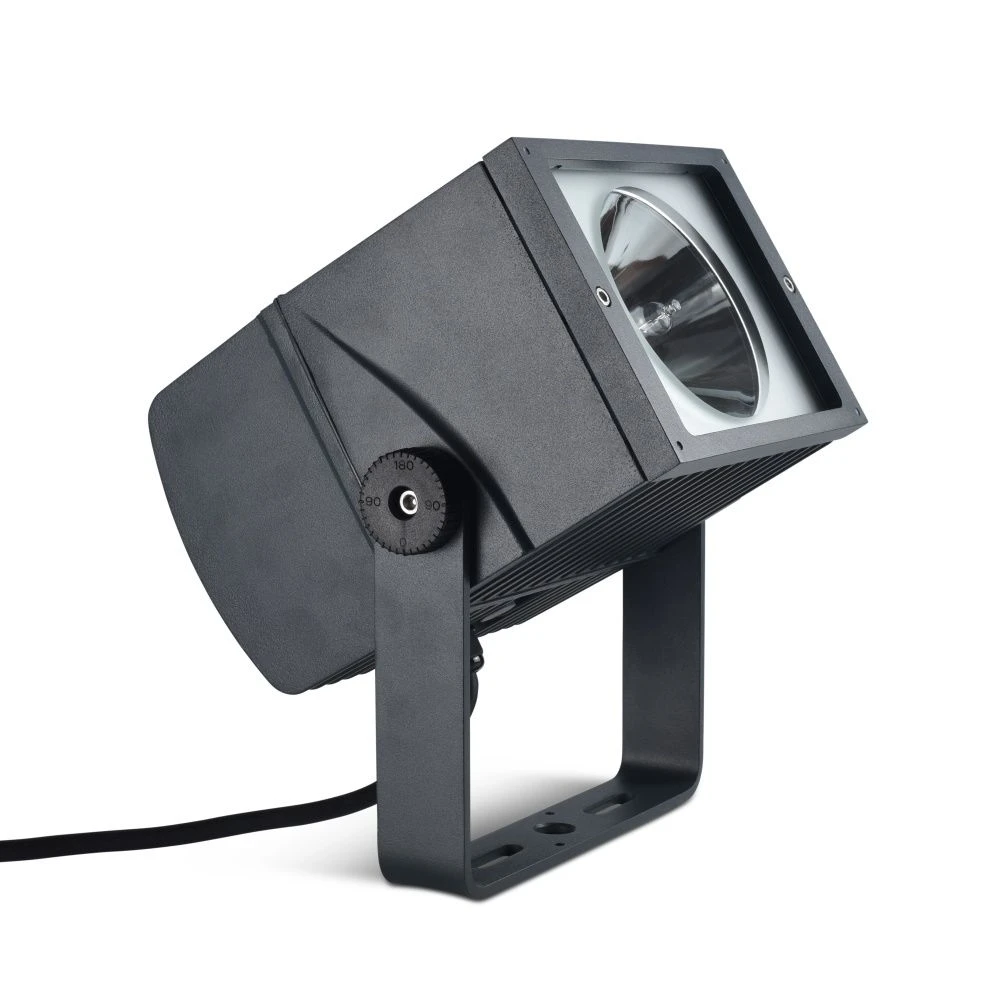

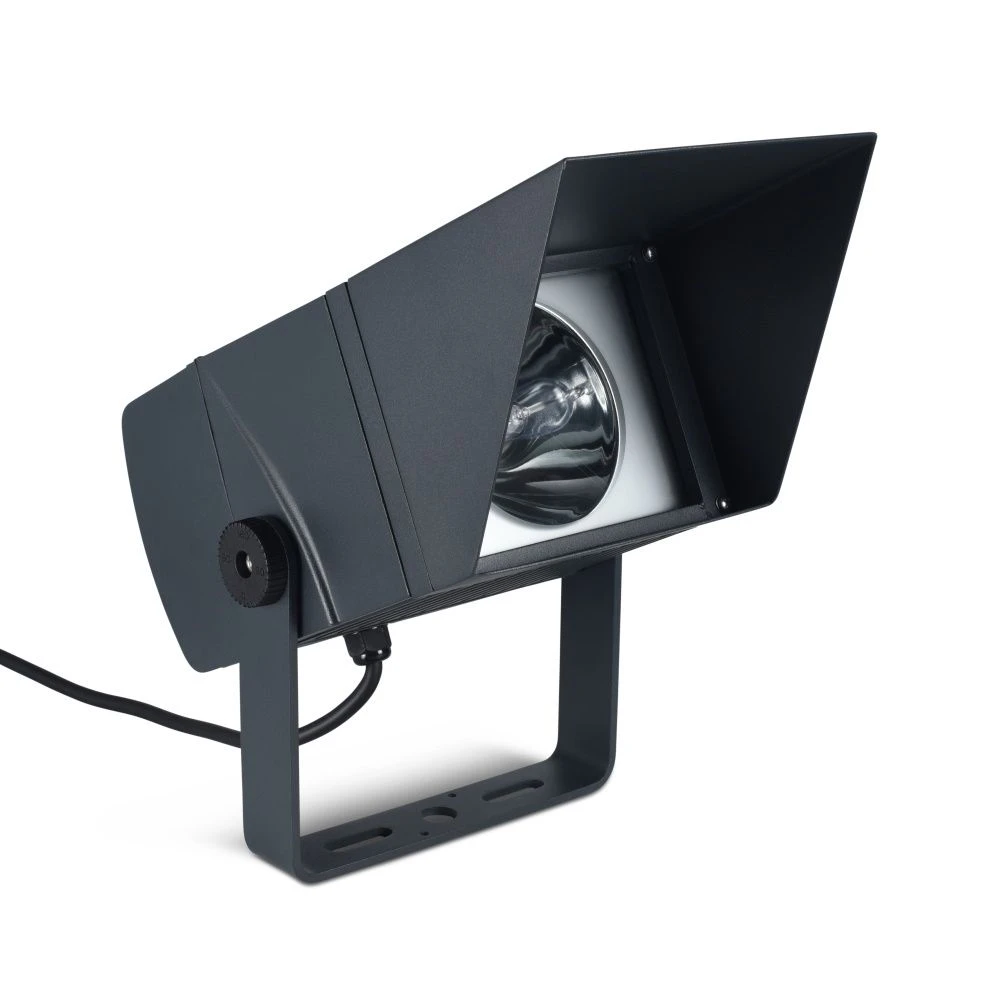

The Apollo code E94070S is a surface-mount or wall mount medium beam spotlight with a 36 degree beam angle primarily designed for energy-saving up lighting of tree, building façades and churches. Apollo has an adjustable stirrup bracket for mounting on walls or an optional ground spike. The lens has “through-flow” slots to allow water to flow off the lens even if pointed directly upward or fitted with a glare shield. It uses a 70 watt single-ended metal halide lamp and polished reflector to project a 36 degree symmetric circular beam for up lighting larger trees: the central 36 degree beam is ideal for up lighting from beneath and is complemented by peripheral light spread for coverage of canopies. Where the shape of the tree falls within a 35-40 degree arc, use E94070S to cover up to 15m high, subject to density & colour of canopy & structure: perception of brightness varies between different people. If the tree has a wider spread, especially over 10m, use 1 or more E94070W 60 degree spotlights for a fuller effect. Use 150w models for larger trees or where the trees are further from the viewpoint to compensate for the distance. Where the outer canopy is dense and the inner canopy & structure is more open, up light the central trunk & branches with one Apollo 36 degree spotlight and position other Apollo spotlights to illuminate the outer canopy. Look up through the tree you propose to light – if you can see up through the branches, then light will penetrate the canopy and structure as well. If not, use up lights to light the tree externally. Lighting large trees is a black art: test the position of up lights with a temporary wiring set-up before final installation. Lighting of trees with very open canopy may be brighter than desired – consider Apollo 35 35w metal halide spotlights or a range of LED spotlights as a lower power alternative. This advice is for general guidance and subject to branch & canopy structure and foliage density, colour & translucence.

Ceramic type CDMTC70 70 watt single-ended 3000K warm white metal halide lamp for
is recommended for long lamp life and colour stability for purple/red/yellow/green
foliage trees. HQITC35K4 cool white lamp gives cooler lighting effect suitable for trees
with blue/grey foliage such as some pines and cedars. The lamps can not be switched
on and of in rapid succession, they need time to warm up and cool down.

ORDER LAMPS SEPARATELY.

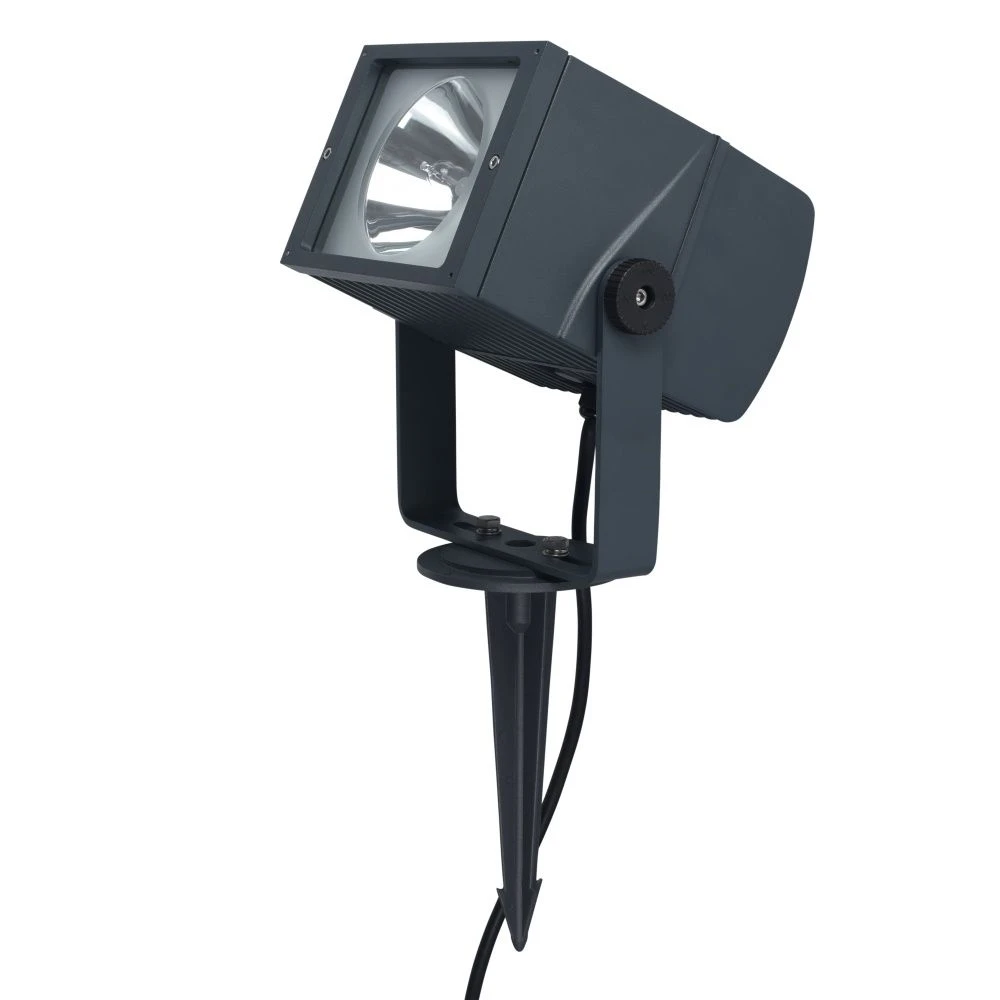

Stirrup bracket for mounting on walls or an optional ground spike. 20mm IP68 gland provided for connection to mains supply.
HO7-RNF 3 core rubber cable recommended for connection to armoured supply cable via a separate weatherproof junction
box or underground joint kit (not supplied).

Using a single RCD for large numbers of 240v fittings is not recommended due to the risk of nuisance tripping. We advise the use of separate RCD protection for each circuit and a maximum of 12 fittings per RCD. Where a garden lighting installation of more than 12 spike mount or recessed lights per circuit is proposed, we suggest the installation of 12v units with transformers, which results in a significantly higher fault tolerance and reliability in the total installation
