Apollo, 150w Metal Halide, medium beam, IP65

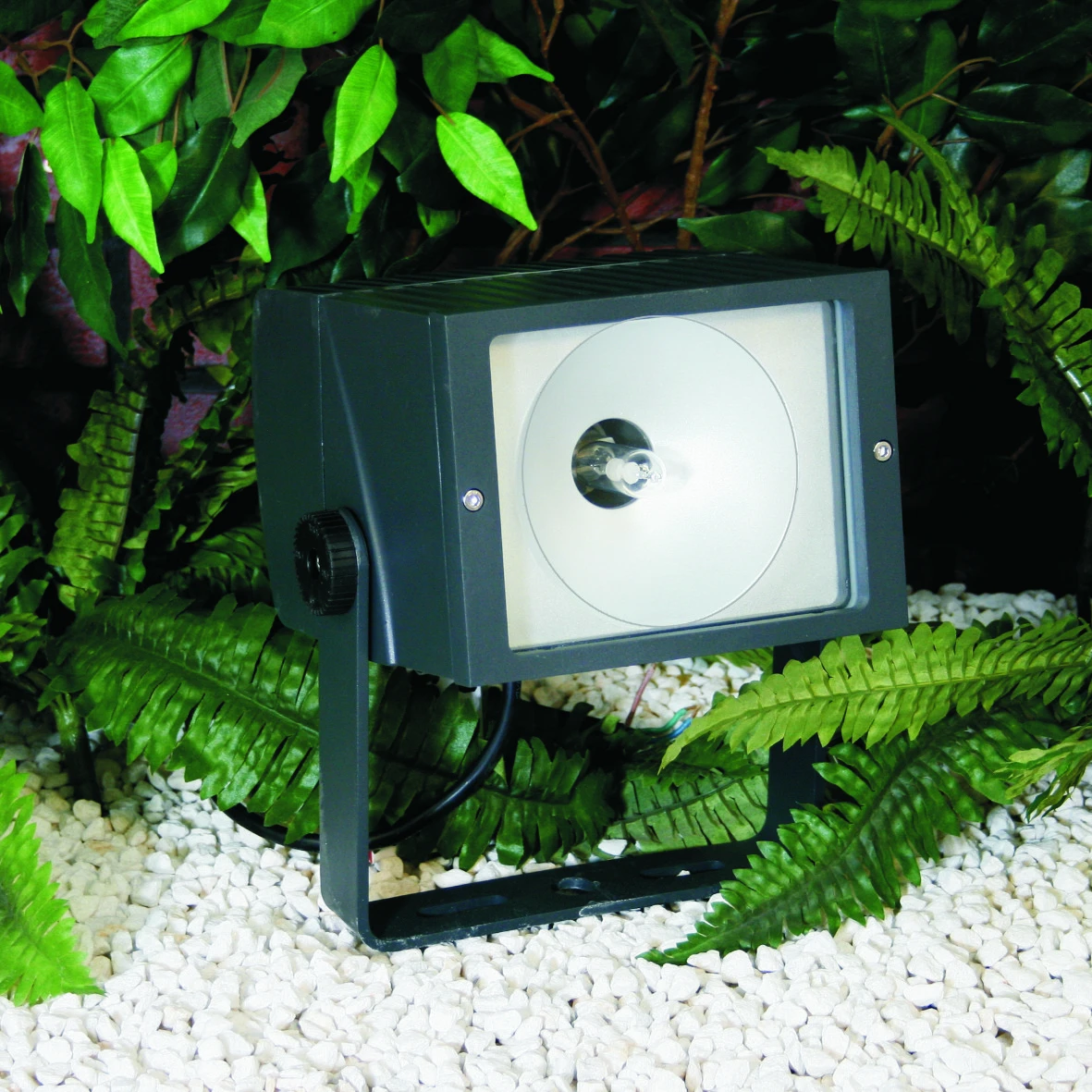

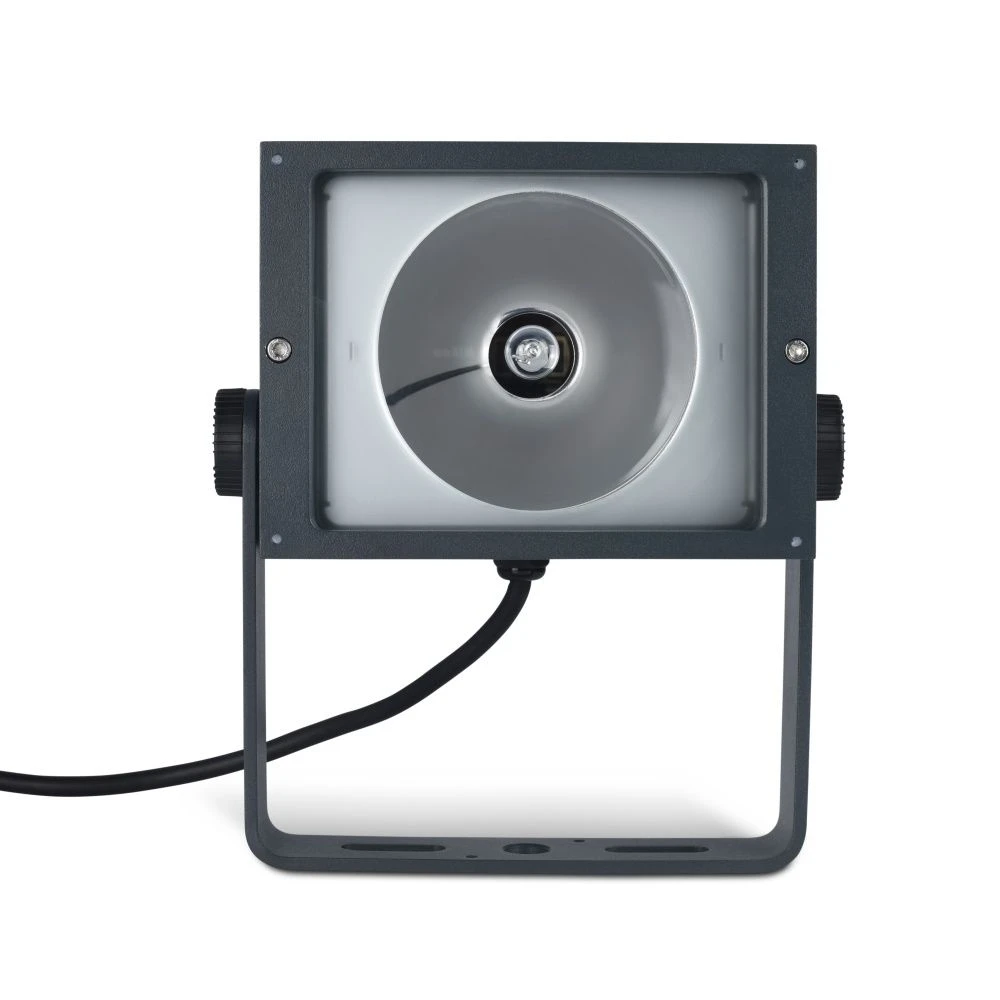

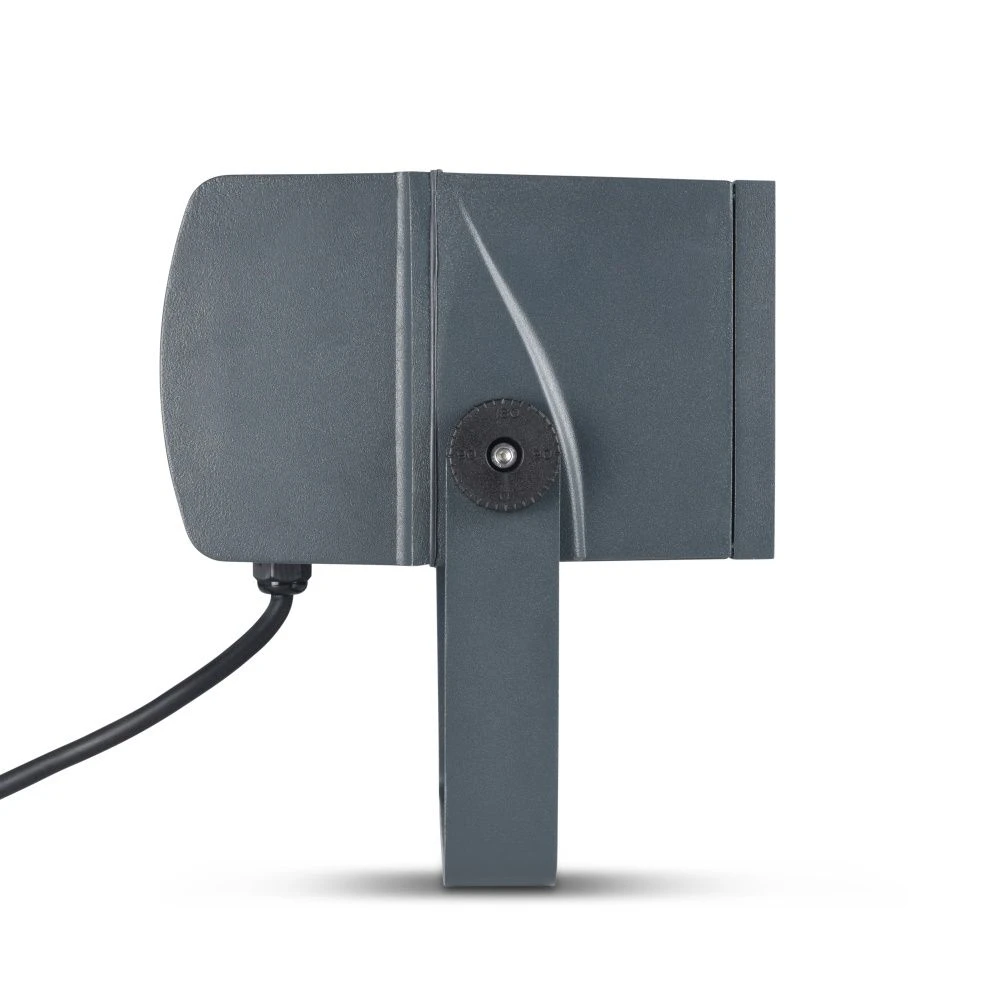

The Apollo code E94150S is a surface-mount medium beam angle spotlight with a 36 degree beam angle primarily designed for energy-saving up lighting of trees or building facades. Apollo has an adjustable stirrup bracket for mounting on walls or an optional ground spike. The lens has “through-flow” slots to allow water to flow off the lens even if pointed directly upward or fitted with a glare shield. It uses a 150 watt single-ended metal halide lamp and polished reflector to project a 36 degree symmetric circular beam for up lighting larger trees: the central 36 degree beam is ideal for up lighting from beneath and is complemented by peripheral light spread for coverage of canopies. Where the shape of the tree falls within a 35-40 degree arc, use E94150S to cover up to 30m high, subject to density & colour of canopy & structure: perception of brightness varies between different people. If the tree has a wider spread, especially over 10m, use 1 or more E94150W 60 degree spotlights for a fuller effect. Use 70w models for smaller trees . Where the outer canopy is dense and the inner canopy & structure is more open, up light the central trunk & branches with one Apollo 36 degree spotlight and position other Apollo spotlights to illuminate the outer canopy. Look up through the tree you propose to light – if you can see up through the branches, then light will penetrate the canopy and structure as well. If not, use up lights to light the tree externally. Lighting large trees is a black art: test the position of up lights with a temporary wiring set-up before final installation. Lighting of trees with very open canopy may be brighter than desired – consider Apollo 35 35w metal halide spotlights or a range of LED floodlights with a lower power alternative. This advice is for general guidance and subject to branch & canopy structure and foliage density, colour & translucence.
Lamp type
Ceramic type CDMT150 150 watt single-ended 3000K warm white metal halide lamp for is recommended for long lamp life and colour
stability for purple/red/yellow/green foliage trees.
HQIT150K4 white lamp gives cooler lighting effect suitable for trees with blue/grey foliage such as some pines and cedars.
ORDER LAMPS SEPARATELY.
Environmental impact
Care should be taken for the environment and local wildlife to maintain the ecological balance. Insects, bats, wildlife can
all be affected by light pollution. The warmer colour spectrum of 2,700 Kelvins does not interfere with insects
and general wildlife as much as the blue colour spectrum of light around 6,000 kelvins which can disrupt their normal
night-time activity. This also applies to bats where an anti-glare light fitting works better as well as reducing the
overall light pollution in the area. You must also be mindful of your neighbours and the effect your lighting can have
on them and shining a flood light into their windows at night will cause them distress. Try to keep the light in a downward
position and local to the area you want to illuminate and even if you want to illuminate tall trees it can be done in
a sympathetic way by placing a ground buried or surface spike flood light directly under the trees to illuminate the
canopy. Some light fittings also have an anti-glare shield fitted to reduce light pollution.
Lamp type
Ceramic
type CDMT150 150 watt single-ended 3000K warm white metal halide lamp
for is recommended for long lamp life and colour stability for
purple/red/yellow/green foliage trees. HQIT150K4 white lamp gives cooler
lighting effect suitable for trees with blue/grey foliage such as some
pines and cedars. ORDER LAMPS SEPARATELY.
240v Installation – See Instructions & Data Sheets Tab

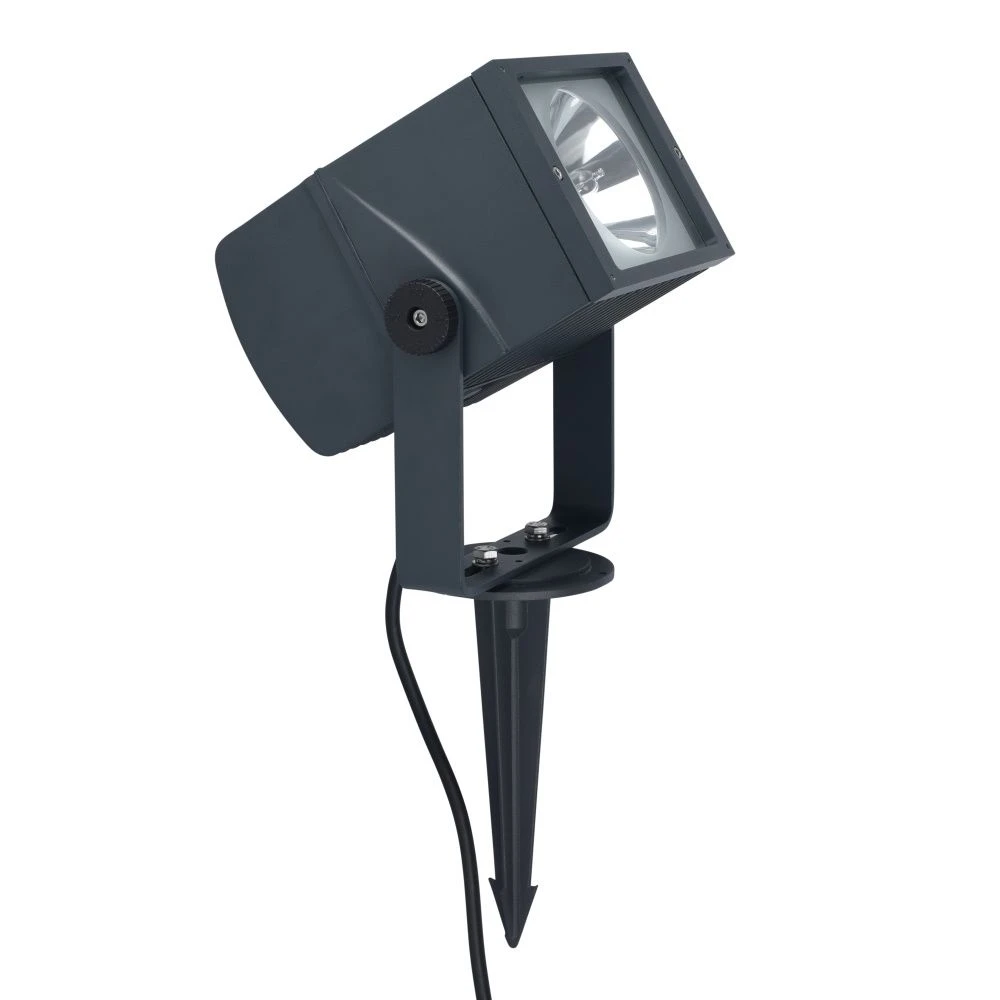

Stirrup bracket for mounting on walls or an optional ground spike. 20mm IP68 gland provided for connection to mains supply.
HO7-RNF 3 core rubber cable recommended for connection to armoured supply cable via a separate weatherproof junction
box or underground joint kit (not supplied).
Using a single RCD for large numbers of 240v fittings is not recommended due to the risk of nuisance tripping. We advise the use of separate RCD protection for each circuit and a maximum of 12 fittings per RCD. Where a garden lighting installation of more than 12 spike mount or recessed lights per circuit is proposed, we suggest the installation of 12v units with transformers, which results in a significantly higher fault tolerance and reliability in the total installation.
