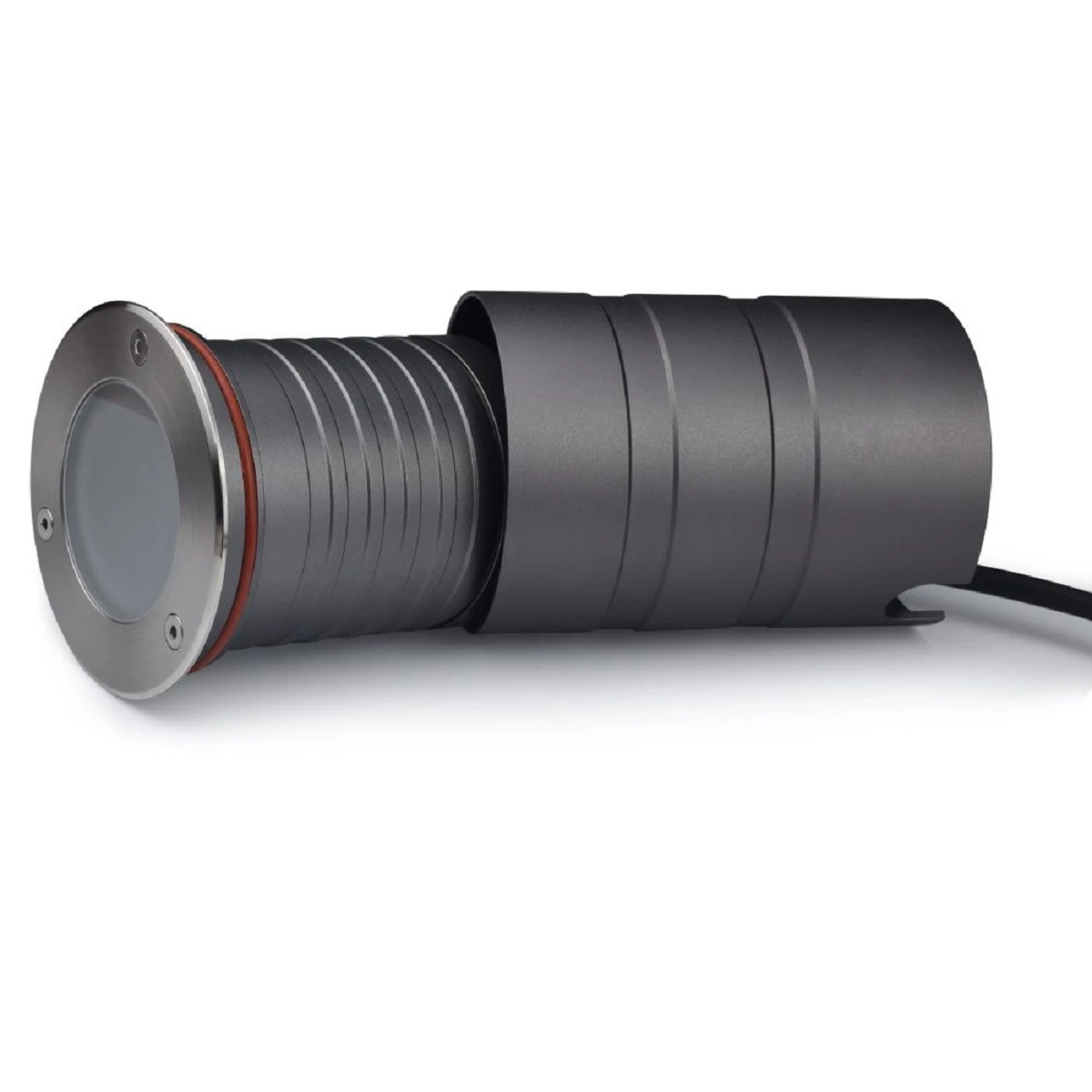

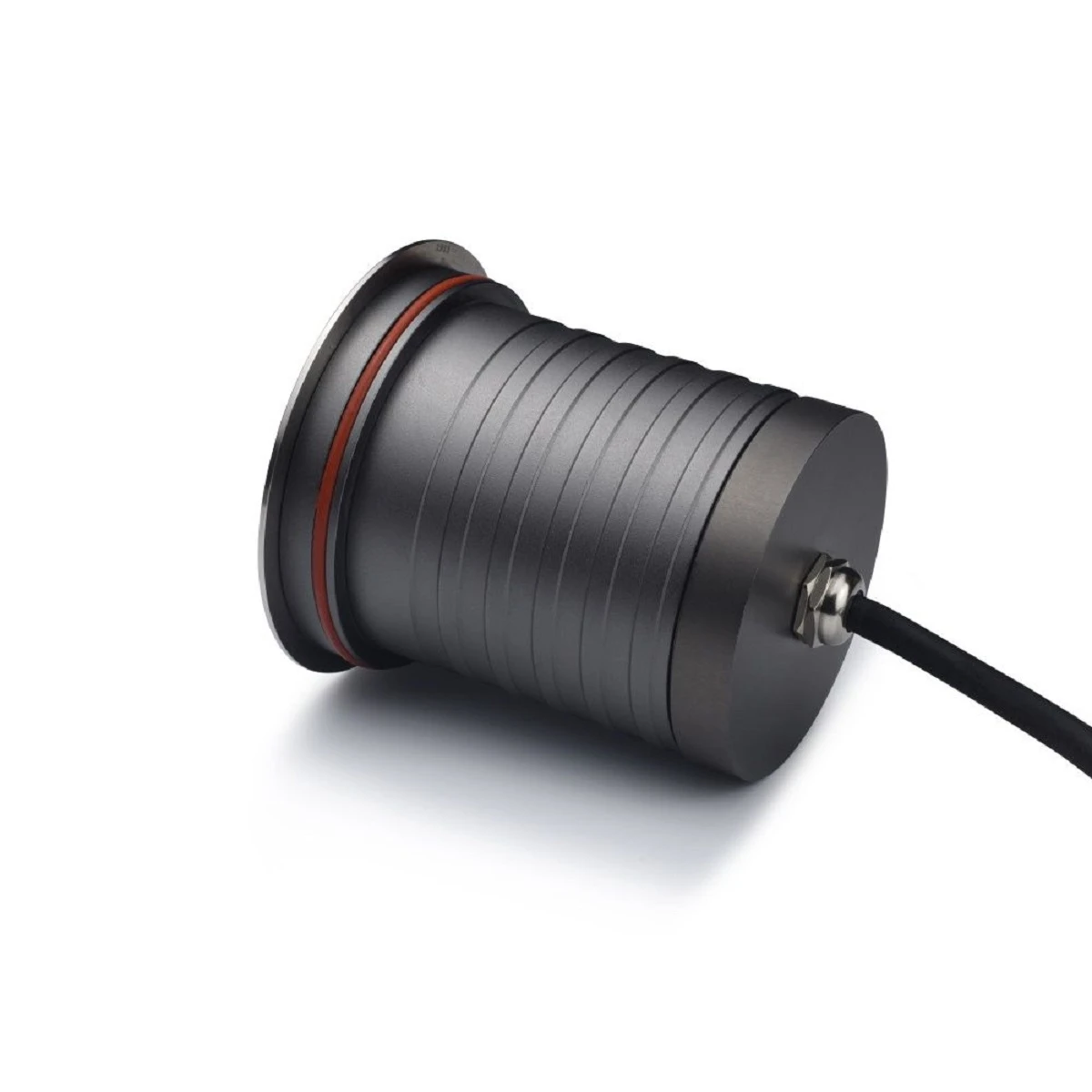

The Elipta EP20GU10 is a stylish 240v recessed uplight with a choice of 240v GU10 LEDs resulting in a much lower lens temperature,
which is important in walkover areas. EP20GU10 is fitted with a frosted lens as standard and features an adjustable bracket

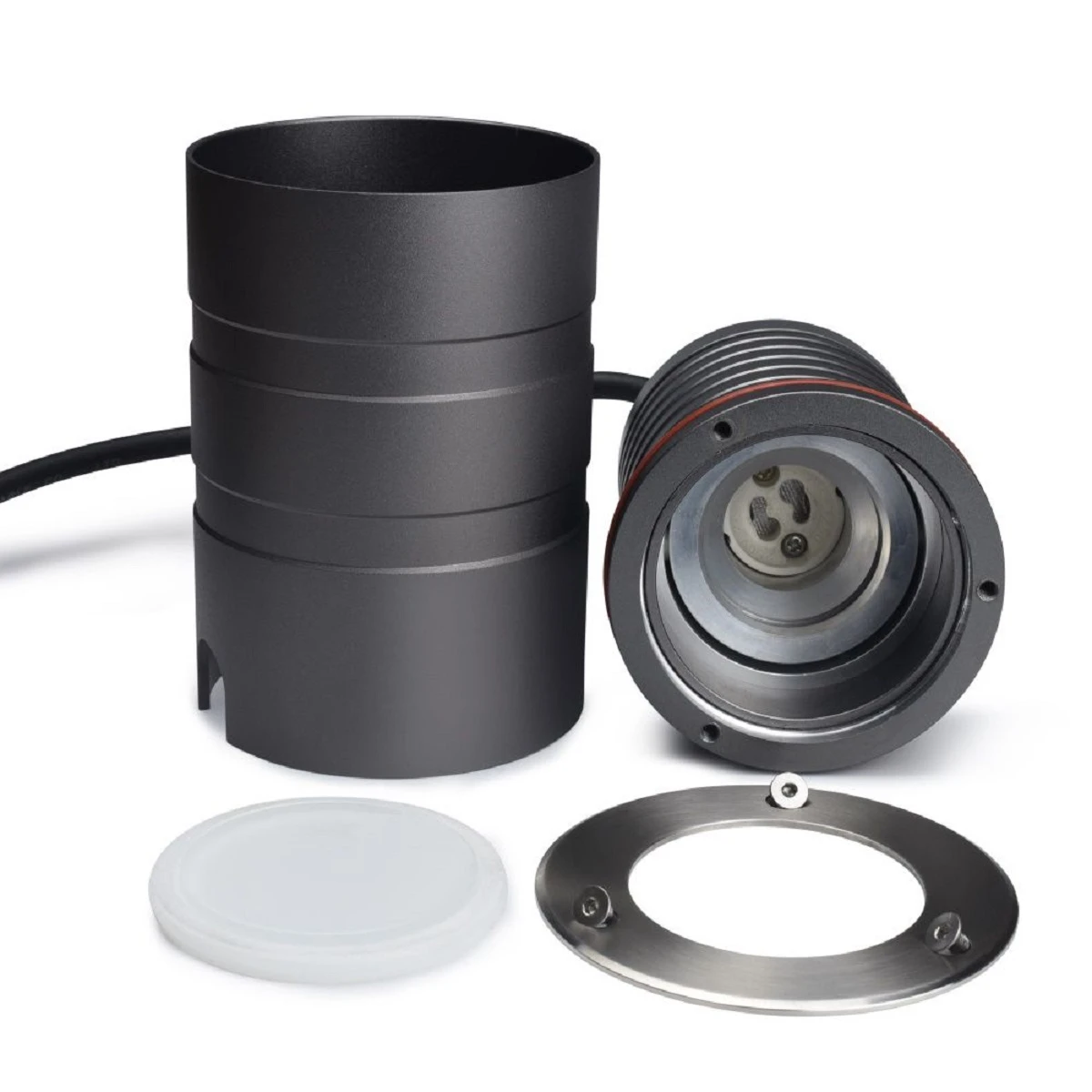

that provides up to 30° of movement from vertical for directional lighting. The light is located by an ‘O’ ring on the body
into a sleeve tube. To facilitate removal of screws for future re-lamping or other maintenance, apply copper grease to the
threads of all screws being fitted for retention of bezels, grills or other top plates or retaining rings. Copper grease
resists degradation due to heat and protects against difficulty in removing screws, particularly where stainless steel screws
are fitted with aluminium parts. It may also be used on screw threads of screw-off bezels or glare shields.
the tube, where it is held firmly in place by an ‘o’-ring.
| Using a single RCD for large numbers of 240v fittings is not recommended due to the risk of nuisance tripping. We advise the use of separate RCD protection for each circuit and a maximum of 12 fittings per RCD. Where a garden lighting installation of more than 12 spike mount or recessed lights per circuit is proposed, we suggest the installation of 12v units with transformers, which results in a significantly higher fault tolerance and reliability in the total installation. |
