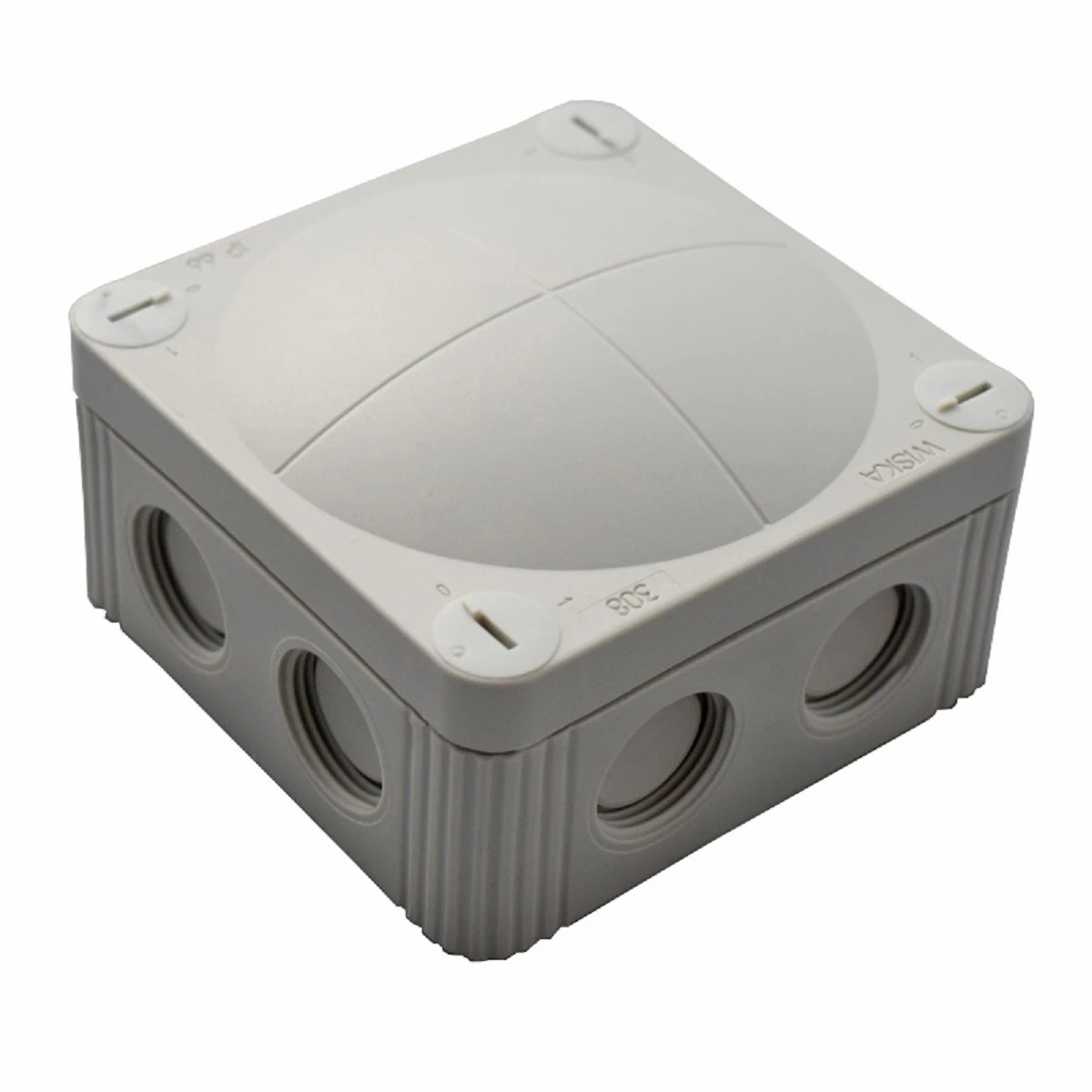

8 Way Junction Box, Grey (Wiska) – IP66

This
Wiska 8 way junction box is a very neat a simple solution to joining
multiple cables and fittings in the garden. It is perfect for use with 12V lighting range making wiring quick and easy. Rated IP66,
this waterproof junction box is ideal for use outdoors, It is designed
to house up to eight cables (one input cable and 7 output cables) with 8
cable inlets with self sealing membrane; for outer cable between
3-12mm. holding the cable in place and preventing water entering the
junction box. Alternatively M20 Cable Glands can be used for a more
secure connection (recommended – sold separately), physically clamping
the cable in place and also protecting the connections further from
water; rated IP67. A removable 5 way terminal block is housed within the
polypropylene reinforced glass fibre casing for ease of wiring, which
can power almost anything up to 450V, including 240v lighting and 12v
garden lights.

• Voltage: > 450V

• Cable Inlets: 8
• Terminals / Poles: 5 (removeable terminal block)

• IP Rating: IP66/67 (waterproof)
• Terminal Cable Capacity:
  • 1.5mm Cable – 8
  • 2.5mm Cable – 6
  • 4mm Cable – 5
• Dimensions: 85 x 85 x 51mm
• Bracket Supplied: Wall Mounting Clip
• Options: 20mm M20 Cable Glands (optional)
• Impact Resistant / Shatter Proof
• Built-in quick release lid screws (plastic – rust free)
• Simple solution for wiring up to 7 fittings
• Ideal for parallel wiring
