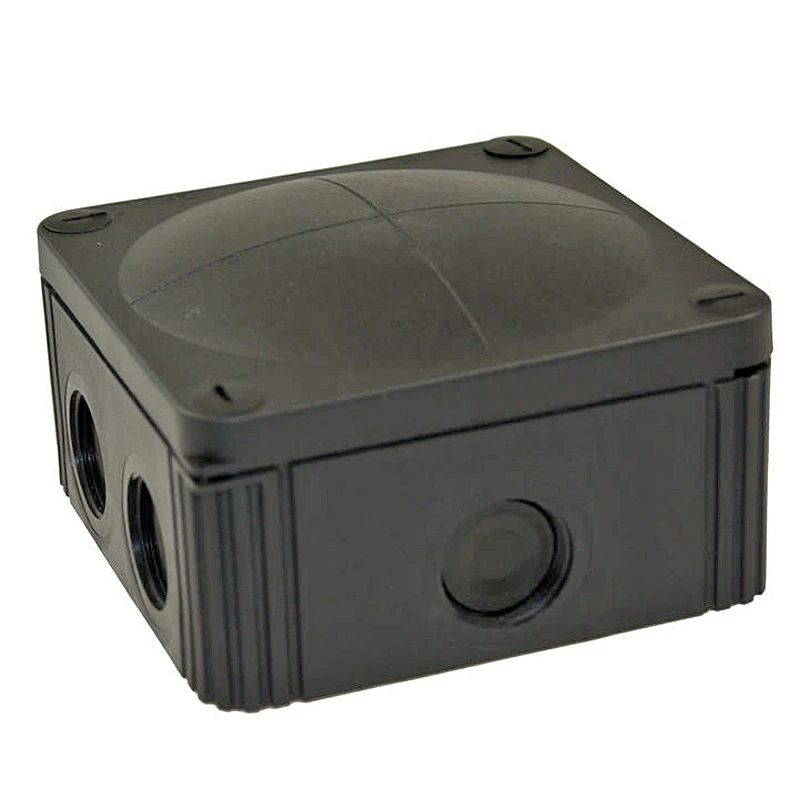

10 Way Junction Box, Black – Wiska Box

This large waterproof Wiska 10 way junction box is a simple solution to joining multiple cables in the garden, ideal for
use with 12V & 240v lighting range. It is designed to house up to 10 cables with 7 cable inlets with self
sealing membrane located around the sides and 3 additional inlets across the base for cables protruding directly from
the mounting surface. Each inlet has a cable clamping range of 5-17mm which seals  the cable in place preventing
water from entering the junction box. M25 Cable Glands can also be used and are recommended for a more secure connection

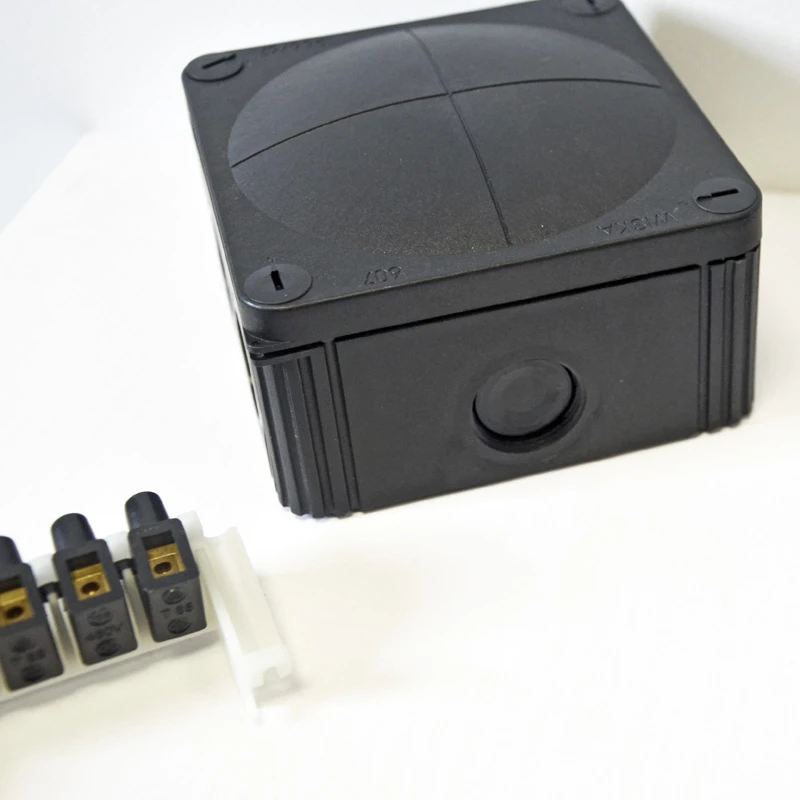

via the 7 side inlets, which increases the IP rating, physically clamping the cable in place. A removable 5 way terminal
block is housed within the polypropylene reinforced glass fibre casing for ease of wiring, which also has a bellied cover
for further room inside the combi box. Fix in place via the internally located openings in each corner, outside of the
sealing area.

• Voltage: < 690V

• Cable Inlets: 10 (side – 7, base – 3)
• Terminals / Poles: 5 (removable terminal block)

• IP Rating: IP66/67 (waterproof)

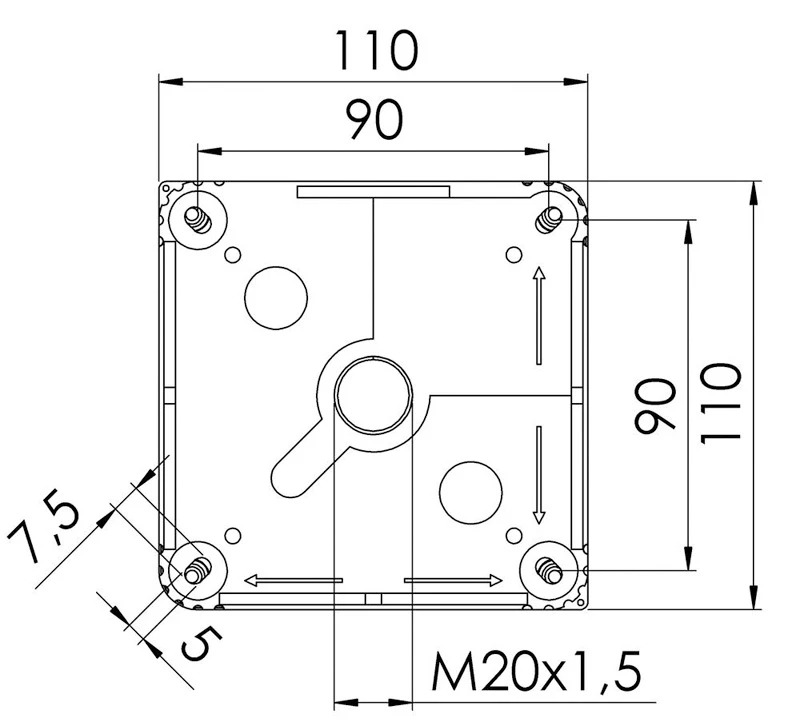

• Dimensions: 110 x 110 x 66mm
• Options: M25 Cable Glands (optional)
• Impact Resistant / Shatter Proof
• Built-in quick release lid screws (plastic – rust free)
• Simple solution for wiring up to 9 fittings
