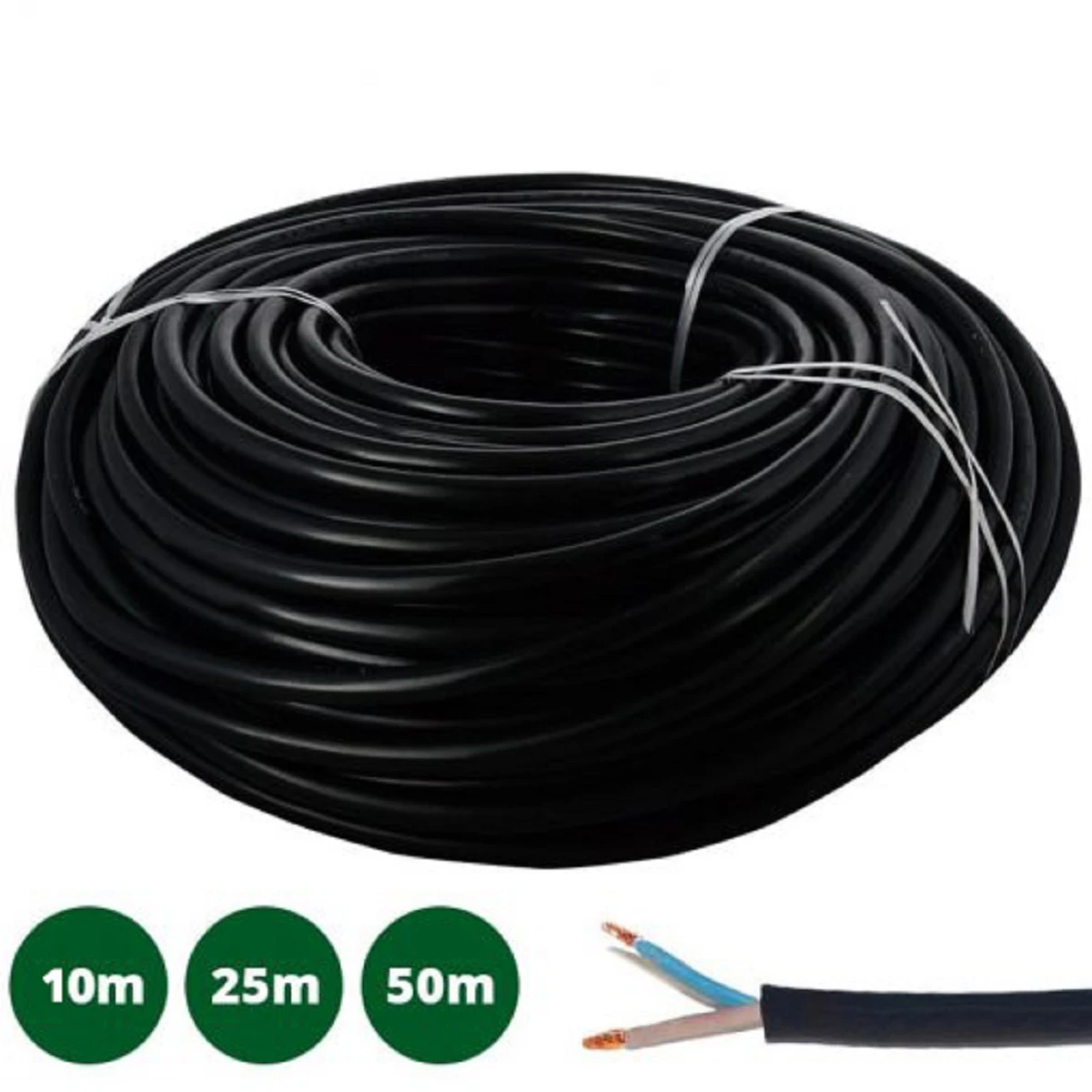

0.75mm 2 Core Rubber Cable (12V) – 10m Reel

This 100m reel of 0.75mm rubber cable is ideal for connecting a number of 12V garden lights together via junction
boxes, or direct to transformers, to create a complete 12v system (all connections should be protected to IP68). The
water resistant cable is extra flexible even when installed in temperatures less than zero degrees. The copper
stranded conductor cables are insulated individually in rubber, with a further tough, yet flexible, neoprene rubber
sheath surrounding both cables from damage. Both H05RN-F and H05RR-F are ideal for 12v outdoor applications due
to them being both water resistant and oil resistant (one type supplied), however, please note this cable is not
armoured so position with care.

0.75mm cables are suited to shorter cable runs up to 15-20m when used with LEDs to avoid voltage drop – for larger cable
runs, please see our 1.5mm 2 core cable.

• Reel Size: 100m

• Core Cable: 2x 0.75mm² (12v) – Rubber
• Conductor: Copper
• Overall Diameter of Cable: 6.4mm
• Sheath: Neoprene (Rubber)
• Sheath Thickness: 0.6 – 1mm
• Operating Temperature Range: -30°C to +60°C
• Voltage: 500V Max. (Suitable for use with 12v Lighting Systems)
• Additional Info: VDE Approved, RoHS Compliant
